1
Engine displacement
925
2
Year
2019
3
Trim
RZR XP 4 TURBO
4
Parts Catalog
ENGINE, AIR INTAKE MANIFOLD
5

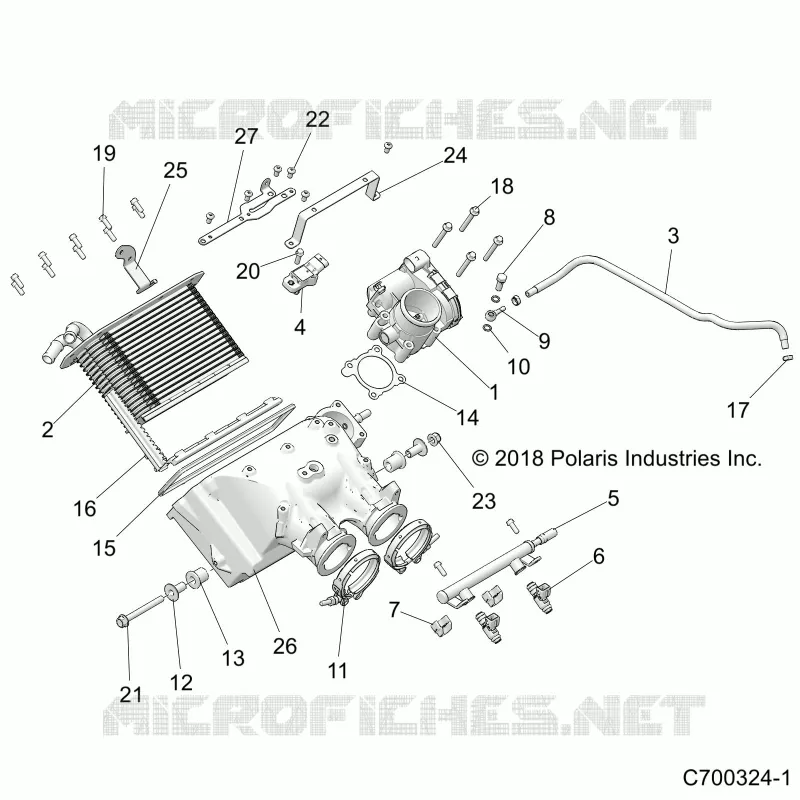

Parts Diagram
Parts Catalog
ENGINE, AIR INTAKE MANIFOLD
by
ENGINE, AIR INTAKE SYSTEM
ENGINE, AIR INTAKE MANIFOLD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
ELEC THROTTLE CONTROL THROTTLE 46MM
1204455
$997,49 Unit Price incl. VAT
2
LCAC CORE
1240930
$803,24 Unit Price incl. VAT
3
ASM-HOSE REFERENCE;48CM
1241347
$23,09 Unit Price incl. VAT
4
3 BAR TMAP SENSOR
2413095
$167,99 Unit Price incl. VAT
5
FUEL RAIL ASSEMBLY
2522004
$388,49 Unit Price incl. VAT
6
INJECTOR-FUEL 570G 3.8BAR
2521914
$141,74 Unit Price incl. VAT
7
INJECTOR CLIP
2521515
$17,84 Unit Price incl. VAT
8
BANJO BOLT; 8 MM X 1 MM
2521519
$19,94 Unit Price incl. VAT
9
BANJO FITTING; 8 MM
2521520
$57,74 Unit Price incl. VAT
10
WASHER-M8 AL
2521527
$9,44 Unit Price incl. VAT
11
CLAMP-VBAND INTAKE
3022888
$89,24 Unit Price incl. VAT
12
COMPRESSION LIMITER
3022994
$14,69 Unit Price incl. VAT
13
ISOLATOR
5415637
$5,24 Unit Price incl. VAT
14
GASKET
5813735
$20,99 Unit Price incl. VAT
15
SEAL-LCAC TOP
5814277
$20,99 Unit Price incl. VAT
16
SEAL-LCAC SIDE BTM REAR
5814370
5814884
$89,24 Unit Price incl. VAT
17
CLAMP-OETIKER 16700005-10.0
7082109
$7,34 Unit Price incl. VAT
18
SCR-M6X1.0X50.0 HX/FL-YD (10)
7517932
$7,34 Unit Price incl. VAT
19
HEX FLANGE SCREW; 6 MM X 16 MM
7518548
$3,14 Unit Price incl. VAT
20
HEX FLANGE SCREW; 6 MM X 20 MM
7518576
$6,29 Unit Price incl. VAT
21
SCR-M8X1.25X75 8.8 HX/FL ZOD
7518955
$6,29 Unit Price incl. VAT
22
SCR-TXBH-M6X1.0X12 8.8 ZPB D20
7519063
$6,29 Unit Price incl. VAT
23
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
24
INJECTOR HARNESS MOUNT BRACKET; BLACK
5260975329
Not Available
25
FUEL LINE MOUNT BRACKET; BLACK
5261651329
Not Available
26
ASM-MANIFOLD VBAND EVAP
3023522
$456,74 Unit Price incl. VAT
27
HARNESS BRACKET
5262111
$52,49 Unit Price incl. VAT

Find the detailed ENGINE, AIR INTAKE MANIFOLD POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
