Parts Catalog
DRIVE TRAIN, FRONT PROP SHAFT
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT GEARCASE
by
DRIVE TRAIN, REAR HALF SHAFT (TO 4/25/16)
DRIVE TRAIN, FRONT PROP SHAFT
1
PROP SHAFT ASSEMBLY
1333193
$456,74 Unit Price incl. VAT
2
1000 SERIES U-JOINT
3235500
$114,44 Unit Price incl. VAT
3
SLIP YOKE
3235501
$246,74 Unit Price incl. VAT
4
PROPSHAFT WELD
1333192
9999999
Not Available
5
LUBRICATION FITTING
7080424
$9,44 Unit Price incl. VAT
6
PIN YOKE
3235502
$230,99 Unit Price incl. VAT
7
SPRING PIN
7661913
$7,34 Unit Price incl. VAT

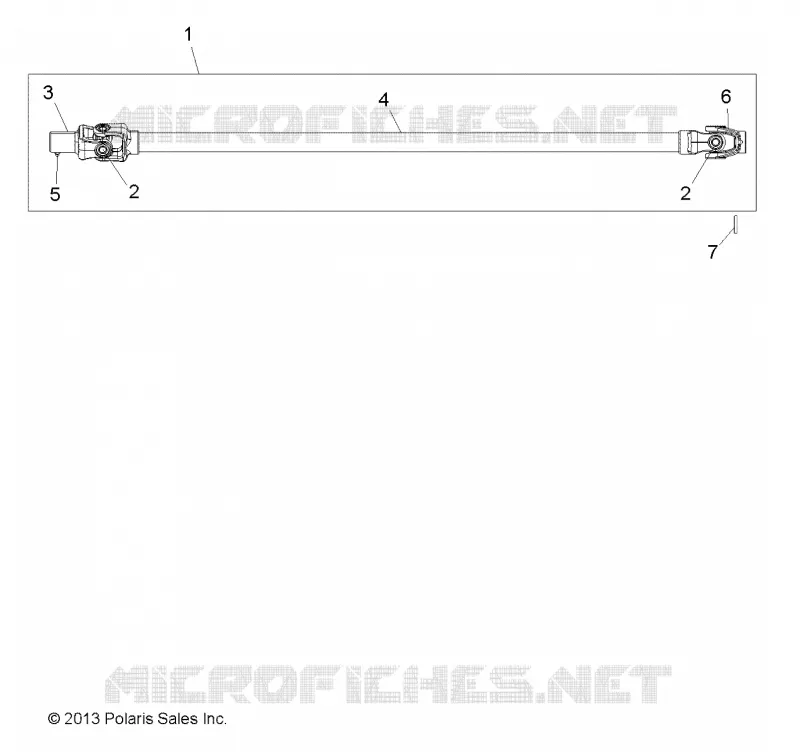

Find the detailed DRIVE TRAIN, FRONT PROP SHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
