Engine displacement
570
2
Year
2016
3
Trim
ACE 570 EFI
4
Parts Catalog
DOORSS (BUILT 10/2/15 AND AFTER)
5
Parts Diagram
Parts Catalog
by
HOOD AND FRONT BODY WORK
DOORSS (BUILT 10/2/15 AND AFTER)
1
WELD-BOLSTER LH ACE BLK
1021748458
Not Available
2
WELD-BOLSTER RH ACE BLK
1021749458
Not Available
3
WELD-BRKT MT DR LTCH LH BLK
1021750458
Not Available
4
WELD-BRKT MT DR LTCH RH BLK
1021751458
Not Available
5
ASM-LATCH DOOR LH
2635305
2637286
$141,74 Unit Price incl. VAT
6
FRONT LEFT HAND DOOR FRAME; MATTE BLACK
5257929458
Not Available
7
LEFT HAND DOOR SKIN
5450636
$241,49 Unit Price incl. VAT
8
TORX SCREW; #14 X 3/4
7519045
$6,29 Unit Price incl. VAT
9
SCR-TXBH-M6X1.0X12 8.8 ZPB D20
7519063
$6,29 Unit Price incl. VAT
10
ASM-LATCH DOOR RH
2635306
2637287
$141,74 Unit Price incl. VAT
11
RIGHT HAND DOOR FRAME; MATTE BLACK
5257930458
Not Available
12
RIGHT HAND DOOR SKIN
5450638
$241,49 Unit Price incl. VAT
13
MACH-CLAMP INSIDE DOOR ACE
5140136
$94,49 Unit Price incl. VAT
13
MACH-CLAMP DOOR ACE
5140310
9999999
Not Available
14
DOOR PIVOT BUSHING
5450592
$5,24 Unit Price incl. VAT
15
SCREW
7517361
$41,99 Unit Price incl. VAT
16
SCR-TXTH-M8X1.25X20 8.8 BLK
7519997
$7,34 Unit Price incl. VAT
17
DOOR HINGE PIN
7662138
$8,39 Unit Price incl. VAT
18
E CLIP 6 MM
7710466
$6,29 Unit Price incl. VAT
19
SCR-TXTH-M8X1.25X60 ZB
7520367
$9,44 Unit Price incl. VAT
20
NUT-M8X1.25 HXFLG NYLON INS
7547317
7548028
$5,24 Unit Price incl. VAT
21
HEX FLANGE SCREW; 8 MM X 1.25 MM X 25 MM
7519243
$7,34 Unit Price incl. VAT

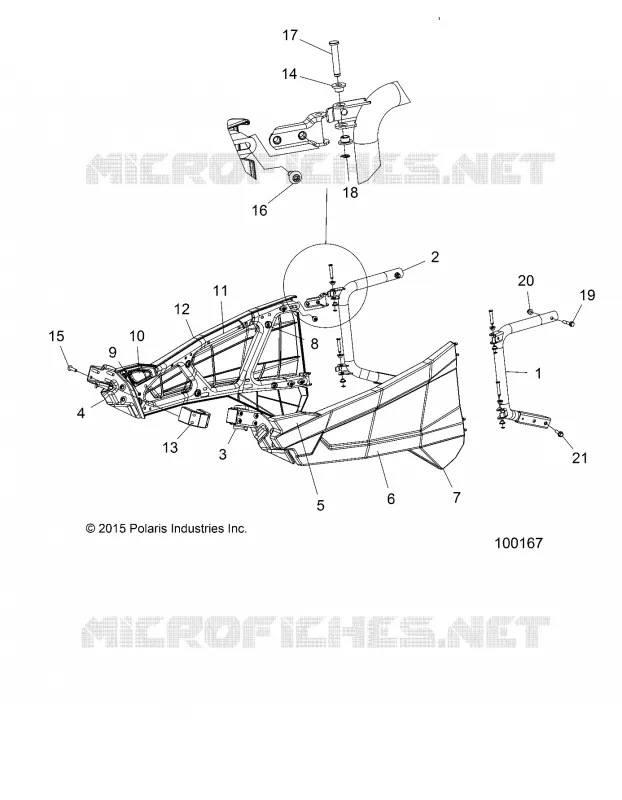

Find the detailed DOORSS (BUILT 10/2/15 AND AFTER) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
