LOWER STEERING for POLARIS 600 SWITCHBACK / ES from 2013

LOWER STEERING

1

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

2

FLAT WASHER

7555806

$1,56 Unit Price incl. VAT

3

ROD END; RIGHT; 10 MM X 26.5 MM; 70 DEG

7061166

$104,99 Unit Price incl. VAT

4

NUT-M10X1.5 ZOD

7547430

9999999

Not Available

5

TIE ROD

5336578

$52,49 Unit Price incl. VAT

6

NUT-M10X1.5 LH ZOD

7547431

$6,29 Unit Price incl. VAT

7

ROD END; LEFT; 10 MM X 23 MM; 75 DEG

7061165

$104,99 Unit Price incl. VAT

8

SCR-M10X1.5X90 HX FLG ZOD

7519016

$11,54 Unit Price incl. VAT

9

SCR-M10X1.5X35 TX/TRUSS ZOD

7519017

$13,64 Unit Price incl. VAT

10

LINK-RACK FIXED 10.33

7061176

9999999

Not Available

11

DRAGLINK ASSEMBLY; FIXED

1823392

$173,24 Unit Price incl. VAT

12

PITMAN ARM ASSEMBLY

1823417

9999999

Not Available

13

ASM-IDLER ARM

1823686

9999999

Not Available

14

BUSHING-REDUCER 12MM TO 10.5MM

5136662

$11,54 Unit Price incl. VAT

15

BALL BEARING

3514320

$27,29 Unit Price incl. VAT

16

SPACER-TUBE PITMAN/IDLER ARMS

5135452

9999999

Not Available

17

BRUSHING SPACER

5137796

$7,34 Unit Price incl. VAT

18

STEERING POST BUSHING

5438492

$11,54 Unit Price incl. VAT

19

HEX FLANGE SCREW; 8 MM X 1.25 MM X 55 MM

7519242

$9,44 Unit Price incl. VAT

20

TIE ROD BOOT ASSEMBLY; RIGHT

2634231

$73,49 Unit Price incl. VAT

20

TIE ROD BOOT ASSEMBLY; LEFT

2634230

$73,49 Unit Price incl. VAT

21

SCR-TXTH-M6X1.0X15 ZPB TAP

7519092

$2,09 Unit Price incl. VAT

22

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

23

TUBE PLUG

7081210

$7,34 Unit Price incl. VAT

24

E-RING

7710901

$15,74 Unit Price incl. VAT

25

BALL BEARING

3514320

$27,29 Unit Price incl. VAT

26

STUD-SPACER M10X1.5 8.8 ZOD

7519163

$58,58 Unit Price incl. VAT

27

RING-RET INT 1.125

7710642

$4,19 Unit Price incl. VAT

28

TIE ROD BOOT BUSHING

5439309

$20,99 Unit Price incl. VAT

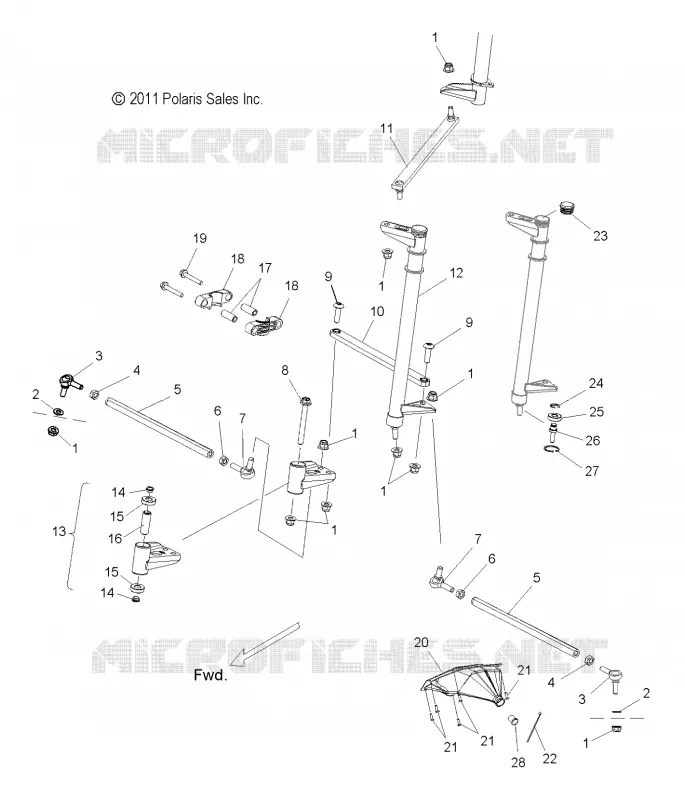

Find the detailed LOWER STEERING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
