BODY, BACKREST ASM. for POLARIS 550 WIDETRAK LX ES from 2019

BODY, BACKREST ASM.

1

ASM-BACKREST COVER;BLK

2688095

9999999

Not Available

1

ASM-BUN BACKREST SVC

2685283

9999999

Not Available

2

BOLT-M8X1.25X20 CARR-OLIVE D

7518564

$9,44 Unit Price incl. VAT

3

PLATE-BACKREST

5256121

9999999

Not Available

4

BACKREST TUBE; MATTE BLACK

1018760458

Not Available

5

BUSHING-TORSION BAR

5437423

5439731

$12,59 Unit Price incl. VAT

6

STEERING BUSHING BRACKET; UPPER

5257028

$62,99 Unit Price incl. VAT

7

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

8

CLAMP-TUBE UPPER

5138000

9999999

Not Available

9

RUBBER BUSHING; LNR ANCHOR

5413887

$6,29 Unit Price incl. VAT

10

LOCK AND RIDE ANCHOR BUSHING SNOW

5439062

$7,34 Unit Price incl. VAT

11

WASHER-.325X1.38X.093 FL-RIE

7556732

$7,34 Unit Price incl. VAT

12

STUD-BACKREST M8 (LONG)

5138003

$89,24 Unit Price incl. VAT

13

HANDLE-L N R ANCHOR;BLK

5450370

$52,49 Unit Price incl. VAT

14

DOWEL PIN; 5/32 IN X 7/8 IN

7661970

$3,14 Unit Price incl. VAT

15

BACKREST STUD; 8 MM

5138004

$36,74 Unit Price incl. VAT

16

ADJUSTING ARM MOUNT

5436635

9999999

Not Available

17

RATCHET CYLINDER

5135462

$136,49 Unit Price incl. VAT

18

SPRING LOCK WASHER

7552603

$1,56 Unit Price incl. VAT

18

SCR-3/8-16X.75 HXSOC;W/PATCH

7518798

$6,29 Unit Price incl. VAT

19

HEX HEAD NUT; 8 MM

7547076

$4,19 Unit Price incl. VAT

20

SCR-HXFL-M6X1.0X55 8.8 ZOD

7519171

7521331-55

$10,49 Unit Price incl. VAT

21

NUT-HEX-M6X1.0 8 ZOD NYL

7547505

$4,19 Unit Price incl. VAT

22

TUBE CLAMP ASSEMBLY; LOWER

1018761

9999999

Not Available

23

SCR-RHCAR-M6X1.0X16 8.8 ZOD

7519588

9999999

Not Available

24

ASM-ADJ BCKRST BUN W/COVER;WT

2688094458

Not Available

25

BACKREST STUD; 12 MM

5138005

$72,96 Unit Price incl. VAT

26

WASHER

7555721

$2,09 Unit Price incl. VAT

27

NUT-M12X1.5 HXJM ZOD

7547428

$18,89 Unit Price incl. VAT

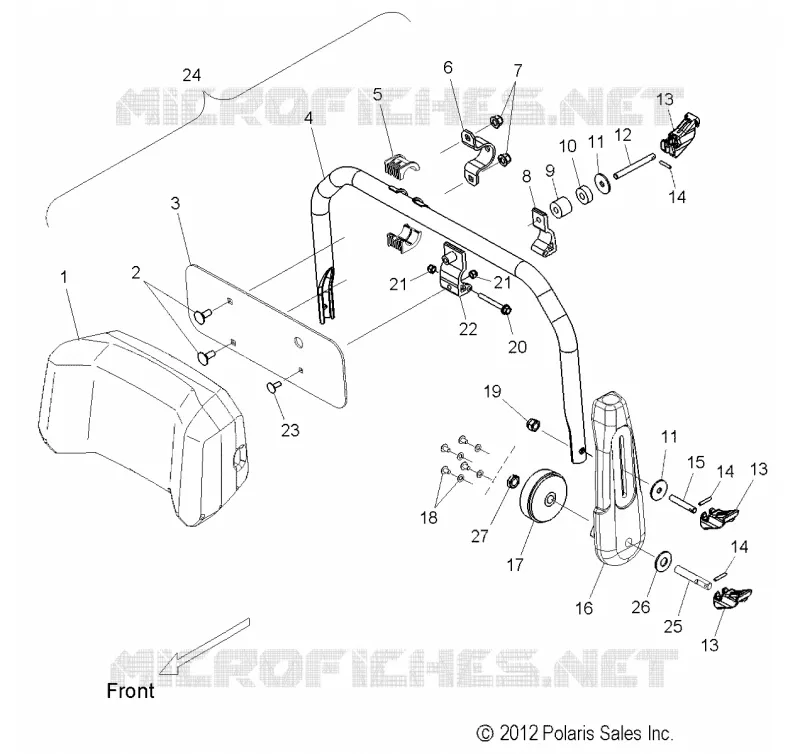

Find the detailed BODY, BACKREST ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
