BACKREST GRABHANDLE, PASSENGER for POLARIS 600 IQ LXT from 2014

BACKREST GRABHANDLE, PASSENGER

1

ASM-BACKREST COVER

2685396

9999999

Not Available

1

ASM-BUN BACKREST SVC

2685283

9999999

Not Available

2

BOLT-M8X1.25X20 CARR-OLIVE D

7518564

$9,44 Unit Price incl. VAT

3

PLATE-BACKREST

5256121

9999999

Not Available

4

BACKREST TUBE; MEDIUM GLOSS BLACK

1018760067

Not Available

5

BUSHING-UPPER STEERING;1 IN

5438903

5439731

$12,59 Unit Price incl. VAT

6

STEERING BUSHING BRACKET; UPPER

5257028

$62,99 Unit Price incl. VAT

7

NUT-M12X1.5 HXJM ZOD

7547428

$18,89 Unit Price incl. VAT

8

CLAMP-TUBE UPPER

5138000

9999999

Not Available

9

RUBBER BUSHING; LNR ANCHOR

5413887

$6,29 Unit Price incl. VAT

10

LOCK AND RIDE ANCHOR BUSHING SNOW

5439062

$7,34 Unit Price incl. VAT

11

WASHER-.325X1.38X.093 FL-RIE

7556732

$7,34 Unit Price incl. VAT

12

STUD-BACKREST M8 (LONG)

5138003

$89,24 Unit Price incl. VAT

13

HANDLE-L N R ANCHOR;BLK

5450370

$52,49 Unit Price incl. VAT

14

DOWEL PIN; 5/32 IN X 7/8 IN

7661970

$3,14 Unit Price incl. VAT

15

BACKREST STUD; 8 MM

5138004

$36,74 Unit Price incl. VAT

16

ADJUSTING ARM MOUNT

5436635

9999999

Not Available

17

RATCHET CYLINDER

5135462

$136,49 Unit Price incl. VAT

18

HEX HEAD NUT; 8 MM

7547076

$4,19 Unit Price incl. VAT

19

SCR-HXFL-M6X1.0X55 8.8 ZOD

7519171

7521331-55

$10,49 Unit Price incl. VAT

20

NUT-HEX-M6X1.0 8 ZOD NYL

7547505

$4,19 Unit Price incl. VAT

21

TUBE CLAMP ASSEMBLY; LOWER

1018761

9999999

Not Available

22

SCR-RHCAR-M6X1.0X16 8.8 ZOD

7519588

9999999

Not Available

23

SCR-3/8-16X.625 TX/TRUSS;GR5-Y

7518651

9999999

Not Available

23

SPRING LOCK WASHER

7552603

$1,56 Unit Price incl. VAT

24

BRACKET-MOUNT BLK

5256123067

Not Available

25

RIVET

7661637

$2,09 Unit Price incl. VAT

26

GRABHANDLE BUSHING

5435997

$7,34 Unit Price incl. VAT

27

TOURING GRAB HANDLE; RIGHT; BLACK

1018766067

Not Available

27

TOURING GRAB HANDLE; LEFT; BLACK

1018765067

Not Available

28

PASSENGER GRIP HEATER; 12.25 IN

2412365

9999999

Not Available

29

PLUG

5431096

$3,66 Unit Price incl. VAT

30

GRIP-HANDLEBAR LONG BLK

5450061070

Not Available

31

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

32

DEFLECTOR-WIND PASSENGER LH

5436778

9999999

Not Available

32

DEFLECTOR-WIND PASSENGER RH

5436779

9999999

Not Available

33

RIVET

7621472

$2,09 Unit Price incl. VAT

34

GRAB HANDLE KNOB ASSEMBLY

2632756

9999999

Not Available

35

TUBE GRABHANDLE

1014908

9999999

Not Available

36

BACKREST STUD; 12 MM

5138005

$72,96 Unit Price incl. VAT

37

WASHER

7555721

$2,09 Unit Price incl. VAT

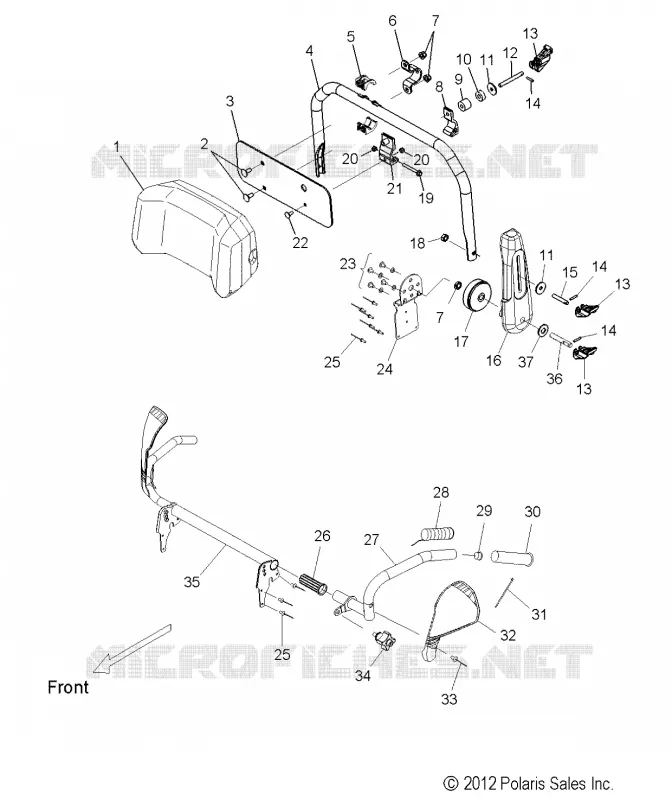

Find the detailed BACKREST GRABHANDLE, PASSENGER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
