WINCH for POLARIS SPORTSMAN EPS 550 - A10ZX55AL/AT/AX from 2010

WINCH

1

WINCH-BASIC 2500LB SEALED

5632233

9999999

Not Available

2

FAIRLEAD ROLLER POLARIS WINCH

2875997

9999999

Not Available

3

ASM-HOOK & LATCHWINCH

2410934

9999999

Not Available

4

CABLE POLARIS WINCH

2876000

9999999

Not Available

5

CONTACTOR POLARIS WINCH

2876657

9999999

Not Available

6

SCREW

7515179

$4,19 Unit Price incl. VAT

7

WELD-WINCH MOUNTBLK

1015802067

Not Available

8

BOLT-M8X1.25X25 HXFLG-OLIVE D

7518514

$3,14 Unit Price incl. VAT

9

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518702

$7,34 Unit Price incl. VAT

10

SCR-M6X1.0X40 HX/SOC/CP-B

7518780

$7,34 Unit Price incl. VAT

11

SWITCH-HANDLEBAR WINCH

4011732

9999999

Not Available

12

SPACER .277 X .375 X .330

5334334

9999999

Not Available

13

BRKT-SWITCH WINCH

5250830

9999999

Not Available

14

BATTERY HARNESS WINCH

2411214

9999999

Not Available

15

BOLT-CARRIAGE 2500 & 3500

2876801

9999999

Not Available

16

NUT-NYLOCK 2500 & 3500

2876802

9999999

Not Available

17

BOOT-CABLE WINCH

5438054

9999999

Not Available

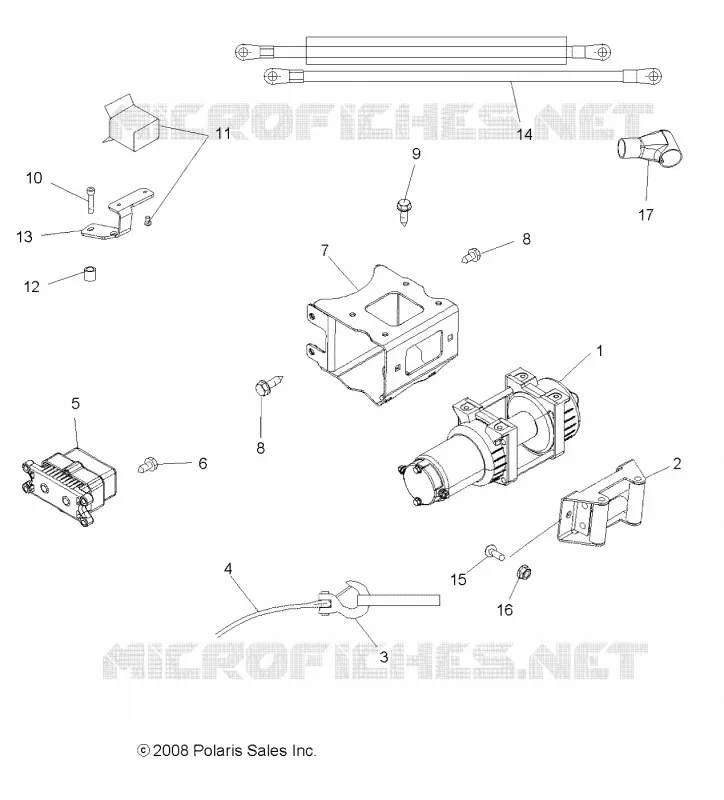

Find the detailed WINCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
