1
Engine displacement
500
2
Year
2007
3
Trim
PREDATOR 500/LE - A07GJ50AA/AB/AC
4
Parts Catalog
FRONT SUSPENSION
5
Parts Diagram
Parts Catalog
LOWER STEERING
by
REAR SWING ARM
FRONT SUSPENSION
1
1
2
2
3
3
4
5
5
6
6
7
8
9
9
10
10
11
12
12
13
13
13
14
14
15
15
16
16
16
17
18
18
19
19
20
21
21
22
1
2
2
2
3
4
1
WELD-A-ARM.UPPER RH SLVR
1015713385
Not Available
1
WELD-A-ARM UPPER LH SLVR
1015712385
Not Available
2
BALL JOINT; 12 MM X 1.50 MM
7061141
$73,49 Unit Price incl. VAT
3
EXTERNAL RETAINER RING
7710533
$4,19 Unit Price incl. VAT
4
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
5
WELD-A-ARM LOWER LH SLVR
1015710385
Not Available
5
WELD-A-ARM LOWER RH SLVR
1015711385
Not Available
6
STEERING KNUCKLE ASSEMBLY; RIGHT
1822878
9999999
Not Available
6
ASM-STEERING KNUCKLELH
1822877
9999999
Not Available
7
GUARD-DISC INNER
5435727
9999999
Not Available
8
SCR-#10-24 SHLDR-TORX-Y
7518441
9999999
Not Available
9
NUT-M12X1.5 CASTLE-OLIVE D
7547336
$20,99 Unit Price incl. VAT
10
WASHER-.937X.501X.031 OLIVE D
7556376
$6,29 Unit Price incl. VAT
11
PIN-COTTER(10)
7661205
$1,56 Unit Price incl. VAT
12
SHOCK-FRONT ARVIN TWIN TUBE
7043258
9999999
Not Available
13
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
14
SHOCK SLEEVE
5334876
$29,39 Unit Price incl. VAT
15
BOLT-M10X1.25X50 HXFLG-OLIVE D
7518559
$10,49 Unit Price incl. VAT
16
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
17
COMPRESSION SPRING INDY RED
7043133293
Not Available
18
SPRING-COMP 140#/IN INDY RED
7043092293
Not Available
19
SHOCK-FOX PIGGYBACK STEEL
7043191
9999999
Not Available
20
BOLT-M10X1.25X90 HXFLG-OLIVE D
7518664
$13,64 Unit Price incl. VAT
21
A-ARM BUSHING
5434575
9999999
Not Available
22
A-ARM SHAFT
5135270
$26,24 Unit Price incl. VAT

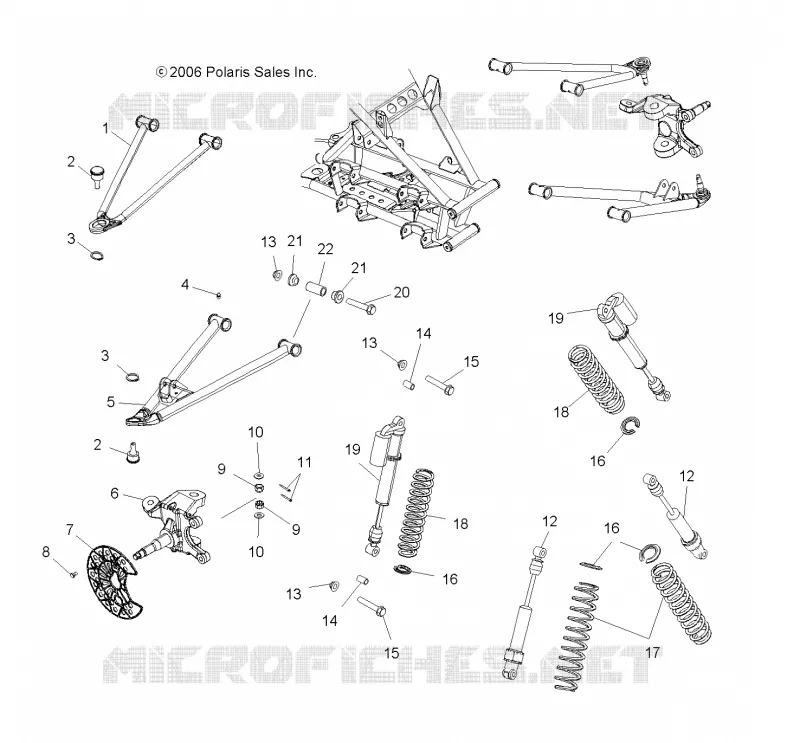

Find the detailed FRONT SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
