CHASSIS, BULKHEAD ASM. for POLARIS 850 SWITCHBACK XC 146 from 2022

BRAKES, BRAKE SYSTEM

CHASSIS, CHASSIS ASM. AND OVER STRUCTURE

CHASSIS, BULKHEAD ASM.

-

LORD 406 REPAIR KIT; 50 ML

2204171

2830614

$517,64 Unit Price incl. VAT

-

MIXING NOZZLES KIT

2204172

2830615

$14,69 Unit Price incl. VAT

-

ADJESIVE CARTRIDGE KIT

2204400

672204400

Not Available

1

CROSSOVER TUBE; EXTRUDED

5140781

$173,24 Unit Price incl. VAT

2

ASM-BRKT IDLER TOP

1026546

$47,24 Unit Price incl. VAT

3

BULKHEAD FLOOR

5256849

$47,24 Unit Price incl. VAT

4

WHEEL STUD; 8 MM X 1.25 MM X 48

7519204

$36,74 Unit Price incl. VAT

4

CLIP W/ STUD ASSEMBLY; LEFT

1023153

1028706

$461,99 Unit Price incl. VAT

5

RIVET

7661637

$2,09 Unit Price incl. VAT

6

CL8.8 OLV-D

7518906

$6,29 Unit Price incl. VAT

7

SCR-TXTH-M8X1.25X20 8.8 ZODP30

7519260

$11,54 Unit Price incl. VAT

8

ASM-NUT PLATE JACKSHFT TP/CO

1024312

$36,74 Unit Price incl. VAT

9

SCR-M5X0.8X12 10.9 TX/BH ZPC

7520967

$7,34 Unit Price incl. VAT

10

MOUNT-JACKSHAFT BEARING MACH

5144103

$47,24 Unit Price incl. VAT

11

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

12

BRACE ASSEMBLY; LOWER; LEFT

1023784

$209,99 Unit Price incl. VAT

13

BOLT-M6X1.0X15 PH/TX-OLIVE D

7518656

$7,34 Unit Price incl. VAT

14

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$11,54 Unit Price incl. VAT

15

MOUNT-STEERING LOWER MACH

5138449

$26,24 Unit Price incl. VAT

16

SCR-TXTH-M6X1.0X15 ZPB TAP

7519092

$2,09 Unit Price incl. VAT

17

SCREW

7516732

$3,14 Unit Price incl. VAT

18

WHEEL STUD; 8 MM X 1.25 MM X 48

7519204

$36,74 Unit Price incl. VAT

18

CLIP WITH STUD ASSEMBLY; RIGHT

1023783

$503,99 Unit Price incl. VAT

19

INTERMEDIATE CHAINCASE ASSEMBLY

1333119

$390,59 Unit Price incl. VAT

20

SCR-TXTH M8X1.25X35 8.8ZOD P80

7519049

$13,64 Unit Price incl. VAT

21

NUT-HEX-M6X1.0 8 ZOD NYL

7547505

$4,19 Unit Price incl. VAT

22

WASHER-6.2X14.25X2 ZC

7556588

$4,19 Unit Price incl. VAT

23

ASM-STUD PLATE M6X4

1020927

$52,49 Unit Price incl. VAT

24

BULKHEAD COOLER ASSEMBLY

1241329

$860,99 Unit Price incl. VAT

25

TUNNEL CLOSEOFF; FRONT; MACHINED

5139282

$208,94 Unit Price incl. VAT

26

DART CLIP

7670067

$7,34 Unit Price incl. VAT

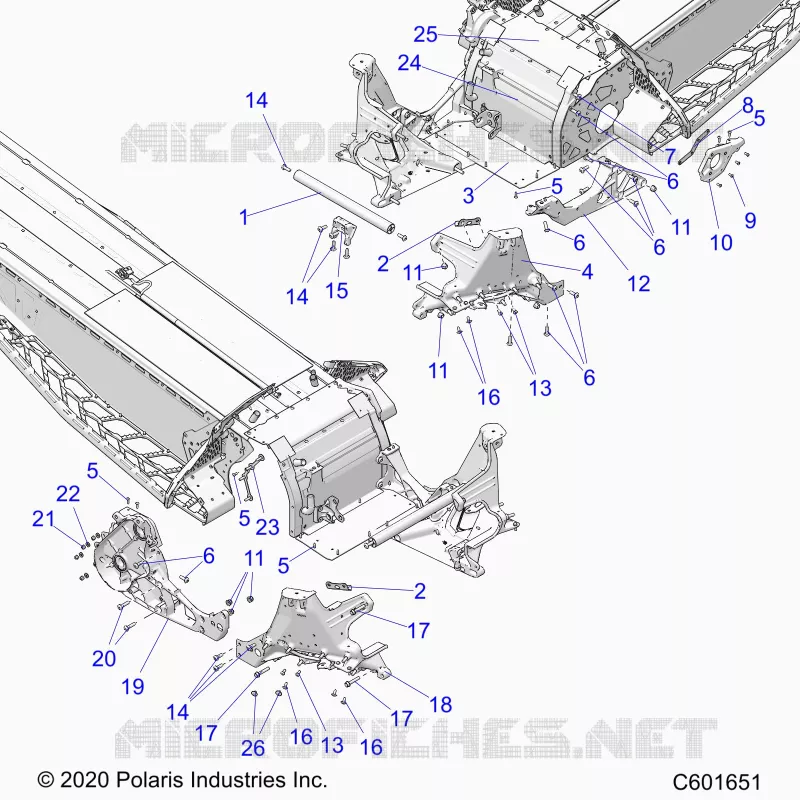

Find the detailed CHASSIS, BULKHEAD ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
