1
Engine displacement
500
2
Year
1992
3
Trim
FIN 500 SKS - F920574
4
Parts Catalog
COOLING SYSTEM 500 SP/500 SKS (4921262126037A)
5
Parts Diagram
Parts Catalog
WIRING HARNESS 500 SP/500 SKS (4921262126036A)
by
THROTTLE BODY 500 SP/500 SKS (4921262126043A)
COOLING SYSTEM 500 SP/500 SKS (4921262126037A)
1
EXT COOLING LH
2511181
Not Available
2
EXT COOLING RH
2511182
Not Available
3
RIVET; (MONOBOLT)
7661620
7661637
$2,09 Unit Price incl. VAT
4
GUARD COOLING EXT
5240101
9999999
Not Available
5
BOTTLE; OVERFLOW
5431054
9999999
Not Available
6
FUEL LINE-50FT.PKG.
2870563
8450003-1525
$136,49 Unit Price incl. VAT
7
GASKET
5810279
$4,19 Unit Price incl. VAT
8
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
9
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
10
HOSE-CROSSOVER
5410324
9999999
Not Available
11
HOSE
5410398
Not Available
12
HOSE-CROSSOVER
5410350
9999999
Not Available
13
HOSE RETAINER SPRING
7041079
9999999
Not Available
14
CLIP
7080277
9999999
Not Available
15
CLAMP-HOSE
7080225
9999999
Not Available
16
CLAMP-HOSE;
7080233
9999999
Not Available
17
HOSE-INLET
5410323
9999999
Not Available
18
EDGE TRIM; 6 FT; BLACK
5521131
9999999
Not Available
19
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
20
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
21
ROSEBUD CLIP
4020139
$9,44 Unit Price incl. VAT
22
BOLT
7512240
9999999
Not Available
24
CENTER COOLING EXTERNAL
2511187
9999999
Not Available
25
GROMMET RUBBER
5410021
9999999
Not Available
26
BRACKET
5223985
Not Available
27
CHECK VALVE
7052038
$20,99 Unit Price incl. VAT
28
FITTING OUTLET
7052042
$13,64 Unit Price incl. VAT
29
FILTER WATER LINE
2530010
9999999
Not Available
30
CLAMP-HOSE
7080134
9999999
Not Available
31
PLUG
5431096
$3,66 Unit Price incl. VAT

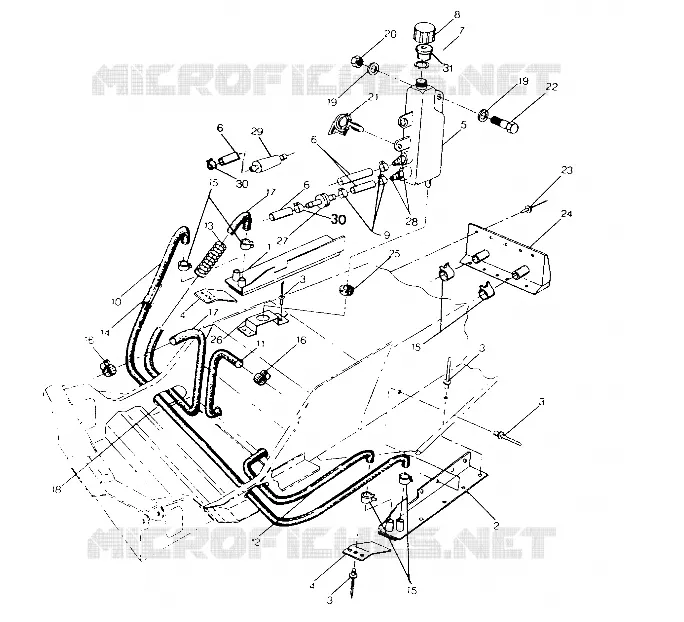

Find the detailed COOLING SYSTEM 500 SP/500 SKS (4921262126037A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
