1
Engine displacement
925
2
Year
2020
3
Trim
RZR XP 4 TURBO
4
Parts Catalog
REAR SUSPENSION CONTROL ARMS
5
Parts Diagram
Parts Catalog
STEERING
by
REAR SUSPENSION SHOCK MOUNTING
REAR SUSPENSION CONTROL ARMS
1
1
2
2
3
4
5
6
7
7
7
8
9
9
10
10
11
12
13
14
15
15
16
1
TRAILING ARM; LEFT; INDY RED
1019356293
Not Available
1
TRAILING ARM; LEFT HAND; MATTE BLACK
1019356458
Not Available
2
TRAILING ARM; RIGHT SIDE; MATTE BLACK
1019357458
Not Available
2
RIGHT TRIALING ARM; INDY RED
1019357293
Not Available
3
SPHERICAL BEARING; 0.625
3514689
$68,24 Unit Price incl. VAT
4
REDUCER BUSHING; 12 MM
5336751
$12,59 Unit Price incl. VAT
5
SCR-HXFL-M10X1.25X75 10.9 ZOD
7519286
$13,64 Unit Price incl. VAT
6
HEX FLANGE SCREW; 12 MM X 1.5 MM; 60 MM
7519138
$17,84 Unit Price incl. VAT
7
NUT 12MM X 1.5MM
7547334
$9,44 Unit Price incl. VAT
8
RETAINING RING
7710437
$5,76 Unit Price incl. VAT
9
RADIUS ROD ASSEMBLY; BOTTOM; MATTE BLACK
1544029458
Not Available
9
RADIUS ROD ASSEMBLY; BOTTOM; INDY RED
1544029293
Not Available
10
RADIUS ROD ASSEMBLY; MATTE BLACK
1544030458
Not Available
10
RADIUS ROD ASSEMBLY; INDY RED
1544030293
Not Available
11
PLATE-REAR BOLT BRACE M.BLK
5262630458
Not Available
12
HEX FLANGE SCREW 12 MM X 1.5 MM X 105 MM
7520479
$13,64 Unit Price incl. VAT
13
HEX FLANGE SCREW; 12 MM X 1.5 MM X 65 MM
7520477
$6,08 Unit Price incl. VAT
14
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
15
WASHER 13 X 2.5
7556287
$13,64 Unit Price incl. VAT
16
WASHER
7556153
$3,66 Unit Price incl. VAT

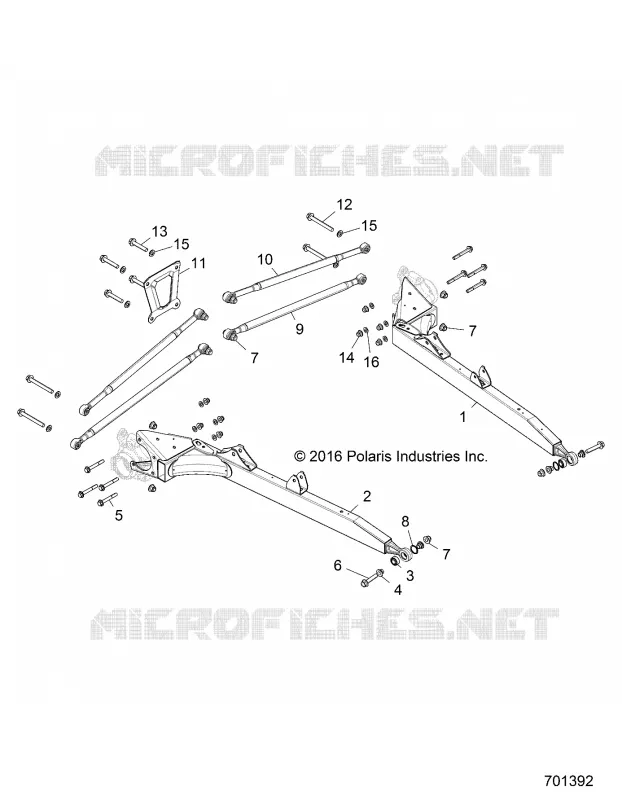

Find the detailed REAR SUSPENSION CONTROL ARMS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
