COOLING SYSTEM for POLARIS RANGER 400 HO - R11RH45AG/AH/AR from 2011

COOLING SYSTEM

1

CLAMP-HOSE 13/16 -1 1/2

7081174

$13,64 Unit Price incl. VAT

2

HOSE-ENG OUT;RAD IN

5413740

$136,49 Unit Price incl. VAT

3

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

4

HOSE-RAD OUT;ENG IN

5413739

5414536

$167,99 Unit Price incl. VAT

5

OVERFLOW CAP

5430743

$10,49 Unit Price incl. VAT

6

FLEX CONDUIT; 1.250 I.D X 15 CM

552128715

Not Available

7

SCREW 1/4-20 X .75 TORX

7518280

$2,09 Unit Price incl. VAT

8

CLIP-COOLANT ROUTING

5438331

9999999

Not Available

9

EDGE TRIM-BLACK; 6 CM

836001206

Not Available

10

PRESSURE CAP

1240300

$73,49 Unit Price incl. VAT

11

RADIATOR-FLAT

1240528

1240721

$913,49 Unit Price incl. VAT

12

RADIATOR MOUNT BUSHING; LOWER

5410584

$10,49 Unit Price incl. VAT

13

FAN ASSEMBLY

2410865

$289,79 Unit Price incl. VAT

14

GROMMET AND INSERT ASSEMBLY

5413155

$7,34 Unit Price incl. VAT

15

SCREW

7515179

$4,19 Unit Price incl. VAT

16

VALVE-PLASTIC RAD/COOLER DRAIN

7052410

$52,49 Unit Price incl. VAT

17

FAN SHROUD

5436852

9999999

Not Available

18

SCREW M6 X 1.0; L-20MM

7516822

$4,19 Unit Price incl. VAT

19

U CLIP; 6.0 MM X 1.0 MM

7547366

$9,44 Unit Price incl. VAT

20

GASKET

5810279

$4,19 Unit Price incl. VAT

21

FUEL LINE; 1/4 ID

84500031525

Not Available

22

FITTING 90 DEGREE

7052065

$13,64 Unit Price incl. VAT

23

SCREW

7512084

$2,09 Unit Price incl. VAT

24

BRKT-SURGE TANK

5246873

9999999

Not Available

25

SURGE TANK

5436936

$152,24 Unit Price incl. VAT

26

CAP PLUG9X(GRN) FLEX TEMP(10)

5433774

$10,49 Unit Price incl. VAT

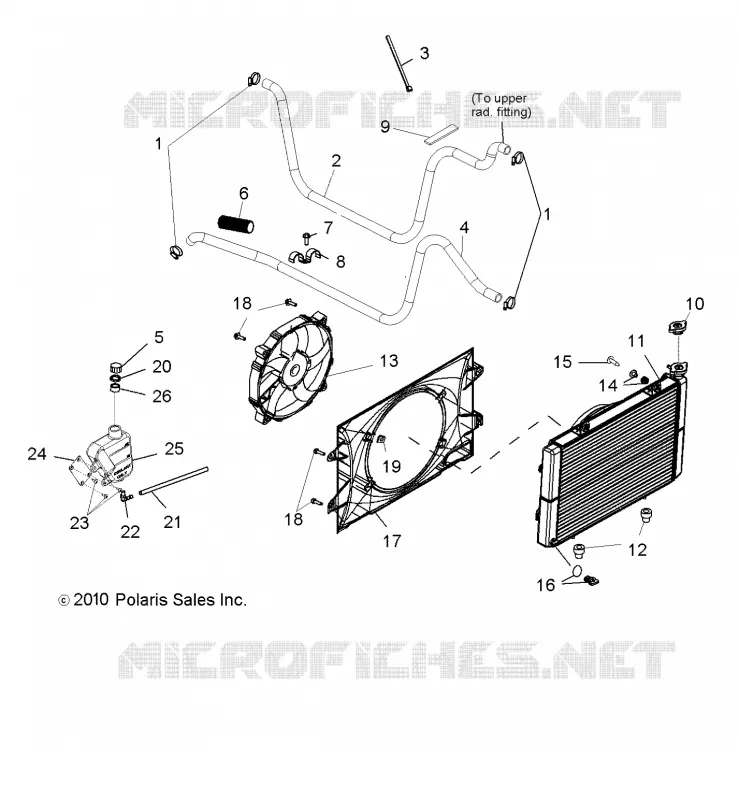

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
