1
Engine displacement
550
2
Year
2016
3
Trim
550 INDY ADVENTURE 144
4
Parts Catalog
CYLINDER
5
Parts Diagram
Parts Catalog
TOOL KIT AND OWNERS MANUAL
by
EXHAUST
CYLINDER
1
1
2
3
4
4
5
5
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
15
16
17
18
1
FLANGE BOLT
3084271
7521357
$4,19 Unit Price incl. VAT
2
CYLINDER HEAD
3088215
3023391
$451,49 Unit Price incl. VAT
3
GASKET HEAD
3085704
3023392
$57,74 Unit Price incl. VAT
4
GASKET EXHAUST
3085714
9999999
Not Available
5
FLANGE NUT
3082911
7547013
$3,14 Unit Price incl. VAT
6
COVER CYL.BAFFLE
3085692
5416455
$13,64 Unit Price incl. VAT
7
KONIG CYLINDER
3090388
9999999
Not Available
8
CYLINDER BASE GASKET RP
3090411
2209316
$194,24 Unit Price incl. VAT
9
PAN HEAD SCREW
3081497
9999999
Not Available
10
O-RING
3085619
5418045
$36,74 Unit Price incl. VAT
11
SOCKET HEAD BOLT
3081330
9999999
Not Available
12
ADAPTER ASSEMBLY
3085670
5416456
$157,49 Unit Price incl. VAT
13
BAND ADAPTER ASSEMBLY
3090180
7082340
$36,74 Unit Price incl. VAT
14
SCREW & WASHER ASM.
3085717
9999999
Not Available
15
STOPPER
3086387
3023395
Not Available
16
VALVE REED
3085715
3023394
$68,24 Unit Price incl. VAT
17
VALVE REED ASSEMBLY
3086386
9999999
Not Available
18
PLATE
3085718
9999999
Not Available

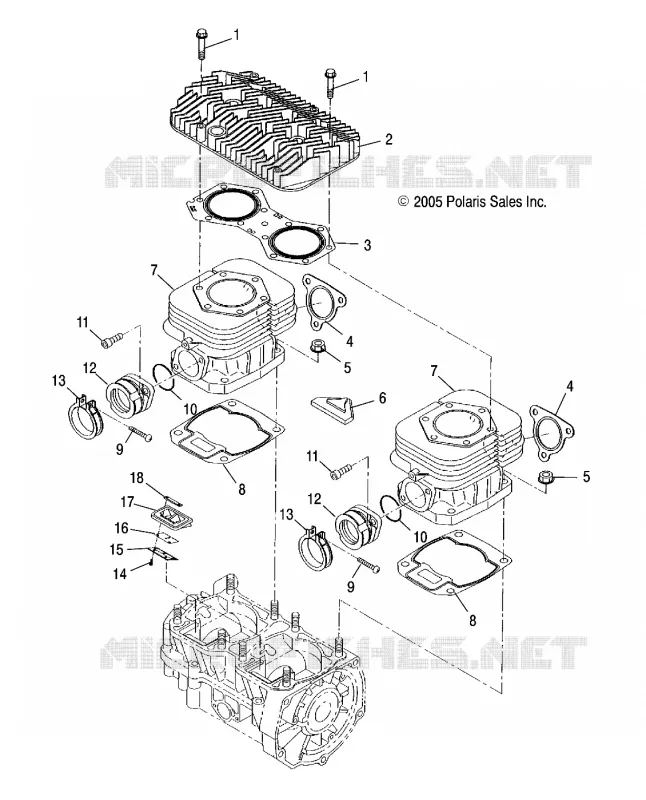

Find the detailed CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
