Engine displacement
570
2
Year
2016
3
Trim
SPORTSMAN 570 EFI UTE MD
4
Parts Catalog
ENGINE, STATOR COVER AND FLYWHEEL
5
Parts Diagram
Parts Catalog
TAIL LIGHTS
by
THERMOSTAT and COVER
ENGINE, STATOR COVER AND FLYWHEEL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
12
19
1
2
2
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
12
19
1
2
3
4
4
5
6
7
8
8
9
10
10
11
12
13
13
14
15
16
17
12
19
1
WASHER-19X34X3 HARD
7556878
$7,34 Unit Price incl. VAT
2
IGNITION COVER KIT
2205170
$629,99 Unit Price incl. VAT
2
IGNITION COVER WITH FITTING ASSEMBLY
3022724
5144584
$115,49 Unit Price incl. VAT
3
FLYWHEEL; 660W
4015259
4014688
$297,14 Unit Price incl. VAT
4
WATEPRUMP SHAFT BEARING
3514696
3515828
$17,63 Unit Price incl. VAT
5
WATER PUMP SHAFT SEAL
3610173
3610435
$30,44 Unit Price incl. VAT
6
STATOR; 660 W
4014839
$965,99 Unit Price incl. VAT
7
PUMP DRIVER SHAFT
5138035
$73,49 Unit Price incl. VAT
8
GUIDE-STATOR LEAD
5254832
$15,74 Unit Price incl. VAT
9
TYPE S SEAL
5411197
$41,99 Unit Price incl. VAT
10
SCR-M6X1.0X40 HX/SOC/CP-Y/D
7510005
$9,44 Unit Price incl. VAT
11
SCR-M5X0.8X10 SOC/CP-D
7517847
$5,76 Unit Price incl. VAT
12
HEX FLANGE SCREW; 6 MM X 20 MM
7518576
$6,29 Unit Price incl. VAT
13
STATOR COVER GASKET; SILICONE
5415086
$73,49 Unit Price incl. VAT
14
HEX NUT JAM; RIGHT; 18 MM X 1.5 MM
7547488
$13,64 Unit Price incl. VAT
15
ASM-COVER ENGINE INTER MAG
3022723
2212487
Not Available
16
DWL-HOL M8X10
7661977
$15,74 Unit Price incl. VAT
17
INTERMEDIATE COVER GASKET
5415085
$73,49 Unit Price incl. VAT
18
HEX FLANGE SCREW; 6 MM X 20 MM
7518576
$6,29 Unit Price incl. VAT
19
SCR-HXFL-M6X1.0X45 8.8 ZY3D204
7519209
$7,34 Unit Price incl. VAT

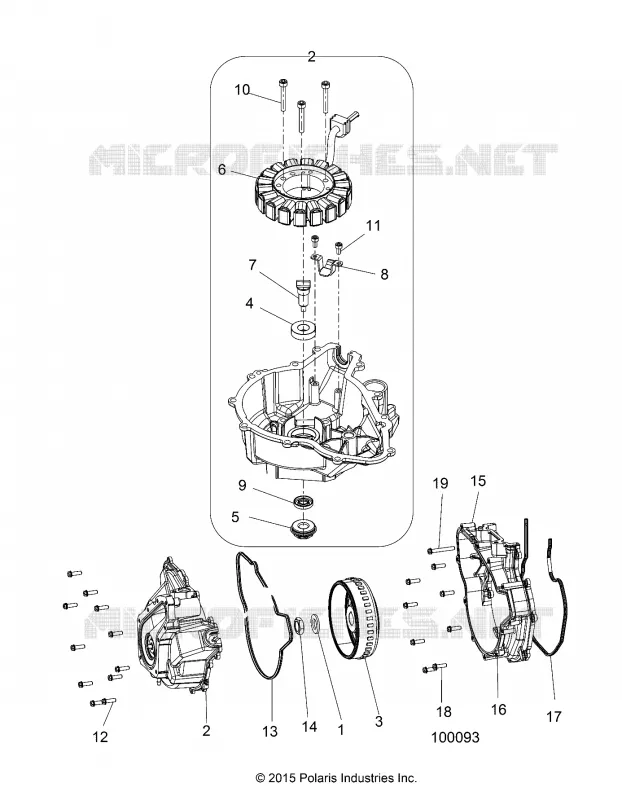

Find the detailed ENGINE, STATOR COVER AND FLYWHEEL POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
