CHASSIS, BULKHEAD ASM. for POLARIS 550 VOYAGEUR 155 ES from 2019

CHASSIS, BULKHEAD ASM.

-

LORD 406 REPAIR KIT; 50 ML

2204171

2830614

$517,64 Unit Price incl. VAT

-

MIXING NOZZLES KIT

2204172

2830615

$14,69 Unit Price incl. VAT

-

ADJESIVE CARTRIDGE KIT

2204400

672204400

Not Available

1

SCREW

7516732

$3,14 Unit Price incl. VAT

2

DART CLIP

7670067

$7,34 Unit Price incl. VAT

3

ASM-CLIP F/C RACK STEER RH

1020266

$509,24 Unit Price incl. VAT

4

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$11,54 Unit Price incl. VAT

5

BRKT-LWR SUPPORT;RESONATOR

5255064

$73,49 Unit Price incl. VAT

6

HEX FLANGE SCREW; 8 MM X 1.25 MM X 25 MM

7519243

$7,34 Unit Price incl. VAT

7

CL8.8 OLV-D

7518906

$6,29 Unit Price incl. VAT

8

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

9

BRACE LOWER RIGHT MACHINED

5138693

$167,99 Unit Price incl. VAT

10

FLOOR-BULKHEAD VENTED

5256779

$47,24 Unit Price incl. VAT

11

FLOOR VENT

5256780

$83,99 Unit Price incl. VAT

12

RIVET

7661637

$2,09 Unit Price incl. VAT

13

BRACE LOWER LEFT ASSEMBLY

1017942

$125,99 Unit Price incl. VAT

14

ASM-CLIP F/C RACK STEER LH

1020265

$509,24 Unit Price incl. VAT

15

BRKT-PIPE/CHASSIS

5252680

$10,49 Unit Price incl. VAT

16

WHEEL STUD; 8 MM X 1.25 MM X 48

7519204

$36,74 Unit Price incl. VAT

17

BOLT-M6X1.0X15 PH/TX-OLIVE D

7518656

$7,34 Unit Price incl. VAT

18

ASM-SUPPORT BRKT;PITMAN/IDLER

1020246

$26,24 Unit Price incl. VAT

19

SCR-M10X1.5X25-8.8 HFS ZOD

7518934

$7,34 Unit Price incl. VAT

20

TUBE-CROSS M10X1.5 377.44MM

5137910

$99,74 Unit Price incl. VAT

21

RIVET 4.8 MM

7661973

$2,09 Unit Price incl. VAT

22

CLOSE OFF-BULKHD;F/C

5137715

9999999

Not Available

23

SCR-M8X1.25X30 8.8 TR/TX ZOD

7518953

$3,14 Unit Price incl. VAT

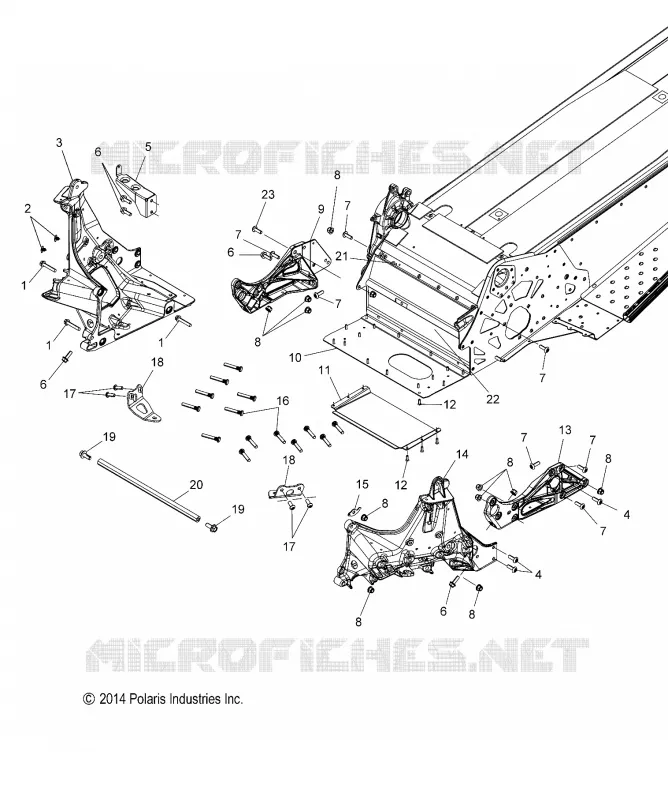

Find the detailed CHASSIS, BULKHEAD ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
