1
Engine displacement
800
2
Year
2014
3
Trim
SPORTSMAN 800 EFI 6X6 - A14CF76AA
4
Parts Catalog
ENGINE, MOUNTING
5
Parts Diagram
Parts Catalog
LONG BLOCK
by
OIL PUMP AND WATER PUMP
ENGINE, MOUNTING
1
2
2
2
2
3
4
4
5
5
6
7
7
8
4
10
11
12
13
14
15
16
17
18
19
2
1
SHOULDER SCREW
3131515
9999999
Not Available
2
NYLOK NUT
7547263
$6,29 Unit Price incl. VAT
3
ENGINE MOUNT; LOWER; FRONT; GS BLK
5244771067
Not Available
4
WASHER
7555823
$7,34 Unit Price incl. VAT
5
ISOLATOR-3/8-24M/M 60DURO
3022071
3024012
$83,99 Unit Price incl. VAT
6
BRKT-TORQUE STOP PLTD
5245043
9999999
Not Available
7
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
8
BOLT-3/8-16X7/8 HEX FLANGE GR5
7518364
$3,14 Unit Price incl. VAT
9
WASHER
7555823
$7,34 Unit Price incl. VAT
10
ISOLATOR
3022076
9999999
Not Available
11
CABLE-BLK (BATTERY/FRAME)COM
4011139
9999999
Not Available
12
CLAMP NARROW BAND
7080909
$14,69 Unit Price incl. VAT
13
BOOT-CLUTCH INTAKE;2.25 I.D.
5412634
9999999
Not Available
14
SCREW
7516734
$5,76 Unit Price incl. VAT
15
BRKT-MNT ENGINE TOP PLTD
5247368
9999999
Not Available
16
CHECK VALVE
7052038
$20,99 Unit Price incl. VAT
17
HOSE-3/16 EPDM; 04 CM
845011304
Not Available
18
GUIDE THROTTLE CABLE
3131514
3130543
$62,99 Unit Price incl. VAT
19
O-RING COVER AND ASSEMBLY
1202578
9999999
Not Available
20
NYLOK NUT
7547263
$6,29 Unit Price incl. VAT

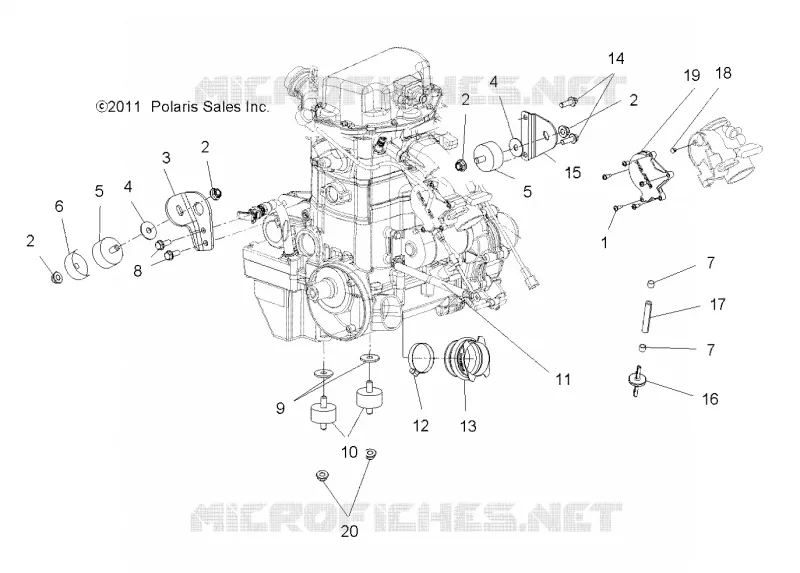

Find the detailed ENGINE, MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for SPORTSMAN 800 EFI 6X6 - A14CF76AA

DUMP BOX

DUMP BOX

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

DUMP BOX LEVER SHOCK MOUNTING

DUMP BOX LEVER SHOCK MOUNTING

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

FRONT BUMPER AND MOUNTING

FRONT BUMPER AND MOUNTING

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

CABIN SIDE PANELS

CABIN SIDE PANELS

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

BRAKE LINES

BRAKE LINES

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

FRONT BRAKE BRAKE LEVER AND LH MASTER CYLINDER

FRONT BRAKE BRAKE LEVER AND LH MASTER CYLINDER

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

FRONT BRAKE CALIPER

FRONT BRAKE CALIPER

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

REAR BRAKE CALIPERS

REAR BRAKE CALIPERS

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

BRAKES, RIGHT HAND MASTER CYLINDER

BRAKES, RIGHT HAND MASTER CYLINDER

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, GEAR SELECTOR

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

DRIVE TRAIN, MAIN GEARCASE

DRIVE TRAIN, MAIN GEARCASE

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

DRIVE TRAIN, MAIN GEARCASE INTERNAL

DRIVE TRAIN, MAIN GEARCASE INTERNAL

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

DRIVE TRAIN, MAIN GEARCASE OUTPUT SHAFT

DRIVE TRAIN, MAIN GEARCASE OUTPUT SHAFT

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

DRIVE TRAIN, REAR DRIVE SHAFT

DRIVE TRAIN, REAR DRIVE SHAFT

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

DRIVE TRAIN, REAR GEARCASE INTERNALS

DRIVE TRAIN, REAR GEARCASE INTERNALS

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

DRIVE TRAIN, REAR GEARCASE MOUNTING

DRIVE TRAIN, REAR GEARCASE MOUNTING

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

DRIVE TRAIN, REAR PROP SHAFT

DRIVE TRAIN, REAR PROP SHAFT

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

SWITCHES AND SENSORS AND ECM

SWITCHES AND SENSORS AND ECM

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

TAIL LIGHTS

TAIL LIGHTS

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

ENGINE, AIR INTAKE SYSTEM

ENGINE, AIR INTAKE SYSTEM

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

CAMSHAFT GEARS

CAMSHAFT GEARS

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

ENGINE, CRANKSHAFT AND BALANCE SHAFT

ENGINE, CRANKSHAFT AND BALANCE SHAFT

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

DIPSTICK OIL FILTER

DIPSTICK OIL FILTER

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

EXHAUST

EXHAUST

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

ENGINE, FUEL INJECTOR

ENGINE, FUEL INJECTOR

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

ENGINE, STARTING MOTOR

ENGINE, STARTING MOTOR

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

THROTTLE BODY MOUNTING

THROTTLE BODY MOUNTING

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

VALVES

VALVES

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

OWNERS MANUAL

OWNERS MANUAL

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

FRONT SUSPENSION STRUT

FRONT SUSPENSION STRUT

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

REAR SUSPENSION

REAR SUSPENSION

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

TORSION BAR

TORSION BAR

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

TOOL KIT

TOOL KIT

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

CLUTCH COVER

CLUTCH COVER

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

DECALS

DECALS

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

FUEL TANK ASM.

FUEL TANK ASM.

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

HEADLIGHT POD

HEADLIGHT POD

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

REAR CAB SEAT

REAR CAB SEAT

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

FRONT STORAGE BOX

FRONT STORAGE BOX

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

CHASSIS, FRAME

CHASSIS, FRAME

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

DRIVE TRAIN, FRONT DRIVE SHAFT

DRIVE TRAIN, FRONT DRIVE SHAFT

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

DRIVE TRAIN, FRONT GEARCASE AND MOUNTING

DRIVE TRAIN, FRONT GEARCASE AND MOUNTING

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

DRIVE TRAIN, FRONT PROP SHAFT

DRIVE TRAIN, FRONT PROP SHAFT

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

DRIVE TRAIN, MID GEARCASE INTERNALS

DRIVE TRAIN, MID GEARCASE INTERNALS

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

DRIVE TRAIN, MID GEARCASE MOUNTING

DRIVE TRAIN, MID GEARCASE MOUNTING

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

DRIVE TRAIN, MID PROP SHAFT

DRIVE TRAIN, MID PROP SHAFT

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, PRIMARY CLUTCH

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

DRIVE TRAIN, SECONDARY CLUTCH

DRIVE TRAIN, SECONDARY CLUTCH

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

BATTERY

BATTERY

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

BULBS

BULBS

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

GAUGES INDICATORS

GAUGES INDICATORS

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

WIRE HARNESSES

WIRE HARNESSES

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

HEADLIGHTS

HEADLIGHTS

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

COOLING SYSTEM

COOLING SYSTEM

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

COOLING SYSTEM THERMOSTAT

COOLING SYSTEM THERMOSTAT

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

CRANKCASE

CRANKCASE

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

LONG BLOCK

LONG BLOCK

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

ENGINE, MOUNTING

ENGINE, MOUNTING

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

OIL PUMP AND WATER PUMP

OIL PUMP AND WATER PUMP

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

PISTON CYLINDER

PISTON CYLINDER

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

CONTROLS THROTTLE ASM. AND CABLE

CONTROLS THROTTLE ASM. AND CABLE

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

STEERING, HANDLEBAR CONTROLS

STEERING, HANDLEBAR CONTROLS

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

STEERING POST

STEERING POST

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

SUSPENSION, A-ARM AND STRUT MOUNTING

SUSPENSION, A-ARM AND STRUT MOUNTING

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

WHEELS, FRONT

WHEELS, FRONT

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

WHEELS, REAR

WHEELS, REAR

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

DRIVE TRAIN, MAIN GEARCASE MOUNTING

DRIVE TRAIN, MAIN GEARCASE MOUNTING

for SPORTSMAN 800 EFI 6X6 - A14CF76AA from 2014

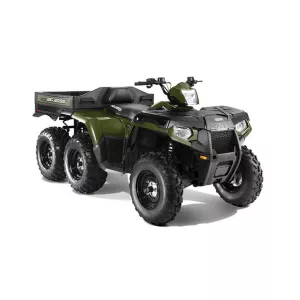

POLARIS SPORTSMAN 800 EFI 6X6 - A14CF76AA 2014
