Engine displacement
500
2
Year
2002
3
Trim
INT'L BIG BOSS 6X6 - A02CL50DA
4
Parts Catalog
REAR SWING ARM SHOCK
5
Parts Diagram
Parts Catalog
MIDDLE DRIVE ASSEMBLY
by
DRIVE CLUTCH
REAR SWING ARM SHOCK
1
1
2
3
3
4
5
6
7
7
8
9
9
10
11
12
12
12
13
13
13
13
14
14
15
16
17
17
18
18
19
19
20
21
22
23
24
25
26
1
1
2
3
3
4
5
6
7
7
8
9
9
10
11
12
12
12
13
13
13
13
14
14
15
16
17
17
18
18
19
19
20
21
22
23
24
25
26
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
2
SHOCK; REAR
7041963
9999999
Not Available
3
SCREW
7515415
9999999
Not Available
4
WASHER 2.085X2.88X.135
7556142
9999999
Not Available
5
CMPRSSN SPNG 210/250 14.2IN GS BLK
7041880067
Not Available
6
RETAINER SHOCK
5241147
5251753
$19,94 Unit Price incl. VAT
7
SCREW
7517386
$2,09 Unit Price incl. VAT
8
CHAIN COVER; REAR
5433539
9999999
Not Available
9
RIVET
7661637
$2,09 Unit Price incl. VAT
10
MOUNT-CHAIN COVER;FRONT;BLK
5244077067
Not Available
11
MOUNT-CHAIN COVERREARBLK
5244078067
Not Available
12
NUT FLANGE
7542522
$10,49 Unit Price incl. VAT
13
WASHER
7555883
$7,34 Unit Price incl. VAT
14
BOLT
7512576
9999999
Not Available
15
BOLT
7512520
$9,44 Unit Price incl. VAT
16
WELD-BRKT SWING ARM EXT BLK
1580067067
Not Available
17
BOLT
7515321
9999999
Not Available
18
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
19
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
20
LOWER EXT CHAIN GUARD;BLK
1013327067
Not Available
21
SCREW(10)
7515117
9999999
Not Available
22
CHAIN GUIDE; REAR
5521279
9999999
Not Available
23
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
24
KIT HITCH
2200472
9999999
Not Available
25
Decal Hitch
7078261
Not Available
26
EXTENDED SWING ARM
1541344067
Not Available

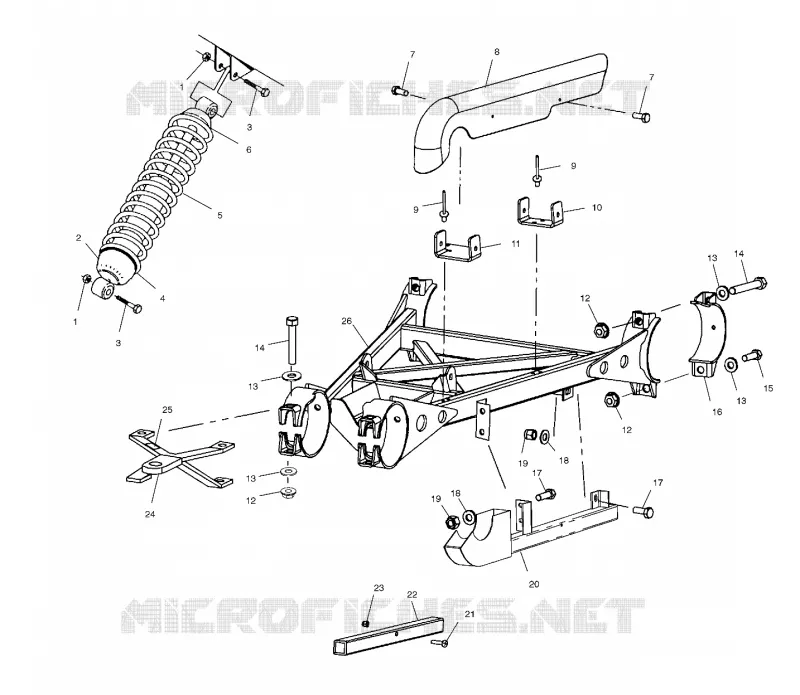

Find the detailed REAR SWING ARM SHOCK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
