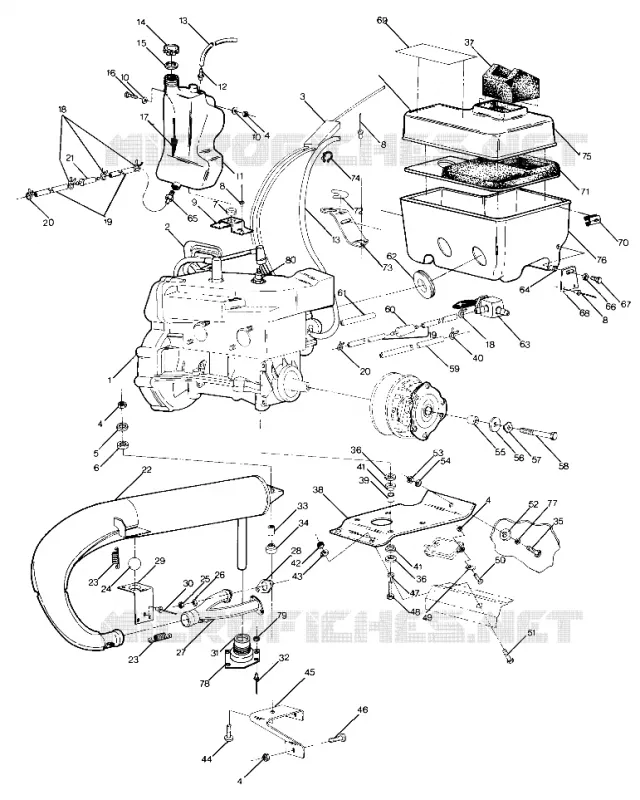

ENGINE MOUNTING SPORT AND SPORT GT (4915451545017A)
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION AND SKI SPORT AND SPORT GT (4915451545007A)
by
DRIVE CLUTCH SPORT AND SPORT GT (4915451545019A)
ENGINE MOUNTING SPORT AND SPORT GT (4915451545017A)
22
22
23
23
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
36
36
37
37
38
38
39
39
40
40
41
41
41
41
42
42
43
43
44
44
45
45
46
46
47
47
48
48
49
49
50
50
51
51
52
52
53
53
54
54
55
55
56
56
57
57
58
58
59
59
60
60
61
61
62
62
63
63
64
64
65
65
66
66
67
67
68
68
69
69
70
70
71
71
72
72
73
73
74
74
75
75
76
76
78
78
79
79
80
80
22
22
23
23
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
36
36
37
37
38
38
39
39
40
40
41
41
41
41
42
42
43
43
44
44
45
45
46
46
47
47
48
48
49
49
50
50
51
51
52
52
53
53
54
54
55
55
56
56
57
57
58
58
59
59
60
60
61
61
62
62
63
63
64
64
65
65
66
66
67
67
68
68
69
69
70
70
71
71
72
72
73
73
74
74
75
75
76
76
78
78
79
79
80
80
22
22
23
23
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
36
36
37
37
38
38
39
39
40
40
41
41
41
41
42
42
43
43
44
44
45
45
46
46
47
47
48
48
49
49
50
50
51
51
52
52
53
53
54
54
55
55
56
56
57
57
58
58
59
59
60
60
61
61
62
62
63
63
64
64
65
65
66
66
67
67
68
68
69
69
70
70
71
71
72
72
73
73
74
74
75
75
76
76
78
78
79
79
80
80
22
22
23
23
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
36
36
37
37
38
38
39
39
40
40
41
41
41
41
42
42
43
43
44
44
45
45
46
46
47
47
48
48
49
49
50
50
51
51
52
52
53
53
54
54
55
55
56
56
57
57
58
58
59
59
60
60
61
61
62
62
63
63
64
64
65
65
66
66
67
67
68
68
69
69
70
70
71
71
72
72
73
73
74
74
75
75
76
76
78
78
79
79
80
80
22
22
23
23
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
36
36
37
37
38
38
39
39
40
40
41
41
41
41
42
42
43
43
44
44
45
45
46
46
47
47
48
48
49
49
50
50
51
51
52
52
53
53
54
54
55
55
56
56
57
57
58
58
59
59
60
60
61
61
62
62
63
63
64
64
65
65
66
66
67
67
68
68
69
69
70
70
71
71
72
72
73
73
74
74
75
75
76
76
78
78
79
79
80
80
22
22
1
ENG EC34-2PM-03 [No Longer Available]
1211448
Not Available
2
HANDLE-RECOIL
5430520
Not Available
3
CABLE THROTTLE
7080332
9999999
Not Available
4
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
5
WASHER(10)
7558221
$4,19 Unit Price incl. VAT
6
WASHER RUBBER
5410436
9999999
Not Available
7
GROMMET RUBBER
5410021
9999999
Not Available
8
POP RIVET(10)
7621425
$2,09 Unit Price incl. VAT
9
BRACKET
5223985
Not Available
10
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
11
TANK OIL
5430921
9999999
Not Available
12
VENT-TANK
5430579
9999999
Not Available
13
KIT-TANK VENT
2200190
9990000
Not Available
14
CAP-OIL TANK [No Longer Available]
5430594
Not Available
15
OIL CAP GASKET
5810141
$4,19 Unit Price incl. VAT
16
SCREW
7512116
9999999
Not Available
17
DECAL OIL LEVEL [No Longer Available]
7072160
Not Available
18
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
19
FUEL LINE-50FT.PKG.
2870563
8450003-1525
$136,49 Unit Price incl. VAT
20
CLAMP-HOSE
7080134
9999999
Not Available
21
SMALL IN-LINE FILTER
2530009
$12,59 Unit Price incl. VAT
22
MUFFLER (SPORT) Substituted by 1260514-029
1260514
Not Available
23
SPRING RETURN EXHAUST
3081078
7041687
$12,59 Unit Price incl. VAT
24
EXHAUST MOUNT BALL
5430687
9999999
Not Available
25
NUT
3080285
9999999
Not Available
26
LOCK WASHER
3080530
9999999
Not Available
27
MANIFOLD
1260497
9999999
Not Available
28
GASKET COMPL. (EXHAUST) Substituted by 3083770
3082068
Not Available
29
SUPPORT MUFFLER Substituted by 1011601-067
1011601
Not Available
30
RIVET
7621429
$2,09 Unit Price incl. VAT
31
BOOT; EXHAUST
5410502
9999999
Not Available
32
RIVET
7621418
$2,09 Unit Price incl. VAT
33
BUSHING
5010192
$12,59 Unit Price incl. VAT
34
DAMPENER
5410241
5412508
$9,44 Unit Price incl. VAT
35
BOLT-CARRIAGE(10)
7515460
9999999
Not Available
36
CAP DAMPENER VIBRATION
5221901
9999999
Not Available
37
FOAM INTAKE
5810361
9999999
Not Available
38
PLATE MOTOR MT. [No Longer Available]
5220708
Not Available
39
BUSHING-MOTOR MT.
5010163
9999999
Not Available
40
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
41
DAMPNER-VIB.
5410320
9999999
Not Available
42
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
43
WASHER WROUGHT
7558403
$9,44 Unit Price incl. VAT
44
BOLT-CARRIAGE
7512275
9999999
Not Available
45
SUPPORT MUFFLER Substituted by 5220695-067
5220695
Not Available
46
CARRIAGE BOLT
7512193
$4,19 Unit Price incl. VAT
47
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
48
BOLT
7512515
9999999
Not Available
49
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
50
BOLT-CARRIAGE
7512263
9999999
Not Available
51
BOLT(10) Substituted by 7512457
7512491
Not Available
52
BUSHING
5020397
9999999
Not Available
53
NUT LOCK
7542403
9999999
Not Available
54
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
55
BUSHING
5430261
$13,64 Unit Price incl. VAT
56
WASHER
5210748
$7,34 Unit Price incl. VAT
57
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
58
BOLT
7512565
9999999
Not Available
59
HOSE;IMPULSE
5521132
9999999
Not Available
60
FUEL FILTER
2530008
9999999
Not Available
61
FUEL LINE3/16ID-2FT.
5521133
9999999
Not Available
62
BOOT
5410403
9999999
Not Available
63
FUEL SHUT OFF VALVE
7052039
9999999
Not Available
64
WELL NUT
7541923
$10,49 Unit Price incl. VAT
65
FITTING OUTLET
7052042
$13,64 Unit Price incl. VAT
66
WASHER
7552604
$3,14 Unit Price incl. VAT
67
SCREW
7512279
$1,56 Unit Price incl. VAT
68
BRKT INTAKE SILENCER [No Longer Available]
5210928
Not Available
69
DECAL SPEC(#88SPORT) [No Longer Available]
7072508
Not Available
70
AIR BOX CLIP
7670055
$11,54 Unit Price incl. VAT
71
BAFFLE ASSEMBLY
1253102
$120,74 Unit Price incl. VAT
72
DECAL SHUT-OFF VALVE [No Longer Available]
7072151
Not Available
73
BRKT AIR SILENCER BLK. Substituted by 5223973-067
5223973
Not Available
74
CLIP
7080278
9999999
Not Available
75
SILENCER COVRE
5430920
9999999
Not Available
76
SILENCER DRILLED
5430956
Not Available
78
HAT; EXHAUST
5431005
9999999
Not Available
79
WASHER 13/64X1/2X18GA FL-Y (10
7558212
$1,56 Unit Price incl. VAT
80
SPARK PLUG
3070165
$7,34 Unit Price incl. VAT

Find the detailed ENGINE MOUNTING SPORT AND SPORT GT (4915451545017A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for NOR SPORT - N890433

HOOD SPORT AND SPORT GT (4915451545003A)

HOOD SPORT AND SPORT GT (4915451545003A)

for NOR SPORT - N890433 from 1989

NOSEPAN Sport and Sport GT (4915451545005A)

NOSEPAN Sport and Sport GT (4915451545005A)

for NOR SPORT - N890433 from 1989

CONSOLE SPORT AND SPORT GT (4915451545006A)

CONSOLE SPORT AND SPORT GT (4915451545006A)

for NOR SPORT - N890433 from 1989

FRONT SUSPENSION AND SKI SPORT AND SPORT GT (4915451545007A)

FRONT SUSPENSION AND SKI SPORT AND SPORT GT (4915451545007A)

for NOR SPORT - N890433 from 1989

ENGINE MOUNTING SPORT AND SPORT GT (4915451545017A)

ENGINE MOUNTING SPORT AND SPORT GT (4915451545017A)

for NOR SPORT - N890433 from 1989

DRIVE CLUTCH SPORT AND SPORT GT (4915451545019A)

DRIVE CLUTCH SPORT AND SPORT GT (4915451545019A)

for NOR SPORT - N890433 from 1989

DRIVEN CLUTCH SPORT AND SPORT GT (4915451545020A)

DRIVEN CLUTCH SPORT AND SPORT GT (4915451545020A)

for NOR SPORT - N890433 from 1989

CRANKCASE SPORT AND SPORT GT (4915451545023A)

CRANKCASE SPORT AND SPORT GT (4915451545023A)

for NOR SPORT - N890433 from 1989

OIL PUMP SPORT AND SPORT GT (4915451545028A)

OIL PUMP SPORT AND SPORT GT (4915451545028A)

for NOR SPORT - N890433 from 1989

FUEL PUMP SPORT AND SPORT GT (4915451545029A)

FUEL PUMP SPORT AND SPORT GT (4915451545029A)

for NOR SPORT - N890433 from 1989

CARBURETOR SPORT AND SPORT GT DEALER MUST VERIFY JETTING CARBURETOR ASSE (4915451545030A)

CARBURETOR SPORT AND SPORT GT DEALER MUST VERIFY JETTING CARBURETOR ASSE (4915451545030A)

for NOR SPORT - N890433 from 1989

CHASSIS AND SEAT SPORT GT UPDATED 10/88 (4915451545031A)

CHASSIS AND SEAT SPORT GT UPDATED 10/88 (4915451545031A)

for NOR SPORT - N890433 from 1989

CHASSIS AND SEAT ALL SWEDISH INDY MODELS (4916051605003A)

CHASSIS AND SEAT ALL SWEDISH INDY MODELS (4916051605003A)

for NOR SPORT - N890433 from 1989

BRAKE CHAINCASE ALL SWEDISH INDY MODELS (4916051605005A)

BRAKE CHAINCASE ALL SWEDISH INDY MODELS (4916051605005A)

for NOR SPORT - N890433 from 1989

STEERING SPORT UPDATED 10/88 (4915451545009A)

STEERING SPORT UPDATED 10/88 (4915451545009A)

for NOR SPORT - N890433 from 1989

SUSPENSION SPORT (4915451545013A)

SUSPENSION SPORT (4915451545013A)

for NOR SPORT - N890433 from 1989

SUSPENSION SPORT GT UPDATED 10/88 (4915451545015A)

SUSPENSION SPORT GT UPDATED 10/88 (4915451545015A)

for NOR SPORT - N890433 from 1989

CYLINDER SPORT AND SPORT GT (4915451545024A)

CYLINDER SPORT AND SPORT GT (4915451545024A)

for NOR SPORT - N890433 from 1989

PISTON AND CRANKSHAFT SPORT AND SPORT GT (4915451545025A)

PISTON AND CRANKSHAFT SPORT AND SPORT GT (4915451545025A)

for NOR SPORT - N890433 from 1989

MAGNETO SPORT AND SPORT GT (4915451545026A)

MAGNETO SPORT AND SPORT GT (4915451545026A)

for NOR SPORT - N890433 from 1989

BLOWER HOUSING AND RECOIL STARTER SPORT AND SPORT GT (4915451545027A)

BLOWER HOUSING AND RECOIL STARTER SPORT AND SPORT GT (4915451545027A)

for NOR SPORT - N890433 from 1989

STEERING SPORT GT UPDATED 10/88 (4915451545033A)

STEERING SPORT GT UPDATED 10/88 (4915451545033A)

for NOR SPORT - N890433 from 1989

RACK Sport GT Updated 10/88 (4915451545035A)

RACK Sport GT Updated 10/88 (4915451545035A)

for NOR SPORT - N890433 from 1989

POLARIS NOR SPORT - N890433 1989

NOR SPORT - N890433

NOR SPORT - N890433

Model : OTHERS

Engine capacity : autre

Year : 1989

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
