1
ASM-CALIPER BRAKE RH 1.187
1911217
9999999
Not Available
2
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
3
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
4
CAP SCREW
7512365
$2,09 Unit Price incl. VAT
5
SEAL
5413212
9999999
Not Available
6
BANJO BOLT; 10 MM X 1.00
1910499
$10,49 Unit Price incl. VAT
7
ASM-CALIPER BRAKE LH 1.187
1911216
9999999
Not Available
8
LINE-BRAKE FT M/C TORR
1910979
9999999
Not Available
9
NYLOK FLANGED NUT
7542153
$3,14 Unit Price incl. VAT
10
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
11
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
12
ASM-RESERVOIR REAR BRAKE 2 EAR
1910982
9999999
Not Available
13
BOLT
7512240
9999999
Not Available
14
HOSE-RESERVOIR BRAKE 635MM
1911267635
Not Available
15
CLIP
7670102
$4,19 Unit Price incl. VAT
16
LINE-BRAKE; JB TO FT; M/C
1910980
$178,49 Unit Price incl. VAT
17
ASM-MASTER CYLDIRMC 3/4"
1911123
1913033
$257,24 Unit Price incl. VAT
18
SPRING-TORSION BRAKE
7043276
9999999
Not Available
19
WASHER
7555919
$7,34 Unit Price incl. VAT
20
PEDAL PIVOT BUSHING
5433189
$7,34 Unit Price incl. VAT
21
WELD-BRAKE ROD;BLK
1910919067
Not Available
22
COTTER PIN
7661401
$1,56 Unit Price incl. VAT
23
BOLT
7512130
$7,34 Unit Price incl. VAT
24
BANJO BOLT; 10 MM X 1.25-6G
1910958
$14,69 Unit Price incl. VAT
25
CLAMP RUBBER-COATED .562
7080573
$13,64 Unit Price incl. VAT
26
SCREW
7512084
$2,09 Unit Price incl. VAT
27
HOSE CLAMP
7080683
$4,19 Unit Price incl. VAT
28
CLAMP-HOSE .625 DIA VNL COATED
7080880
$10,49 Unit Price incl. VAT
29
SCREW
7517380
9999999
Not Available

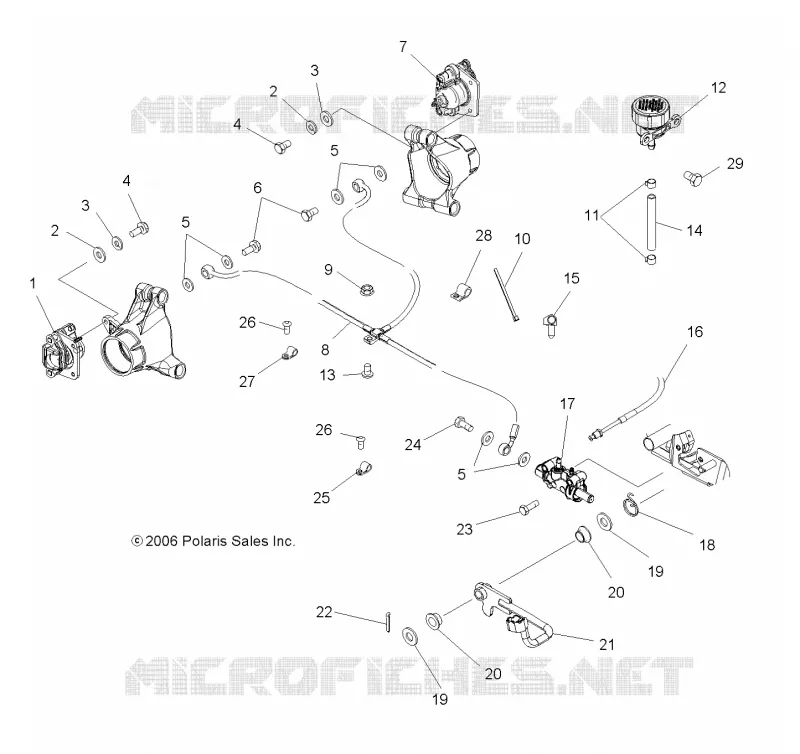

Find the detailed REAR BRAKE AND FOOT PEDAL POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
