Engine displacement
900
2
Year
2013
3
Trim
RZR 4 XP JAGGED X - R13XT9EAL
4
Parts Catalog
COOLING SYSTEM
5
Parts Diagram
Parts Catalog
ENGINE, BALANCER
by
COOLING, THERMOSTAT AND BYPASS
COOLING SYSTEM
14
15
16
17
17
17
17
18
19
20
21
22
23
24
25
26
27
28
29
29
29
29
29
30
31
32
1
RADIATOR ASSEMBLY; RZR XP
1240552
9999999
Not Available
2
FAN ASSEMBLY; CURVED BLADE; 12 IN
2411807
$493,49 Unit Price incl. VAT
3
GROMMET AND INSERT ASSEMBLY
5413509
$30,23 Unit Price incl. VAT
4
FAN SHROUD
5438591
9999999
Not Available
5
SCREW
7512084
$2,09 Unit Price incl. VAT
6
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
7
SCREW
7512095
$9,44 Unit Price incl. VAT
8
RADIATOR MOUNT BUSHING; LOWER
5410584
$10,49 Unit Price incl. VAT
9
TIE CABLE; 14 IN
7080761
$5,24 Unit Price incl. VAT
10
SCR-TFHFL-M6X1.0X25 ZOD
7519342
$3,14 Unit Price incl. VAT
11
CAP PLUG9X(GRN) FLEX TEMP(10)
5433774
$10,49 Unit Price incl. VAT
12
CLAMP HOSE SS
7080560
$20,99 Unit Price incl. VAT
13
BRKT-MNT COOLANT FILL
5255187
9999999
Not Available
14
SURGE TANK
5439004
9999999
Not Available
15
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
16
HOSE CLAMP; 25-40 MM
7081192
$14,69 Unit Price incl. VAT
17
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
18
FUEL LINE-66 CM
845012066
Not Available
19
PRESSURE CAP
1240300
$73,49 Unit Price incl. VAT
20
COOLANT TUBE ASSEMBLY
1240599
$388,49 Unit Price incl. VAT
21
BRKT-FUEL TANK MOUNT;CNTR;BLK
5254161329
Not Available
22
RADIATOR HOSE; UPPER
5414230
$173,24 Unit Price incl. VAT
23
ENGINE OUTLET HOSE; REAR
5414232
$141,74 Unit Price incl. VAT
24
ENGINE INLET HOSE; REAR
5414231
$83,99 Unit Price incl. VAT
25
LOWER HOSE; RAD; SHORT
5414233
$83,99 Unit Price incl. VAT
26
HOSE-LWR RAD LONG
5414234
$89,24 Unit Price incl. VAT
27
HOSE-LWR RAD FILL
5414235
9999999
Not Available
28
CONNECTOR-TEE 1 1 1 BARBED
7052373
$19,94 Unit Price incl. VAT
29
SPRINGBAND CLAMP; 35/12
7080844
$19,94 Unit Price incl. VAT
30
COOLANT REMOTE FILLER; SMALL
5439079
$62,99 Unit Price incl. VAT
31
GASKET
5810279
$4,19 Unit Price incl. VAT
32
CONDUIT FLEX 1.250ID
552128718
Not Available

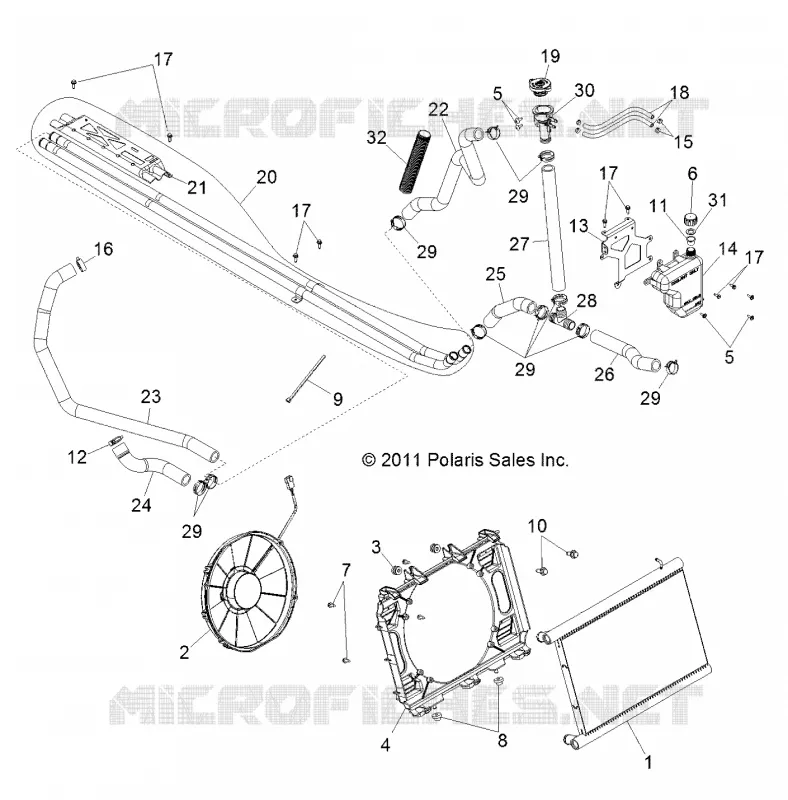

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
