1
Engine displacement
autre
2
Year
1997
3
Trim
LITE GT - 0973133
4
Parts Catalog
NOSEPAN CONSOLE LITE GT 0973133 AND EUROPEAN LITE GT E973133 (4938253825A007)
5
Parts Diagram
Parts Catalog
TUNNEL AND SEAT LITE GT 0973133 AND EUROPEAN LITE GT E973133 (4938253825A005)
by
HOOD LITE GT 0973133 AND EUROPEAN LITE GT E973133 (4938253825A009)
NOSEPAN CONSOLE LITE GT 0973133 AND EUROPEAN LITE GT E973133 (4938253825A007)
1
SWITCH TETHER
4110156
9999999
Not Available
2
SCREW(10)
7512018
$6,29 Unit Price incl. VAT
3
REGULATOR 14 VAC.LR-9
4060122
2203873
$188,99 Unit Price incl. VAT
4
HEAT SINK
5210650
9999999
Not Available
5
SEAL; O RING;
5410374
9999999
Not Available
6
LOUVER INTAKE
5431211070
Not Available
7
FOAM INTAKE
5810458
9999999
Not Available
8
DECAL FUEL SHUT-OFF(LITE) [No Longer Available]
7073124
Not Available
9
IGNITION SWITCH
4110038
9999999
Not Available
10
CABLE;CHOKE
7080661
9999999
Not Available
10
CHOKE CONTROL KIT
2200188
$52,49 Unit Price incl. VAT
11
CONSOLEBLK(94DLX.)
5431636
9999999
Not Available
12
SWITCH ROCKER W/INDIC.
4110195
9999999
Not Available
13
NUT-IGNITION SWITCH
7542807
9999999
Not Available
14
IGNITION KEY
5410378
9999999
Not Available
15
INDICATOR LOW-OIL WARN.
4040012
9999999
Not Available
16
INDICATOR ACC WARN.
4040014
9999999
Not Available
17
NUT-CHOKE SLIDE
7080229
$36,74 Unit Price incl. VAT
18
WASHER-LOCK
7571610
$7,34 Unit Price incl. VAT
19
SCREW
7512253
$7,34 Unit Price incl. VAT
20
WASHER
7555776
7558301
$2,09 Unit Price incl. VAT
21
RIVET (10)
7621336
$3,14 Unit Price incl. VAT
22
WASHER (10)
7555727
9999999
Not Available
23
CONSOLE INNER
5431214070
Not Available
24
STRAP TOOL COMPARTMENT
5410425
9999999
Not Available
25
SHIELD NOSEPAN DRAIN HOLE
5811078
9999999
Not Available
26
RIVET
7621467
$2,09 Unit Price incl. VAT
27
BRKT SUPPORT BLK.
5222356067
Not Available
28
BRKT RH BUMP.BRACE BLK.
5222346067
Not Available
28
BRKT LH BUMP.BRACE BLK.
5222345067
Not Available
29
RIVET
7621479
$3,66 Unit Price incl. VAT
30
TAPE FOIL
5810476
Not Available
31
NUT
7542124
7542122
$2,09 Unit Price incl. VAT
32
FLEXLOC NUT
7542103
$10,49 Unit Price incl. VAT
33
BRKTLH PANBRACEBLK.
5222339067
Not Available
33
BRKT RH PANBRACE BLK.
5222340067
Not Available
34
PLATE CLUTCHGUARD BLK.
5211249067
Not Available
35
RIVET(50)
7621449
9999999
Not Available
36
SUPPORT CLUTCH GD BLK.
5222332067
Not Available
37
PIN
5224440
9999999
Not Available
38
DECAL ENGINE AND CLUTCH(CPSC)
7075350
9999999
Not Available
39
GUARD CLUTCH
5230124
9999999
Not Available
39
GUARD CLUTCH(SWED.LITE GT) (Lite GT StarLite GT)
1011839
Not Available
40
PIN FRONT
7080311
9999999
Not Available
41
RIVET (50)
7621601
1015421
$3,66 Unit Price incl. VAT
42
STRAP HOOD
5410573
9999999
Not Available
43
RIVET
7621472
$2,09 Unit Price incl. VAT
44
REFLECTOR AMBER
2670071
9999999
Not Available
45
CATCH HOLE PLUG
5410582
$15,74 Unit Price incl. VAT
46
NOSEPAN LH BLK.
5431155070
Not Available
47
ROSEBUD CLIP
4020139
$9,44 Unit Price incl. VAT
48
CAPBUMPER ENDLHBLK
5431250
9999999
Not Available
48
CAPBUMPER ENDRHBLK
5431251
9999999
Not Available
49
PLATE BUMPER
5222611067
Not Available
50
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
51
SCREW
7512164
9999999
Not Available
52
PLUG BUTTON
7080430
9999999
Not Available
53
SCREW
7515102
$9,44 Unit Price incl. VAT
54
BUMPER FRT BLK.
5224434067
Not Available
55
HINGE LOWER BLK.
2635010067
Not Available
56
TAPE FOIL
5810509
9999999
Not Available
57
U TYPE CLIP
7670040
$7,34 Unit Price incl. VAT
58
NOSEPAN CTR.
5431154070
Not Available
59
TAPE FOIL
5810475
Not Available
60
SCREEN
5211267067
Not Available
61
WASHER 13/64X1/2X18GA FL-Y (10
7558212
$1,56 Unit Price incl. VAT
62
TAPE FOIL
5810477
Not Available
63
NOSEPAN RH BLK.
5431156070
Not Available
64
COVER; RH SHOCK
5431253
9999999
Not Available
64
COVER LH SHOCK
5431252
Not Available
65
RIVET
7621457
$2,09 Unit Price incl. VAT
66
TAPE FOIL(PAN)
5810482
9999999
Not Available
67
DART CLIP
7670067
$7,34 Unit Price incl. VAT
68
TAPE FOIL
5810478
9999999
Not Available

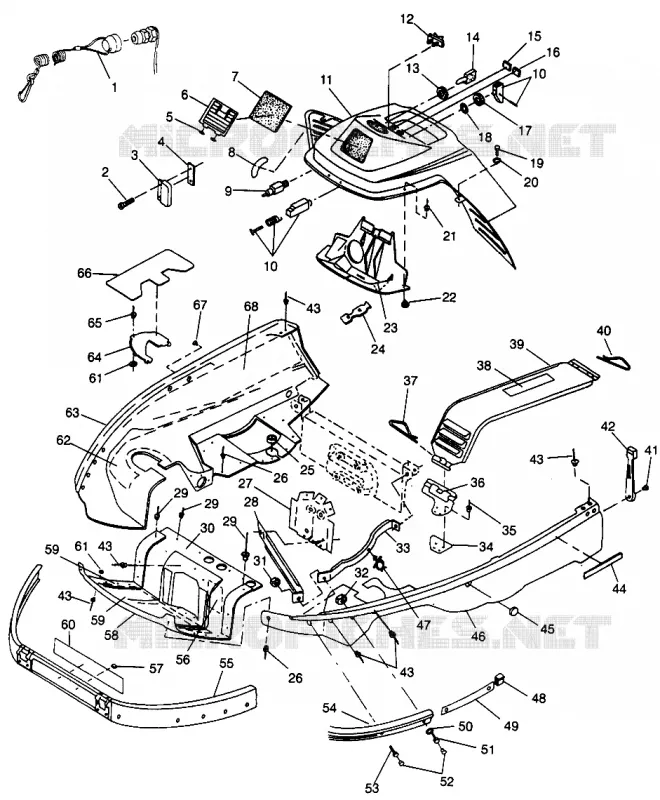

Find the detailed NOSEPAN CONSOLE LITE GT 0973133 AND EUROPEAN LITE GT E973133 (4938253825A007) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
