1
Engine displacement
335
2
Year
2000
3
Trim
SPORTSMAN 335 - A00CH33AC
4
Parts Catalog
CARBURETOR
5
Parts Diagram
Parts Catalog
INLET EXHAUST
by
RECOIL STARTER
CARBURETOR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
1
RING
3130507
$10,49 Unit Price incl. VAT
2
E-RING
3130508
$12,59 Unit Price incl. VAT
3
SCREW
3130541
9999999
Not Available
4
WASHER SPRING
3130540
9999999
Not Available
5
SCREW
3130592
3130924
$3,14 Unit Price incl. VAT
6
COVER ASSEMBLY
3130503
$125,99 Unit Price incl. VAT
7
SPRING
3130505
$52,49 Unit Price incl. VAT
8
SCREW AND WASHER
3084205
9999999
Not Available
9
CARBURETOR
3130904
9999999
Not Available
10
AIR PILOT JET
3130625
$27,29 Unit Price incl. VAT
11
PLUNGER ASM.
3130593
3130539
$73,49 Unit Price incl. VAT
12
SPRING
3130538
9999999
Not Available
13
GUIDE HOLDER
3130199
$52,49 Unit Price incl. VAT
14
O-RING
3130512
9999999
Not Available
15
COVER
3130511
$83,99 Unit Price incl. VAT
16
SCREW
3130535
$13,64 Unit Price incl. VAT
17
GUIDE CABLE
3130543
$62,99 Unit Price incl. VAT
18
SHAFT ASM;THROTTLE
3130513
9999999
Not Available
19
SCREW
3130501
9999999
Not Available
20
RING
3130514
9999999
Not Available
21
SPRING
3130589
9999999
Not Available
22
SEAL
3130515
9999999
Not Available
23
VALVE THROTTLE 100
3130502
$99,74 Unit Price incl. VAT
24
SPRING
3130544
9999999
Not Available
25
RING
3130545
9999999
Not Available
26
ADJUSTER SCREW
3130546
9999999
Not Available
27
JET PILOT #40
3130624
$52,49 Unit Price incl. VAT
28
O-RING
3130522
$10,49 Unit Price incl. VAT
29
WASHER LOCK
3130523
$4,19 Unit Price incl. VAT
30
SPRING
3130525
9999999
Not Available
31
ADJUSTER
3130524
$41,99 Unit Price incl. VAT
32
PLUG
3130905
9999999
Not Available
33
FLOAT ASSEMBLY
3130529
$157,49 Unit Price incl. VAT
34
SCREW
3130521
$18,89 Unit Price incl. VAT
35
FLOATBODY ASSEMBLY
3130590
$204,74 Unit Price incl. VAT
36
SCREW
3130520
$3,14 Unit Price incl. VAT
37
O-RING
3130532
$57,74 Unit Price incl. VAT
38
SCREW
3130591
$7,34 Unit Price incl. VAT
39
PLATE SPACER BRACKET; UPPER; MATTE BLACK
3130594
9999999
Not Available
40
VALVE NEEDLE (1.5)
3130668
3131360
$99,74 Unit Price incl. VAT
41
O-RING
3130533
$10,49 Unit Price incl. VAT
42
FLOAT PIN
3130361
$18,89 Unit Price incl. VAT
43
CAP
3130519
9999999
Not Available
44
E-RING
3130518
9999999
Not Available
45
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
46
MAIN JET;#150
3130569
9999999
Not Available
47
WASHER
3130014
$3,14 Unit Price incl. VAT
48
JETBLOCK ASSEMBLY
3130504
$120,74 Unit Price incl. VAT
49
NEEDLE JET;(P-9)
3130731
9999999
Not Available
50
DIAPHRAGM ASSEMBLY
3130732
$246,74 Unit Price incl. VAT
51
RING
3130752
$10,49 Unit Price incl. VAT
52
NEEDLE JET
3130730
9999999
Not Available

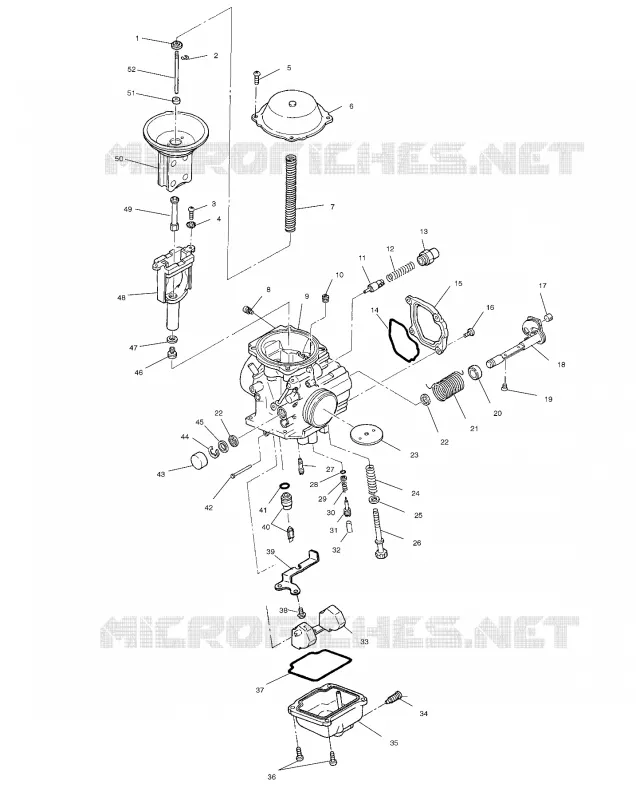

Find the detailed CARBURETOR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
