1
Engine displacement
900
2
Year
2023
3
Trim
PATRIOT 9R RMK KHAOS 146 SLASH
4
Parts Catalog
REAR SUSPENSION
5

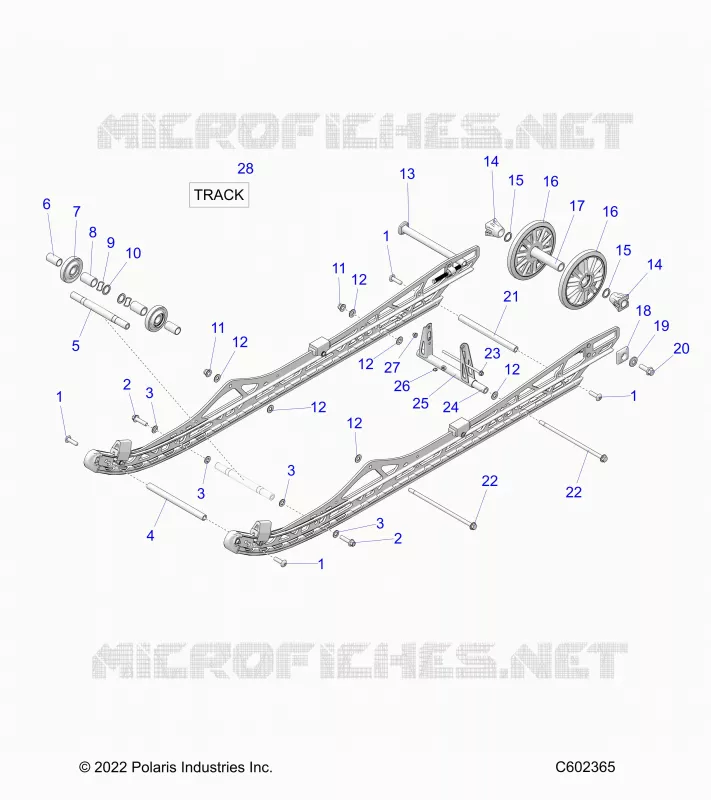

Parts Diagram
Parts Catalog
SUSPENSION, SHOCK MOUNTING, REAR SUSP.
by
ELECTRICAL, BATTERY, MANUAL START POWER UP COMPONENTS
REAR SUSPENSION
1
1
1
1
2
2
3
3
3
3
4
5
6
7
7
7
8
9
10
11
11
12
12
12
12
12
12
13
14
14
15
15
16
16
16
16
16
16
17
18
19
20
21
22
22
23
24
25
26
27
28
28
28
28
1
SCR-M10X1.5X35 TX/TRUSS ZODP30
7520369
$11,54 Unit Price incl. VAT
2
HEX FLANGE SCREW; 10 MM X 1.5 MM X 40
7519216
$9,44 Unit Price incl. VAT
3
WSHR FLAT INN DIA 10.5 OUT DIA
7556155
$9,44 Unit Price incl. VAT
4
SFT-M10X1.5IDX17.47ODX220.1 LG
5136572
$52,49 Unit Price incl. VAT
5
FTS CROSS SHAFT ASSEMBLY
1543897
$120,74 Unit Price incl. VAT
6
OUTSIDE SPACER
5454202
$6,29 Unit Price incl. VAT
7
BEARING 6004
3514879
3515142
$34,64 Unit Price incl. VAT
7
RING-RTNG INT 3000X-165
7710560
$15,74 Unit Price incl. VAT
7
ASM-WHL BOGIE LWT 3.06
1597838
1597873
$99,74 Unit Price incl. VAT
8
INSIDE SPACER
5454201
$6,29 Unit Price incl. VAT
9
WASHER WAVE
7555735
$7,34 Unit Price incl. VAT
10
WASHER-30MM ODX 21MM ID X 1.5
7556483
$7,34 Unit Price incl. VAT
11
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
12
WASHER 10.5 X 24 X 1.2446
7556545
$6,29 Unit Price incl. VAT
13
IDLER SHAFT; REAR
5139411
$194,24 Unit Price incl. VAT
14
SPACER; IDLER
5432535
$20,99 Unit Price incl. VAT
15
BUSHING
7555918
$3,14 Unit Price incl. VAT
16
BEARING-.7874X1.6535X.4724 NTN
3514384
3515142
$34,64 Unit Price incl. VAT
16
WHEEL SPOKE ASSEMBLY; 7.25
1590459
$82,94 Unit Price incl. VAT
16
RETAINING RING
7710444
$15,74 Unit Price incl. VAT
17
CENTER IDLER SPACER; LIGHTWEIGHT
5338618
$13,64 Unit Price incl. VAT
18
IDLER SPACER
5436496
$11,54 Unit Price incl. VAT
19
WSHR-DOMED 29X13X3 ZC DIN6796
7556929
$7,34 Unit Price incl. VAT
20
HEX FLANGE SCREW 12 MM X 1.75 MM X 35 MM
7520123
$15,74 Unit Price incl. VAT
21
CROSS SHAFT; MACHINED
5139172
$47,24 Unit Price incl. VAT
22
HEX FLANGE SCREW 10MM X 1.25MM X 250MM
7519327
$36,74 Unit Price incl. VAT
23
SCR-HXFL M6X1.0X150 8.8 ZOD
7519201
$36,74 Unit Price incl. VAT
24
CROSS SHAFT; RMK
5137418
$62,99 Unit Price incl. VAT
25
WELD-REAR PIVOT ARM; ECOAT
1544229329
Not Available
26
LUBRICATION FITTING
7080424
$9,44 Unit Price incl. VAT
27
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
28
CLIP-TRACK FLAT 012-0107 (10
5251273
$18,89 Unit Price incl. VAT
28
CLIP-TRACK SHRT GUIDE 012-0113
5268856
$13,64 Unit Price incl. VAT
28
TRACK-146 X2.0 CROSSOVER
5417325
$1 388,09 Unit Price incl. VAT
28
TRACK; 146 X 2.6; SERIES 6
5417522
$1 695,74 Unit Price incl. VAT
