1
Engine displacement
900
2
Year
2006
3
Trim
900 SWITCHBACK
4
Parts Catalog
CHASSIS, REAR
5
Parts Diagram
Parts Catalog
CHASSIS, FRONT
by
HOOD
CHASSIS, REAR
16
1
RIVET
7621467
$2,09 Unit Price incl. VAT
2
COVER-GRIPPER/DEICER BLK LH
5430014070
Not Available
2
COVER-GRIPPER/DEICER BLK RH
5430015070
Not Available
3
RACK-REAR BLK
5435237070
Not Available
3
RACK-REAR BASIC 159/166 BLK
5435371070
Not Available
4
ASM-COVER CLOSEOFF 144/151 BLK
2632983070
Not Available
5
TAILLIGHT HARNESS
2410543
9999999
Not Available
6
ASM-TAILLIGHT
2410544
9999999
Not Available
6
BULB (10)
4030043
$12,59 Unit Price incl. VAT
6
GASKET
4032015
9999999
Not Available
6
SCREW-10X.5 PH PN/HI-LOW 2BLK
7518019
9999999
Not Available
6
LENS
4032014
9999999
Not Available
7
SCREW
7512026
$2,09 Unit Price incl. VAT
8
SCREW #14 X 1 HI/LO
7518158
$9,44 Unit Price incl. VAT
9
BUMPER REAR NATURAL
2632988309
Not Available
10
SCREW
7517298
9999999
Not Available
11
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
12
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
13
RIVET
7621472
$2,09 Unit Price incl. VAT
14
FLAP-SNOW BLK/WHT
54349541038
Not Available
15
BRKT-GRIPPER COVER;144/151;LH
5249075
9999999
Not Available
15
BRKT-GRIPPER COVER;144/151;RH
5249076
9999999
Not Available
16
RIVET
7661637
$2,09 Unit Price incl. VAT

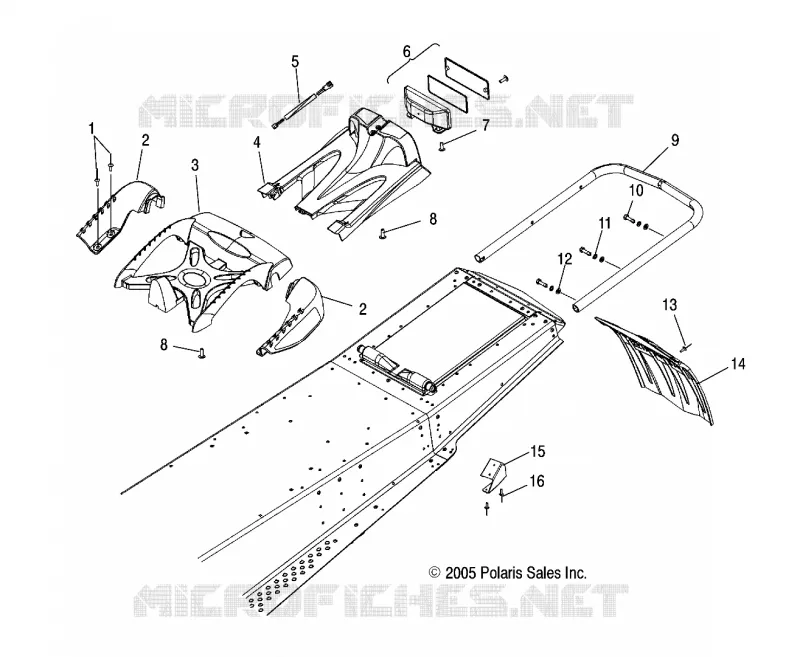

Find the detailed CHASSIS, REAR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
