Engine displacement
500
2
Year
2005
3
Trim
SPORTSMAN 6X6 - A05CL50AA
4
Parts Catalog
SWING ARM SHOCK
5
Parts Diagram
Parts Catalog
MIDDLE DRIVE ASSEMBLY
by
AIR BOX
SWING ARM SHOCK
1
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
25
25
25
25
31
32
32
33
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
17
17
18
19
20
21
22
1
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
2
SHOCK; AXLE; MID
7041962
9999999
Not Available
3
BOLT
7515438
$9,44 Unit Price incl. VAT
4
WASHER 2.085X2.88X.135
7556142
9999999
Not Available
5
CMPRSSN SPNG 100/160 13.5IN GS BLK
7041987067
Not Available
6
RETAINER SHOCK
5241147
5251753
$19,94 Unit Price incl. VAT
7
SCREW
7515415
9999999
Not Available
8
PIVOT BOLT
5134321
9999999
Not Available
9
PIVOT BUSHING LEFT
5133166
9999999
Not Available
10
HYBRID BUSHING; LEFT; BLACK
5434545
$16,79 Unit Price incl. VAT
11
ZERK FITTING
7080510
$10,49 Unit Price incl. VAT
12
POP RIVET 3/16
7661046
9999999
Not Available
13
CHAIN PAD GUIDE
5432727
9999999
Not Available
14
HEX NUT JAM
7547082
9999999
Not Available
15
FLAT WASHER
7556035
9999999
Not Available
16
BUSHING; RIGHT; BLACK
5434546
$16,79 Unit Price incl. VAT
17
PIVOT BUSHING; RIGHT
5133167
9999999
Not Available
18
SCREW
7515399
9999999
Not Available
19
BOLT LOCK BRACKET
5247488
9999999
Not Available
20
SWING ARM ASM.HYBRID 16.85
1541583
9999999
Not Available
21
Decal #Chain Free Play#
7078572
Not Available
22
CHAIN GUARD
5432854
9999999
Not Available
23
FLANGED SCREW
7515304
9999999
Not Available
24
BUSHING
5332828
9999999
Not Available
25
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
26
FLANGE NUT
7542343
$9,44 Unit Price incl. VAT
27
NUT FLANGE
7542522
$10,49 Unit Price incl. VAT
28
BOLT
7512576
9999999
Not Available
29
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
30
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
31
MOUNT-ROCK GUARD BRKT BLK
5222221067
Not Available
32
BOLT
7512325
$4,19 Unit Price incl. VAT
33
GUARD SWING ARM BLK.
1013328067
Not Available

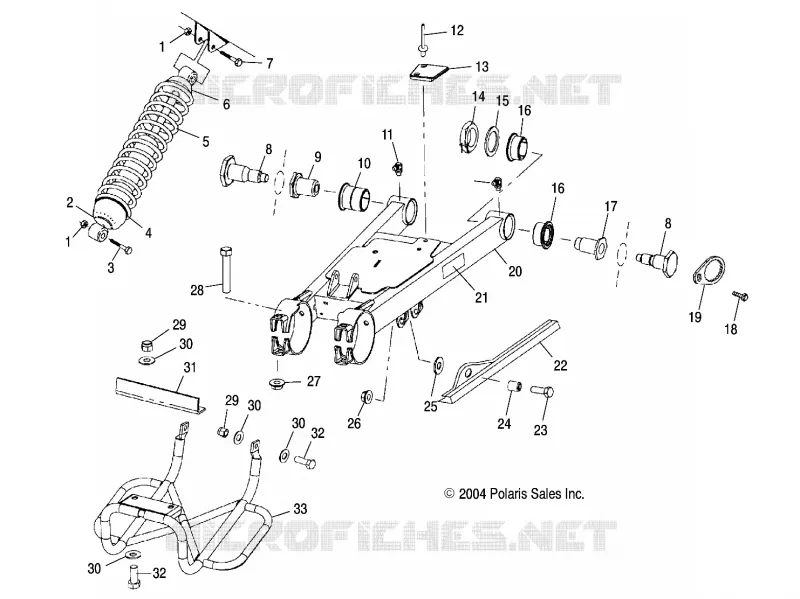

Find the detailed SWING ARM SHOCK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
