1
Engine displacement
800
2
Year
2016
3
Trim
800 RUSH PRO-S
4
Parts Catalog
LOWER STEERING
5
Parts Diagram
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
by
STORAGE BAGS
LOWER STEERING
1
1
2
3
4
5
6
7
7
8
8
9
9
9
10
10
11
11
12
12
13
13
14
14
15
16
17
17
18
19
20
21
21
22
23
23
24
25
26
27
28
28
29
29
30
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
1
STEERING POST LOWER BUSHING
5450880
$13,64 Unit Price incl. VAT
2
BRUSHING SPACER
5137796
$7,34 Unit Price incl. VAT
3
STEERING STRAP
5258308
$6,29 Unit Price incl. VAT
4
HEX FLANGE SCREW; 8 MM X 1.25 MM X 55 MM
7519242
$9,44 Unit Price incl. VAT
5
DRAG LINK ASSEMBLY; FIXED
7061186
$188,99 Unit Price incl. VAT
6
SCR-M8X1.25X25 8.8 SH ZOD P30
7519010
$7,34 Unit Price incl. VAT
7
WASHER
7556153
$3,66 Unit Price incl. VAT
8
SCR-TXTH-M8X1.25X35 8.8 ZOD
7519238
$11,54 Unit Price incl. VAT
9
NUT-HH M10X1.5 NYLOC ZOD
7547442
$7,34 Unit Price incl. VAT
10
ROD END; RIGHT; 10 MM X 26.5 MM; 70 DEG
7061166
$104,99 Unit Price incl. VAT
11
NUT-M10X1.5 ZOD
7547430
9999999
Not Available
12
TIE ROD
5336578
$52,49 Unit Price incl. VAT
13
NUT-M10X1.5 LH ZOD
7547431
$6,29 Unit Price incl. VAT
14
ROD END; LEFT; 10 MM X 23 MM; 75 DEG
7061165
$104,99 Unit Price incl. VAT
15
RACK LINK ASSEMBLY
7061190
$121,79 Unit Price incl. VAT
16
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
17
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
18
ASM-PITMAN ARM
1824284
9999999
Not Available
19
IDLER ARM ASSEMBLY
1824419
$220,49 Unit Price incl. VAT
20
SCR-HXFL-M8X1.25X85 10.9 ZOD
7519972
$17,84 Unit Price incl. VAT
21
SKI PIVOT BUSHING
5438460
$27,29 Unit Price incl. VAT
22
SHAFT-PIVOT IDLER
5138365
$47,24 Unit Price incl. VAT
23
RIGHT HAND TIE ROD BOOT ASSEMBLY
2635203
$73,49 Unit Price incl. VAT
23
LEFT HAND TIE ROD BOOT ASSEMBLY
2635202
$73,49 Unit Price incl. VAT
24
TIE ROD BOOT BUSHING
5439309
$20,99 Unit Price incl. VAT
25
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
26
XMAS TREE CLIP; .70 X .187 DIA
7661953
$2,09 Unit Price incl. VAT
27
SCR-TXTH-M6X1.0X15 ZPB TAP
7519092
$2,09 Unit Price incl. VAT
28
NUT-M8X1.25C10 HX NYL DIN982 Z
7547405
$2,09 Unit Price incl. VAT
29
STRAP-PITMAN/IDLER
5261249
$18,89 Unit Price incl. VAT
30
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$7,34 Unit Price incl. VAT

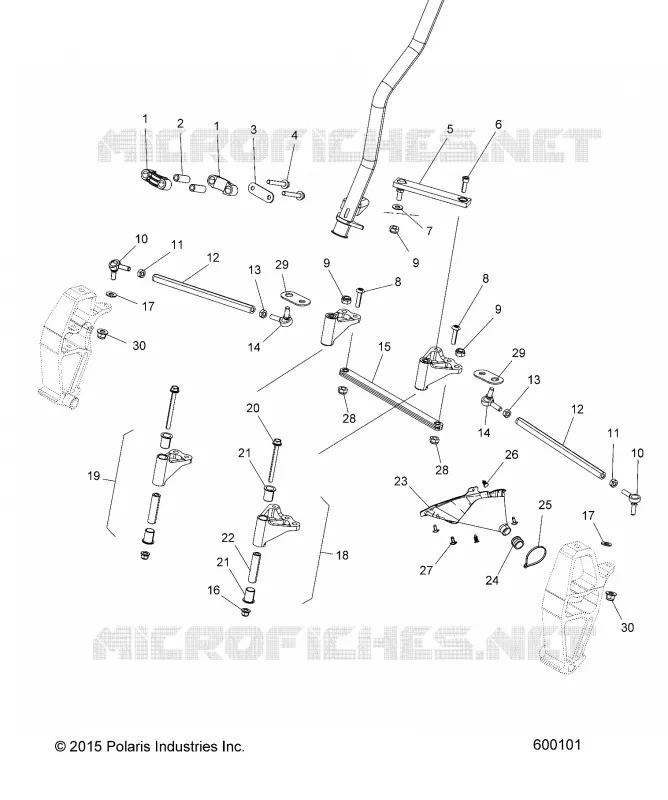

Find the detailed LOWER STEERING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
