Engine displacement
900
2
Year
2014
3
Trim
RANGER 900 CREW ALL OPTIONS - R14WH88A/9EA
4
Parts Catalog
CYLINDER AND HEAD
5
Parts Diagram
Parts Catalog
ENGINE, CRANKSHAFT AND PISTON
by
OIL DIPSTICK
CYLINDER AND HEAD
11
12
13
1
CYLINER HEAD ASSEMBLY; DOHC
3022441
3024248
$1 753,49 Unit Price incl. VAT
2
CYLINDER ASSEMBLY
3022579
$842,09 Unit Price incl. VAT
3
DOWEL PIN; 6 MM X 10 MM
5132835
$4,19 Unit Price incl. VAT
4
BASE GASKET
5253037
$57,74 Unit Price incl. VAT
5
CYLINDER HEAD GASKET
5813737
5814793
$110,24 Unit Price incl. VAT
6
HEAD BOLT; 11 MM X 1.25 MM X 150MM
7519123
7520978
$41,99 Unit Price incl. VAT
7
SCREW
7519153
$10,49 Unit Price incl. VAT
8
SCREW M6X1.0 X 13 SL/HX/FL-Z
7517679
$25,19 Unit Price incl. VAT
9
FLAT WASHER
7555998
$2,09 Unit Price incl. VAT
10
DWL-HOL M8X10
7661977
$15,74 Unit Price incl. VAT
11
PLUG-3/8 NPT;HX/SOC W/SEALANT
7052413
$8,39 Unit Price incl. VAT
12
SCR-HXFL-M6X1.0X35 10.9 ZY3
7519996
7520689
$14,69 Unit Price incl. VAT
13
HEX FLANGE SCREW; 6 MM X 1.0 MM X 70 MM
7519197
$1,56 Unit Price incl. VAT

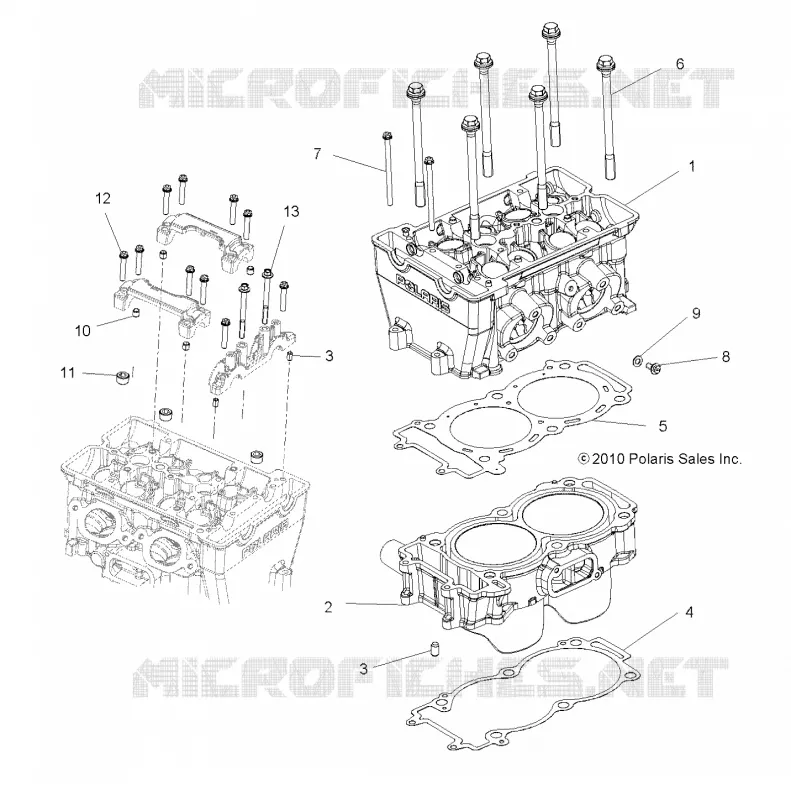

Find the detailed CYLINDER AND HEAD POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
