1
Engine displacement
300
2
Year
2008
3
Trim
SPORTSMAN 300 4X4 - A08LH27AW/AX/AZ
4
Parts Catalog
BRAKE LINES
5
Parts Diagram
Parts Catalog
FRONT BRAKE AND REAR CALIPERS
by
FRONT BRAKE BRAKE LEVER AND MASTER CYLINDER
BRAKE LINES
1
2
3
4
4
5
5
5
5
5
6
7
7
7
7
8
8
9
10
11
11
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
MASTER CYLINDER BRAKE LINE REAR
1910953
9999999
Not Available
2
CROSS FITTING
7052292
$73,49 Unit Price incl. VAT
3
LINE-BRAKE POD SS
1910946
9999999
Not Available
4
BANJO BOLT; 10 MM X 1.25-6G
1910958
$14,69 Unit Price incl. VAT
5
SEAL
5413212
9999999
Not Available
6
LINE-BRAKE FRONT LEFT SS
1910947
9999999
Not Available
7
SCREW
7512024
$9,44 Unit Price incl. VAT
8
CLAMP-CABLE NYLON 5/16
7080960
9999999
Not Available
9
CLIP
7670102
$4,19 Unit Price incl. VAT
10
LINE-BRAKE FRONT RIGHT SS
1910948
9999999
Not Available
11
BANJO BOLT; 10 MM X 1.00
1910499
$10,49 Unit Price incl. VAT
12
CLIP-RETAINING DUAL .250 LINE
7670126
$9,44 Unit Price incl. VAT
13
SCREW 10-24X5/8 (10)
7517756
$2,09 Unit Price incl. VAT
14
LINE-BRAKE REAR CALIPER
1910952
9999999
Not Available
15
HOSE CLAMP
7080683
$4,19 Unit Price incl. VAT

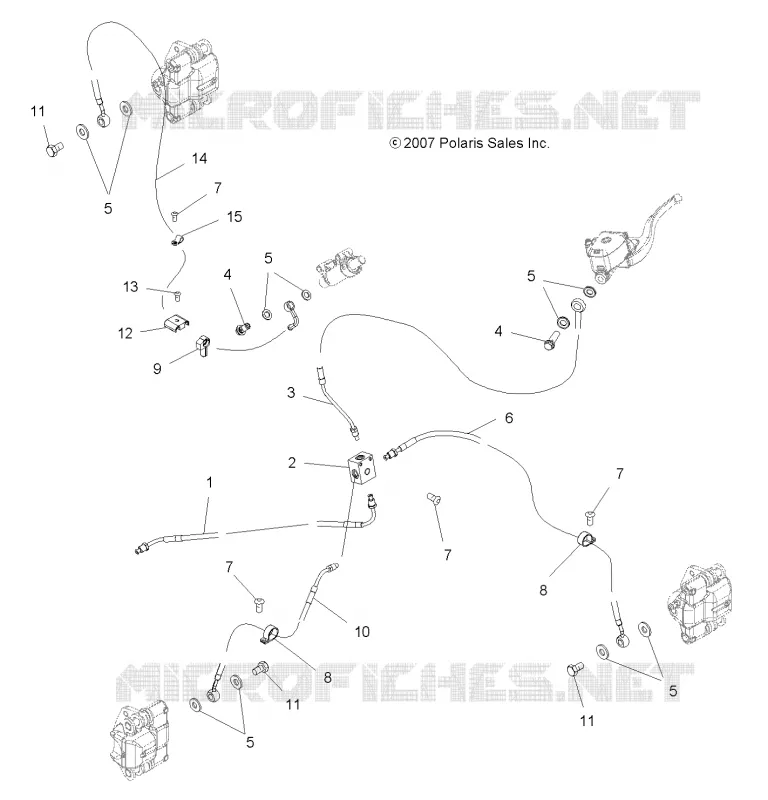

Find the detailed BRAKE LINES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
