1
Engine displacement
autre
2
Year
1996
3
Trim
SCRAMBLER - W967840
4
Parts Catalog
REAR BRAKE SCRAMBLER W967840 (4935823582C004)
5
Parts Diagram
Parts Catalog
GEARCASE/BRAKE AND CHAIN COVER MOUNTING SCRAMBLER W967840 (4935823582C003)
by
REAR WHEEL DRIVE SCRAMBLER W967840 (4935823582C005)
REAR BRAKE SCRAMBLER W967840 (4935823582C004)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
26
26
27
28
29
30
31
28
33
34
35
1
WASHER
7555921
9999999
Not Available
2
NUT; LH
7542149
9999999
Not Available
3
BLEEDER SCREW
7080352
$5,76 Unit Price incl. VAT
4
PIN DOWEL
7661820
9999999
Not Available
5
CALIPER R.BRAKE MACH
5131272
9990005
Not Available
6
REAR SEVERE DUTY BRAKE PAD KIT
2200899
9999999
Not Available
7
PISTON SEAL KIT
2200463
$167,99 Unit Price incl. VAT
8
RING MOLDED
5410766
$20,99 Unit Price incl. VAT
9
RING; SQUARE;(1DIAM.)
5410767
2200463
$167,99 Unit Price incl. VAT
10
SUBSTITUTED BY 2200463
5020667
$167,99 Unit Price incl. VAT
11
SPRINGANTI-RATTLE
5240993
9999999
Not Available
12
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
13
SPRING BRAKE COMP.
7041219
9999999
Not Available
14
PINBRAKE CALIPER
5020791
9999999
Not Available
15
BRAKE GASKET
5830009
9999999
Not Available
16
WASHER
7555827
$7,34 Unit Price incl. VAT
17
RAMP;MOVE.BRAKE
5630538
2200906
Not Available
18
RAMP; STAT.BRAKE
5630457
9990000
Not Available
19
SCREW
7512173
9999999
Not Available
20
BRAKE SEAL
3610026
9999999
Not Available
21
ARM BRAKE CALIPER
5240901
9999999
Not Available
22
WASHER; SPRING
7555828
9999999
Not Available
23
WASHER
7571632
9999999
Not Available
24
BOLT LH SOC/HD.
7515160
9999999
Not Available
25
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
26
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
27
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
28
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
29
ROD BRAKE
5224531
9999999
Not Available
30
BRAKE FOOT BLK.
1910172067
Not Available
31
SPRING
7042029
$10,49 Unit Price incl. VAT
32
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
33
PEDAL PIVOT BUSHING
5431107
$16,79 Unit Price incl. VAT
34
WASHER
7555919
$7,34 Unit Price incl. VAT
35
COTTER PIN
7661401
$1,56 Unit Price incl. VAT

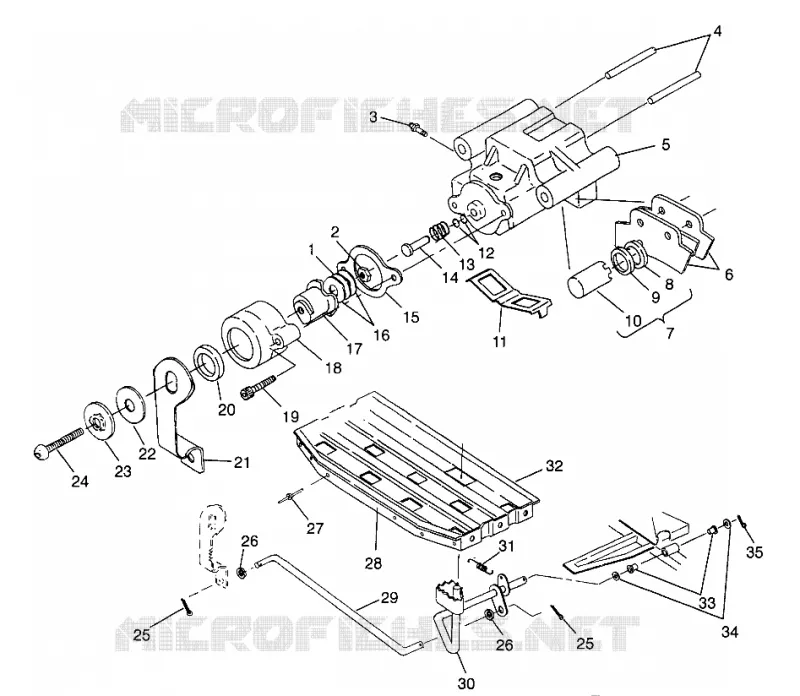

Find the detailed REAR BRAKE SCRAMBLER W967840 (4935823582C004) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
