Engine displacement
500
2
Year
1992
3
Trim
500 SPX - 0920674N
4
Parts Catalog
BRAKE CHAINCASE 500 SPX (4922552255019A)
5
Parts Diagram
Parts Catalog
STEERING 500 SPX (4922552255017A)
by
CHAINCASE ASSEMBLY 500 SPX (4922552255021A)
BRAKE CHAINCASE 500 SPX (4922552255019A)
1
2
3
4
5
6
6
7
7
8
9
10
11
12
12
13
14
15
16
17
18
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
1
SCREW-BLEEDER
1930564
Not Available
2
HOUSING
1930718
9990005
Not Available
3
BRACKET
1930717
Not Available
4
PISTON
1930716
Not Available
5
SEAL-PISTON
1930567
9999999
Not Available
6
CLIP SPRING
1930715
Not Available
7
SWITCH STOPLIGHT
4110089
Not Available
8
PAD ASM BRAKE
1930720
9999999
Not Available
9
LINE BRAKE
1930696
Not Available
10
CALIPER BRAKE Substituted by 1930825 (Incl. 1-8)
1930701
Not Available
11
JACKSHAFT ASM BLK.
1332141067
Not Available
12
OIL SEAL
3610030
$36,74 Unit Price incl. VAT
13
SCREW(10) [No Longer Available]
7512408
Not Available
14
WASHER SPRINGLOCK
7553001
7552603
$1,56 Unit Price incl. VAT
15
CHAINCASETOP MNT.BRAKE
5130849
9999999
Not Available
16
SCREW(10)
7515511
$7,34 Unit Price incl. VAT
17
NUT
7542404
$3,14 Unit Price incl. VAT
18
BEARING CHAINCASE #6205
3514306
9999999
Not Available
19
DESC NOT_AVAILABLE
7718405
Not Available
20
SPACER SPROCKET
5010270
9999999
Not Available
21
SPKT 21T (13W)
3221054
9999999
Not Available
22
CHAIN 66P (13W) SILENT
3224051
9999999
Not Available
23
TIGHTENER ASM.
1332078
9999999
Not Available
24
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
25
SLOTTED NUT
7542810
$5,76 Unit Price incl. VAT
26
COTTER PIN
7661401
$1,56 Unit Price incl. VAT
27
CHAINCASE GASKET
5410277
9999999
Not Available
28
COVER; CHAINCASE
5630413
9999999
Not Available
29
SCREW
7515350
7517979
$7,34 Unit Price incl. VAT
30
SPRING WASHER
7571618
$11,54 Unit Price incl. VAT
31
SPROCKET 39T (13W)
3222052
9999999
Not Available
32
BUSHING
7556509
$3,14 Unit Price incl. VAT
33
CAP STUD COVER
5020569
9999999
Not Available
34
SCREW; CARRIAGE
7515477
9999999
Not Available
35
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
36
BRKT C.C.ROPE GUIDE Substituted by 5240277-067
5222828067
Not Available
37
RECOIL GUIDE
5431385
$19,94 Unit Price incl. VAT
38
RIVET (50)
7621477
9999999
Not Available

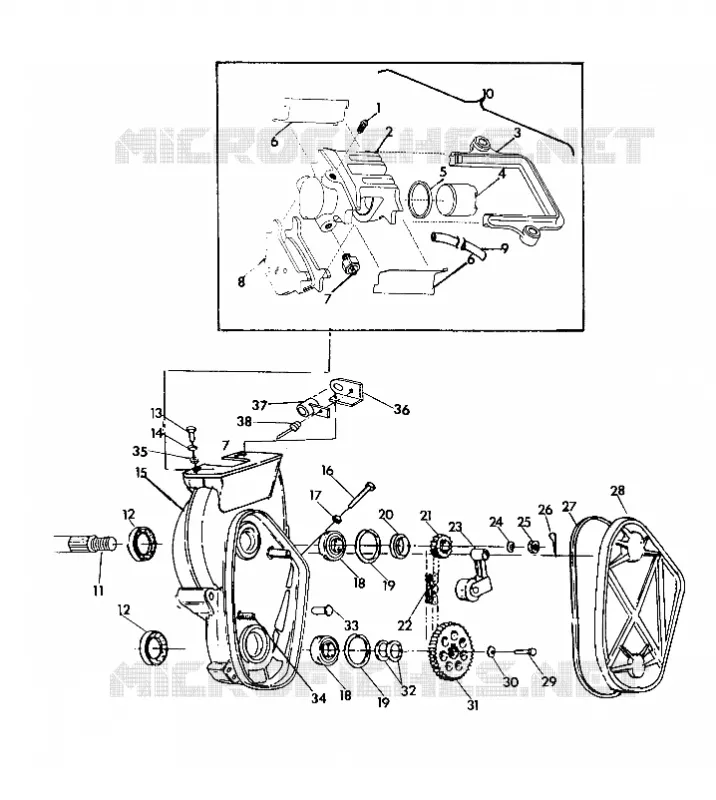

Find the detailed BRAKE CHAINCASE 500 SPX (4922552255019A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
