1
Engine displacement
500
2
Year
2000
3
Trim
MAGNUM 500 - A00CD50AA
4
Parts Catalog
GEARCASE (NOT ALL INTERNAL SERVICE PARTS ARE READILY AVAILABLE)
5
Parts Diagram
Parts Catalog
CV JOINT
by
FRONT RACK BUMPER MOUNTING
GEARCASE (NOT ALL INTERNAL SERVICE PARTS ARE READILY AVAILABLE)
-
1
1
2
2
2
3
4
4
5
5
5
5
6
7
8
9
9
9
9
10
11
12
13
14
15
16
17
18
18
19
19
20
21
22
23
24
25
26
26
27
28
29
29
30
30
31
32
32
33
34
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
-
ASM-GEARCASE SRS MAG500 WORLDS
1341353
9999999
Not Available
1
SCREW
3233252
$9,44 Unit Price incl. VAT
2
SEAL
3233248
3233788
$57,74 Unit Price incl. VAT
3
COVER-W/PARK LOCKLH
3233763
9999999
Not Available
4
KNOCK PIPE
3233529
9999999
Not Available
5
BEARING
3233019
$54,59 Unit Price incl. VAT
6
SHAFT-INPUT
3233756
9999999
Not Available
7
SILENT CHAIN
3233036
9999999
Not Available
8
GEAR-14/19T
3233755
9999999
Not Available
9
BEARING
3233018
$47,24 Unit Price incl. VAT
10
NUT
3233055
3233961
$5,24 Unit Price incl. VAT
11
WASHER
3233054
9999999
Not Available
12
BELLCRANK
3233153
$62,99 Unit Price incl. VAT
13
RETAINING RING
3233045
$9,44 Unit Price incl. VAT
14
WASHER
3233040
9999999
Not Available
15
O-RING
3233548
9999999
Not Available
16
RING RETAINING
3233618
9999999
Not Available
17
SHIFT SHAFT
3233624
9999999
Not Available
18
SCREW
3233749
$10,49 Unit Price incl. VAT
19
SWITCH
3233615
9999999
Not Available
20
VENT
3233037
9999999
Not Available
21
SHIFT SHAFT
3233627
9999999
Not Available
22
GEARCASE-MAIN
3233765
9999999
Not Available
23
OIL FILL PLUG
3233711
9999999
Not Available
24
WASHER
3233324
9999999
Not Available
25
PLATE-PARKLOCK
3233757
9999999
Not Available
26
SCREW
3233608
9999999
Not Available
27
WASHER
3233628
9999999
Not Available
28
ENGAGEMENT-LOW/PARK
3233758
9999999
Not Available
29
RETAINING RING
3233306
$9,44 Unit Price incl. VAT
30
WASHER THRUST
3233619
$36,74 Unit Price incl. VAT
31
GEAR-36T
3233760
9999999
Not Available
32
BEARING; NEEDLE
3233103
$54,59 Unit Price incl. VAT
33
SHAFT-REVERSE
3233761
9999999
Not Available
34
WASHER
3233012
9999999
Not Available
35
NEEDLE BEARING
3233014
$74,54 Unit Price incl. VAT
36
SPROCKET 24T
3233599
9999999
Not Available
37
RING RETAINING
3233029
9999999
Not Available
38
DOG ENGAGE 12PT HI/REV
3233533
9999999
Not Available
39
SHIFT FORK
3233602
9999999
Not Available
40
GEAR; 30T
3233600
9999999
Not Available
41
SPACER
3233613
9999999
Not Available
42
GEAR HELICAL 36T
3233708
9999999
Not Available
43
SPRING
3233032
9999999
Not Available
44
PIN INTERLOCK
3233308
9999999
Not Available
45
BRACKET INTERLOCK
3233309
9999999
Not Available
46
SCREW-TAPPING W/LOCK WASHER
3233747
9999999
Not Available
47
GEAR HELICAL 48T
3233709
9999999
Not Available
48
COVER BEARING
3233609
9999999
Not Available
49
SNAP RING
3233106
$10,49 Unit Price incl. VAT
50
BALL BEARING
3233607
9999999
Not Available
51
SHAFT 10T
3233606
9999999
Not Available
52
FORK-SHIFT LOW/PARK
3233759
9999999
Not Available
53
ROLLER CHAIN24P
3233626
9999999
Not Available
54
SPROCKET 12T
3233620
9999999
Not Available
55
GEARSPIRAL BEVEL 31T
3233621
9999999
Not Available
56
SHAFT REAR OUTPUT
3233622
9999999
Not Available
57
BUTTON THRUST
3233582
$13,64 Unit Price incl. VAT
58
SHIM; .450 X .265
3233583
$52,49 Unit Price incl. VAT
59
SHIM KIT
3233611
$52,49 Unit Price incl. VAT
60
COVER OUTPUT
3233623
9999999
Not Available
61
PLUG DRAIN
3233253
9999999
Not Available
62
PLUG WASHER
3233254
$14,69 Unit Price incl. VAT
63
OUTPUT SHAFT; FRONT
3233625
$262,49 Unit Price incl. VAT
64
Sprocket 12T
3233903
Not Available
65
GARLOCK BUSHING
3233552
$41,99 Unit Price incl. VAT

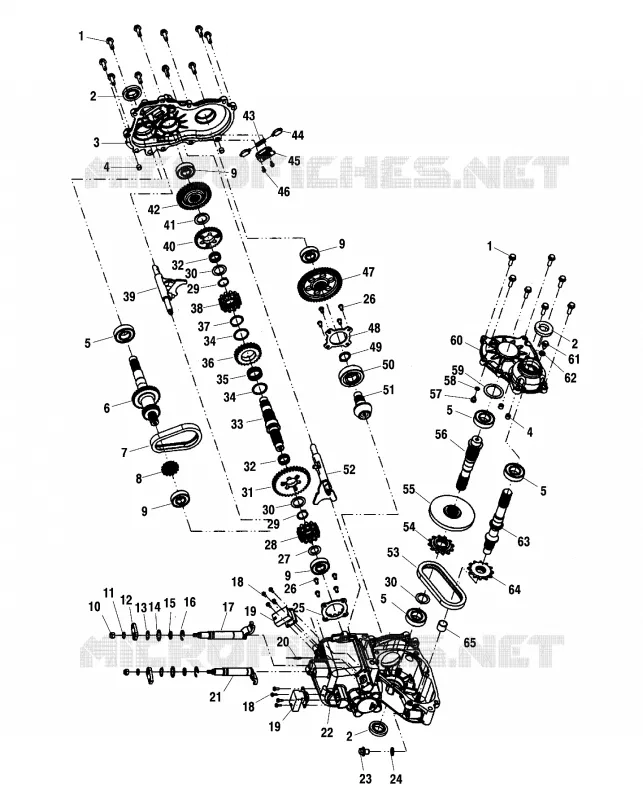

Find the detailed GEARCASE (NOT ALL INTERNAL SERVICE PARTS ARE READILY AVAILABLE) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
