Parts Catalog
CARBURETOR MOUNTING AND FUEL PUMP/LINES
5
Parts Diagram
Parts Catalog
DRIVE REAR SHAFT
by
TORSION BAR
CARBURETOR MOUNTING AND FUEL PUMP/LINES
1
2
3
4
5
6
7
8
8
9
10
10
10
10
10
10
11
11
11
12
13
1
2
3
4
1
FUEL LINE; 1/4 ID
84500031525
Not Available
2
CARBURETOR MOUNT STRAP; PLATED
5247155
9999999
Not Available
3
SCREW AND WASHER
3084205
9999999
Not Available
4
HEX NUT
7542105
$7,34 Unit Price incl. VAT
5
WASHER
7558203
$6,29 Unit Price incl. VAT
6
MOUNT CARBURETOR
3110050
$19,94 Unit Price incl. VAT
7
INSERT
7542143
$10,49 Unit Price incl. VAT
8
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
9
VALVE CHECK
7051011
9999999
Not Available
10
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
11
LINE FUEL-1/4 DP SAE J30R9
8450103
8450117-250
$99,74 Unit Price incl. VAT
12
SMALL IN-LINE FILTER
2530009
$12,59 Unit Price incl. VAT
13
FUEL LINE; 600 CM
8450040600
Not Available

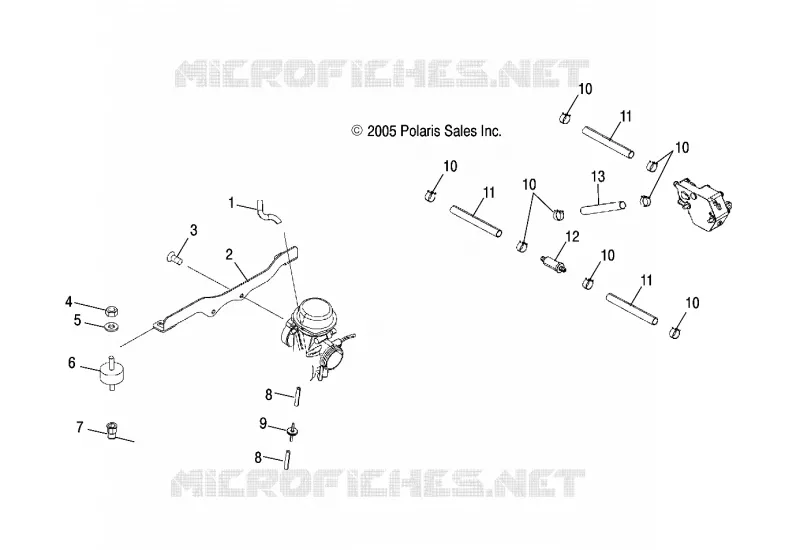

Find the detailed CARBURETOR MOUNTING AND FUEL PUMP/LINES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
