1
Engine displacement
570
2
Year
2017
3
Trim
SPORTSMAN 570 SP
4
Parts Catalog
EXHAUST
5
Parts Diagram
Parts Catalog
ENGINE, COOLING SYSTEM
by
ENGINE, MOUNTING
EXHAUST
1
1
2
2
3
3
4
4
5
6
6
7
7
8
8
9
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
27
28
29
1
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
2
WASHER
7555716
$3,14 Unit Price incl. VAT
3
WASHER 15.4 X 38.1 X 7.9 RUB
5414945
$9,44 Unit Price incl. VAT
4
SPRING
7041804
$16,79 Unit Price incl. VAT
5
BRKT-SILENCER FRAME PLTD
5263678
$68,24 Unit Price incl. VAT
6
VIBRATION DAMPER
5414946
$9,44 Unit Price incl. VAT
7
BUSHING
5010192
$12,59 Unit Price incl. VAT
8
BOLT
7515316
$4,19 Unit Price incl. VAT
9
CLAMP HOSE SS
7080560
$20,99 Unit Price incl. VAT
10
ASM-EXHAUST PIPE570 EFISS
1262917
1263100
$545,99 Unit Price incl. VAT
11
EXHAUST HEAT SHIELD; MID
5260801
5267367
$120,74 Unit Price incl. VAT
12
MANIFOLD WELD
1262376
9999999
Not Available
13
SHIELD-HEAT EXHAUST HEADPIPE
5260800
$68,24 Unit Price incl. VAT
14
EXHST SILENCER WELD HGH TMP PWDR PNT BLK
1262445489
Not Available
15
BOLT
7512666
$4,19 Unit Price incl. VAT
16
CLEAN OUT WASHER; .51 X .75 X .09
7556230
$2,09 Unit Price incl. VAT
17
EXHAUST SEALING GASKET
5253989
$52,49 Unit Price incl. VAT
18
HEX SOCKET SCREW
7517555
$15,74 Unit Price incl. VAT
19
SHIELD-HEAT EXHAUST REAR
5260802
5267366
$136,49 Unit Price incl. VAT
20
HEAT SHIELD; MID EXHAUST; INNER
5260808
5267368
$62,99 Unit Price incl. VAT
21
BOLT-5/16-18X1-3/4 HXFLNG GR5
7518341
$9,44 Unit Price incl. VAT
22
EXHAUST SEAL
5256385
$52,49 Unit Price incl. VAT
23
FLANGE NUT
7542343
$9,44 Unit Price incl. VAT
24
CLAMP-45.0DX7W 304SS OETIKER
7082132
$9,44 Unit Price incl. VAT
25
FUEL TANK HEAT SHIELD
5263226
9999999
Not Available
26
SHIELD-HEAT AIRBOX
5263227
9999999
Not Available
27
SCREW
7517386
$2,09 Unit Price incl. VAT
28
NUT
7670096
$3,14 Unit Price incl. VAT
29
WASHER
7556099
$3,14 Unit Price incl. VAT

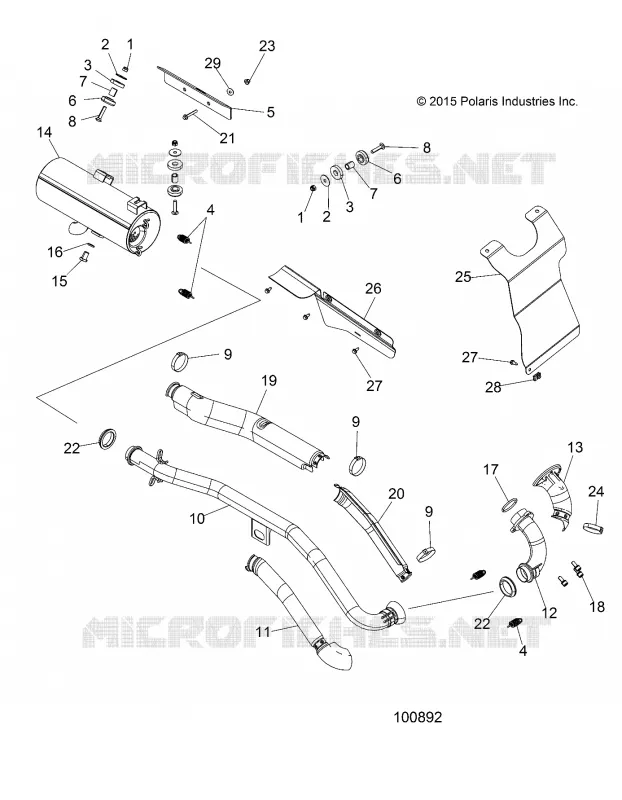

Find the detailed EXHAUST POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
