Engine displacement
500
2
Year
1999
3
Trim
SPORTSMAN 500 - A99CH50AA
4
Parts Catalog
RECOIL STARTER
5
Parts Diagram
Parts Catalog
CARBURETOR
by
WATER PUMP
RECOIL STARTER
1
2
3
4
5
6
7
7
8
8
9
10
11
12
13
14
14
14
14
15
1
2
3
4
5
6
7
7
8
8
9
10
11
12
13
14
14
14
14
15
1
2
3
4
5
6
7
7
8
8
9
10
11
12
13
14
14
14
14
15
1
2
3
4
5
6
7
7
8
8
9
10
11
12
13
14
14
14
14
15
1
REEL ASSEMBLY
3084822
9999999
Not Available
2
RETURN SPRING
3083463
9999999
Not Available
3
RATCHET
3083378
9999999
Not Available
4
FRICTION SPRING
3083379
9999999
Not Available
5
FRICTION PLATE
3084744
9999999
Not Available
6
BOLT&WASHER ASM.
3085266
9999999
Not Available
7
PLUG
3083453
9999999
Not Available
8
GASKET
3082956
9999999
Not Available
9
STARTER BUSHING
3083669
9999999
Not Available
10
SPIRAL SPRING
3083185
9999999
Not Available
11
BUSHING
3084750
9999999
Not Available
12
GASKET RECOIL
3084933
9999999
Not Available
13
FLANGE BOLT
3084877
9999999
Not Available
14
ASM-RECOIL
3085652
9999999
Not Available
14
CASE STARTER
3085653
9999999
Not Available
15
ROPE ASSEMBLY
3085083
9999999
Not Available

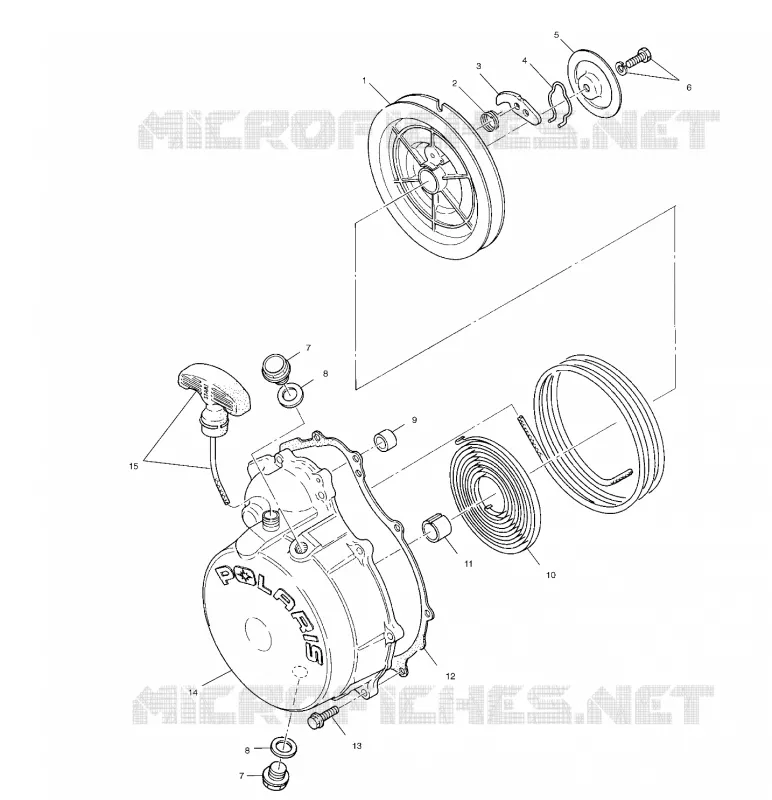

Find the detailed RECOIL STARTER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for SPORTSMAN 500 - A99CH50AA
