1
Engine displacement
550
2
Year
2000
3
Trim
550 TRAIL TOURING
4
Parts Catalog
BACKREST
5
Parts Diagram
Parts Catalog
SEAT GAS TANK
by
NOSEPAN
BACKREST
1
1
2
3
4
5
6
7
8
9
10
11
11
11
12
12
12
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
35
36
37
38
39
40
41
42
43
44
44
45
45
46
1
ADJ.ASMBREST CUSHION
1012534
9999999
Not Available
2
WASHER WAVE
7571635
9999999
Not Available
3
BRKT MOUNTING
1012535
9999999
Not Available
4
SCREW
7511866
$9,44 Unit Price incl. VAT
5
KEY SQUARE
7721118
9999999
Not Available
6
ROTOR
5131207
9999999
Not Available
7
E-RING
7710901
$15,74 Unit Price incl. VAT
8
WASHER (10)
7571634
9999999
Not Available
9
KNOB; ADJ.
5432112
9999999
Not Available
10
SCREW (10)
7512087
9999999
Not Available
11
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
12
HSG LH (ADJ. B REST)
5131211
9999999
Not Available
12
HSG RH (ADJ.B REST)
5131212
9999999
Not Available
13
CABLE ASM;ACTUATOR
7080582
9999999
Not Available
14
ADJUSTER ASM;BREST
1012536
9999999
Not Available
15
SPRING LOCKING
7041411
9999999
Not Available
16
PAWL ASMLHLOCK.MASTER
1012320
9999999
Not Available
16
PAWL ASM RH LOCK MASTER
1012321
Not Available
17
SECTOR ENGAGEMENT
5211610
Not Available
18
PIN PIVOT
5020806
9999999
Not Available
19
BOLT (10)
7515171
9999999
Not Available
20
LEVER LOCKING.BLK. Substituted by 5631126-067
5630561067
Not Available
21
SCREW (10)
7516915
9999999
Not Available
22
BOLT
7515170
9999999
Not Available
23
STUD-LIMITER
5020822
9999999
Not Available
24
GEARSTATIONARY
1012537
9999999
Not Available
25
TUBE B REST MT BLK
5224761067
Not Available
26
COVER CABLE BLK
5432259
9999999
Not Available
27
WASHER THRUST
7555926
9999999
Not Available
28
SPRING TORSION PRELOAD
7041412
Not Available
29
COVER SPRING 1/2 ID BLK
5241935067
Not Available
30
NUT
7547015
9999999
Not Available
31
SCREW
7512307
$7,34 Unit Price incl. VAT
32
WASHER FLAT(10)
7555734
$1,56 Unit Price incl. VAT
33
HANDLE GRAB RH BLACK
1012658067
Not Available
33
HANDLE GRAB LH BLACK
1012657067
Not Available
34
GRIP ASM PASSENGER
2460660
Not Available
35
KEY HI PRO
7721125
9999999
Not Available
36
KNOB GRAB HANDLE
1012385
9999999
Not Available
37
KNOB; BACKREST
5630386067
Not Available
38
BOLT
7515328
7515339
$9,44 Unit Price incl. VAT
39
SPACER ADJ.KNOB
5432123
9999999
Not Available
40
CAPLUG 3/4
7080592
9999999
Not Available
41
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
42
PALNUT
7547030
$9,44 Unit Price incl. VAT
43
CARRIAGE BOLT
7512377
$9,44 Unit Price incl. VAT
44
MAINFRAMELHBLK
1012539067
Not Available
44
MAINFRAME RH BLK
1012540067
Not Available
45
CUSHION ASM BACKREST
2682336
Not Available
45
COVER ASM BACKREST
2681833
Not Available
46
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT

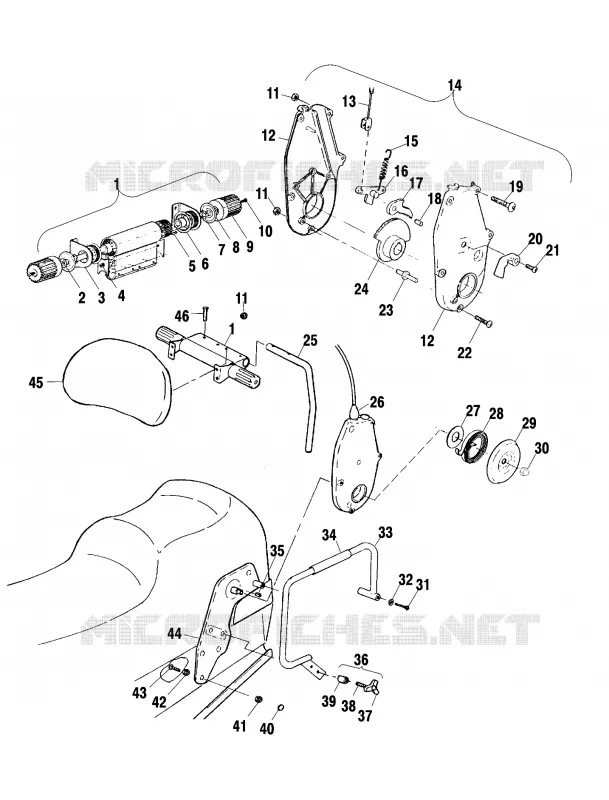

Find the detailed BACKREST POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
