1
Engine displacement
700
2
Year
1998
3
Trim
700 XC - 0981766
4
Parts Catalog
FRONT TORQUE ARM 700 XC 0981766 AND EUROPEAN 700 XC E981766 (4944154415B013)
5
Parts Diagram
Parts Catalog
SUSPENSION 700 XC 0981766 AND EUROPEAN 700 XC E981766 (4944154415B012)
by
REAR TORQUE ARM 700 XC 0981766 AND EUROPEAN 700 XC E981766 (4944154415B014)
FRONT TORQUE ARM 700 XC 0981766 AND EUROPEAN 700 XC E981766 (4944154415B013)
1
2
3
4
5
6
6
7
7
7
8
8
9
10
11
12
13
14
15
16
17
18
18
18
19
19
20
21
22
23
23
26
27
27
23
29
29
30
31
23
33
34
1
SCREW
7517247
9999999
Not Available
2
WASHER SPRINGLOCK
7553001
7552603
$1,56 Unit Price incl. VAT
3
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
4
SHAFT
5131450
9999999
Not Available
5
ARM FR.TORQUE X-10 QA BLK
1541203067
Not Available
6
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
7
WASHER
7555716
$3,14 Unit Price incl. VAT
8
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
9
EYE BOLT
7010050
9999999
Not Available
10
RETAINER SPRING
5241276067
Not Available
11
SPRING SHIELD
5430671
9999999
Not Available
12
SHOCK F.TRACK X-10 FX
7041639
Not Available
13
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
14
COMPRESSION SPRING MEDIUM GLOSS BLACK
7041253067
Not Available
15
NUT LOCK
7542403
9999999
Not Available
16
SPACER
5333028
9999999
Not Available
17
PIVOT TUBE BUSHING
5020561
9999999
Not Available
18
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
19
WAVE SPRING WASHER
7555795
$2,09 Unit Price incl. VAT
20
ARM SHOCK
1540942067
Not Available
21
BOLT
7515472
$4,19 Unit Price incl. VAT
22
BOLT
7515438
$9,44 Unit Price incl. VAT
23
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
25
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
26
SPACER OUTER
5332784
9999999
Not Available
27
BUSHING
7556301
$6,29 Unit Price incl. VAT
28
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
29
SCREW
7515433
$3,14 Unit Price incl. VAT
30
SCREW
7517313
$9,44 Unit Price incl. VAT
31
STRAP LIMITER FRONT
5411045
9999999
Not Available
32
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
33
NUT NYLOK
7542344
$7,34 Unit Price incl. VAT
34
CARRIAGE BOLT
7512377
$9,44 Unit Price incl. VAT

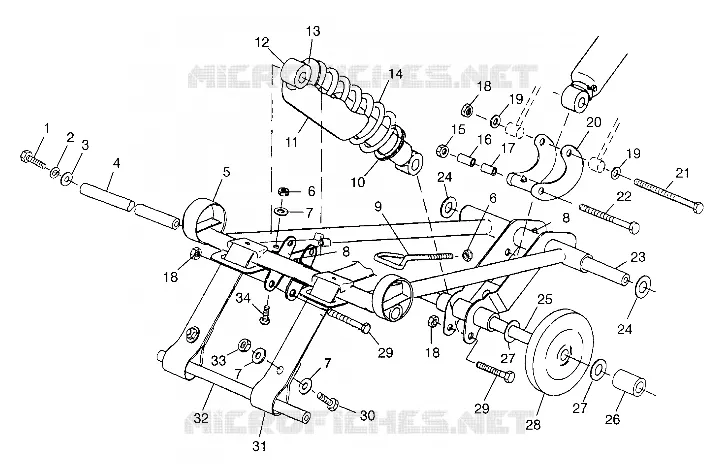

Find the detailed FRONT TORQUE ARM 700 XC 0981766 AND EUROPEAN 700 XC E981766 (4944154415B013) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
