DRIVE TRAIN, FRONT GEARCASE INTERNALS (BUILT 3/04/10 AND BEFORE) for POLARIS RANGER 4X4 400 HO - R10RH45AG/AH/AR from 2010

REAR SUSPENSION

DRIVE TRAIN, FRONT GEARCASE INTERNALS (BUILT 3/05/10 AND AFTER)

DRIVE TRAIN, FRONT GEARCASE INTERNALS (BUILT 3/04/10 AND BEFORE)

-

ASM-GEARCASE FRONT OSR

1332731

9999999

Not Available

1

ASM-COVER OUTPUT

3234402

3236663

$955,49 Unit Price incl. VAT

2

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

3

THRUST BUTTON ASSEMBLY

3234594

9999999

Not Available

4

THRUST PLATE DU

3234595

9999999

Not Available

5

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

6

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

7

SET-SCREW #10-14 W/NYLOK

3234408

$52,49 Unit Price incl. VAT

8

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

9

ASM-HUB RACE/OUTPUT

3234403

9999999

Not Available

10

BEARING

3234390

$60,89 Unit Price incl. VAT

11

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

12

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

13

RING-RETAINING INTRNL 5000-218

3234416

$19,94 Unit Price incl. VAT

14

ASM-CLUTCH

3234404

9999999

Not Available

15

ROLL CAGE ASSEMBLY; AL

3235263

9999999

Not Available

15

ROLL CAGE ASSEMBLY

3234466

9999999

Not Available

16

KIT-ROLL OVERSIZED

3234836

9999999

Not Available

17

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

18

ARMATURE PLATE

3234407

$209,99 Unit Price incl. VAT

19

CLUTCH-HSG/RING GEAR;42T 7.624

3234409

9999999

Not Available

20

BOLT KIT

3234405

$52,49 Unit Price incl. VAT

21

REPAIR SEAL KIT

3234406

$136,49 Unit Price incl. VAT

22

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

23

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

24

RING GEAR SPACER

3234437

$36,74 Unit Price incl. VAT

25

BUSHING-1X1.316X1

3234436

9999999

Not Available

26

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

27

HUB-OUTPUT RH

3234465

9999999

Not Available

28

MAGNETIC DRAIN PLUG ASSEMBLY

3234412

$83,99 Unit Price incl. VAT

29

PLUG-OIL FILL3/4-16 HOLLOW HD

3234414

3233942

$62,99 Unit Price incl. VAT

30

PINION GEAR ASSEMBLY

3234415

9999999

Not Available

31

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

32

INPUT COVER ASSEMBLY

3234463

3235337

$241,49 Unit Price incl. VAT

33

COVER-INPUT MACHINED

3234418

3235337

$241,49 Unit Price incl. VAT

34

GEARCASE ASSEMBLY

3234411

9999999

Not Available

35

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

36

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

37

FRONT GEARCASE INTERNAL CAGE

3234464

9999999

Not Available

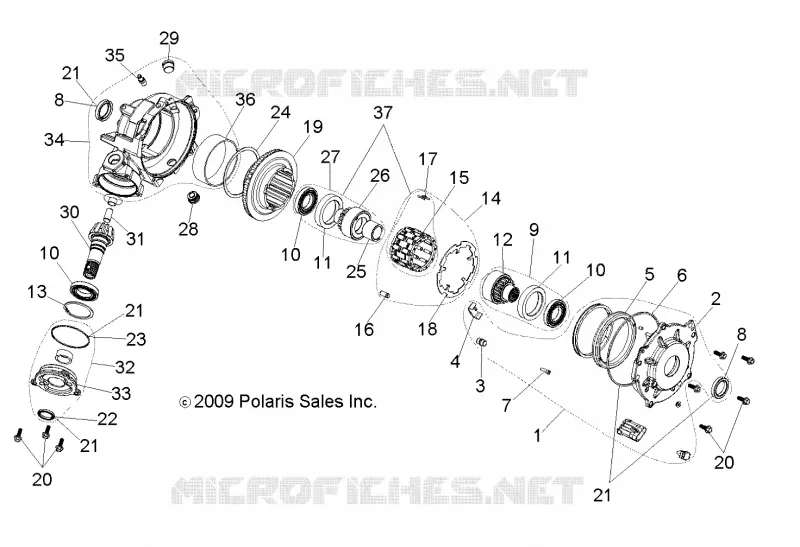

Find the detailed DRIVE TRAIN, FRONT GEARCASE INTERNALS (BUILT 3/04/10 AND BEFORE) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
