FRONT WISHBONES for POLARIS PROSTAR S4 INDY ADVENTURE 137 from 2024

FRONT WISHBONES

1

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

2

PIVOT SHAFT

5140556

$52,49 Unit Price incl. VAT

3

PIVOT BUSHING

5450297

$6,29 Unit Price incl. VAT

4

WASHER 18.2 X 25 X 1.6

7556758

$6,29 Unit Price incl. VAT

5

CONTROL ARM; UPPER; LEFT HAND; GS BLK

1824171067

Not Available

5

CONTROL ARM; UPPER; RIGHT; GS BLK

1824172067

Not Available

6

RING-RET INT 1.125

7710642

$4,19 Unit Price incl. VAT

7

SPHERICAL CONTROL ARM BEARING UPR 31 MM

7061179

$47,24 Unit Price incl. VAT

8

WSHR-M12X25X1.6 THRU HARD ZOD

7556994

$6,29 Unit Price incl. VAT

9

ASM-SPINDLE LH

1824939

$343,34 Unit Price incl. VAT

9

ASM-SPINDLE LH INDY RED

1824939293

Not Available

9

ASM-SPINDLE RH INDY RED

1824940293

Not Available

9

ASM-SPINDLE RH

1824940

$343,34 Unit Price incl. VAT

9

ASM-SPINDLE RH INDSKYBLUE

1824940737

Not Available

9

ASM-SPINDLE LH BLK

1824939067

Not Available

9

ASM-SPINDLE LH INDSKYBLUE

1824939737

Not Available

9

ASM-SPINDLE RH BLK

1824940067

Not Available

10

NUT-HEX-M12X1.5 8 ZOD NYL

7547464

$6,29 Unit Price incl. VAT

11

BUSHING 15.88 X 10.13 X 76.20

5136910

$13,64 Unit Price incl. VAT

12

SKI PIVOT BUSHING

5438460

$27,29 Unit Price incl. VAT

13

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

14

FLAT WASHER

7555806

$1,56 Unit Price incl. VAT

15

SPHERICAL BEARING KIT; 10 MM

2204229

$54,59 Unit Price incl. VAT

16

RING-RETAINING 1.25 ID HSNG

7710539

$4,19 Unit Price incl. VAT

17

SCR-M10X1.5X75 10.9 HCS ZOD

7519015

$10,49 Unit Price incl. VAT

18

CONTROL ARM; LOWER; LEFT SIDE; GS BLK

1824169067

Not Available

18

RIGHT SIDE; LOWER CONTROL ARM; GS BLK

1824170067

Not Available

19

SCREW 10 MMX 1.5 MM X 60 MM

7518941

$7,34 Unit Price incl. VAT

20

BUSHING 10 MM X 17.5 MM X 30

5137360

$7,34 Unit Price incl. VAT

21

SCR-M10X1.5X50 8.8 HX/FL ZOD

7518971

$12,59 Unit Price incl. VAT

22

CONTROL ARM PIVOT SHAFT; LOWER; FRONT

5140557

$52,49 Unit Price incl. VAT

23

HEX FLANGE SCREW; 10 MM X 1.5 MM X 95 MM

7518917

$9,44 Unit Price incl. VAT

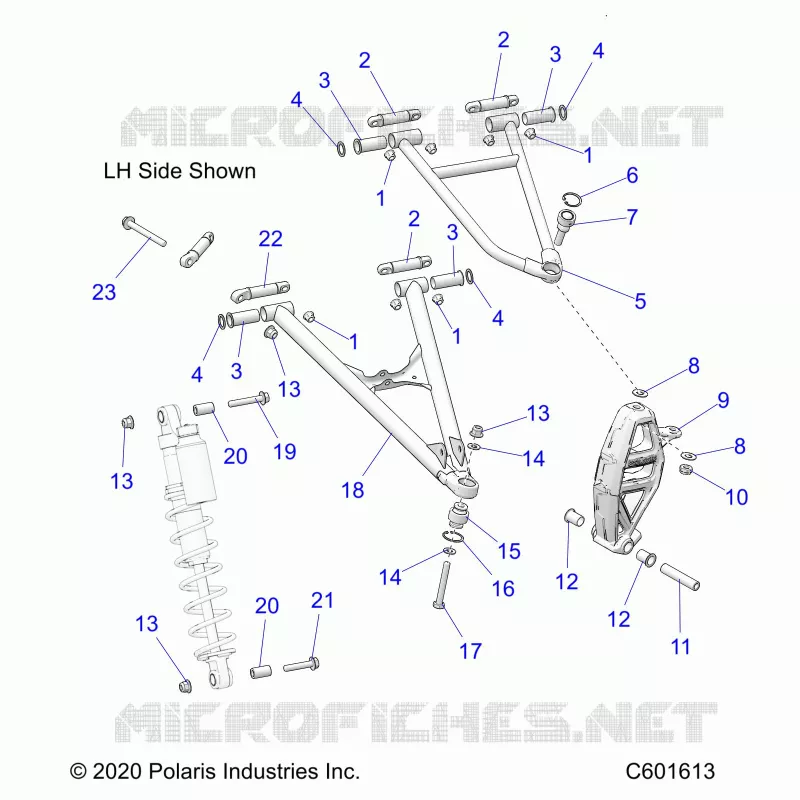

Find the detailed FRONT WISHBONES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
