AIR CONDITIONING, INTERNALS for POLARIS D16B3PD1AJ/B4 BRUTUS HD HDPTO (R03) - D16B4PD1AJ/B4 from 2016

AIR CONDITIONING

DRIVE TRAIN, DRIVE PUMP

AIR CONDITIONING, INTERNALS

1

BOX-HVAC

3120170

9999999

Not Available

2

BLOWER HEATER & A/C

3120765

$593,24 Unit Price incl. VAT

3

COIL; EVAPORATOR

3120766

9999999

Not Available

4

COIL; HEATER

3120767

9999999

Not Available

5

AIR FILTER

3120768

$28,23 Unit Price incl. VAT

6

COVER; FILTER

3120769

9999999

Not Available

7

HOUSING

3120770

9999999

Not Available

8

COVER TOP

3120771

9999999

Not Available

9

COVER; FRONT

3120772

9999999

Not Available

10

COVER; SIDE

3120773

9999999

Not Available

11

COVER

3120774

9999999

Not Available

12

BLOCK; A/C VALVE

3120775

5141451

$246,74 Unit Price incl. VAT

13

KNOB

3120776

9999999

Not Available

14

VALVE; MOTORIZED ASSY

3120777

9999999

Not Available

15

O-RING

3120778

9999999

Not Available

16

CLAMP; HOSE

3120779

9999999

Not Available

17

BUSHING PLASTIC

3120780

9999999

Not Available

18

GROMMET

3120781

9999999

Not Available

19

GROMMET

3120782

9999999

Not Available

20

SCREW

3120783

9999999

Not Available

21

WASHER

3120784

9999999

Not Available

22

SCREW

3120785

9999999

Not Available

23

CLIP

3120786

9999999

Not Available

24

SCREW

3120787

9999999

Not Available

25

BOLT

3120788

9999999

Not Available

26

THERMOSTAT

3120789

9999999

Not Available

27

HOSE; HEATER BULK

3120790

9999999

Not Available

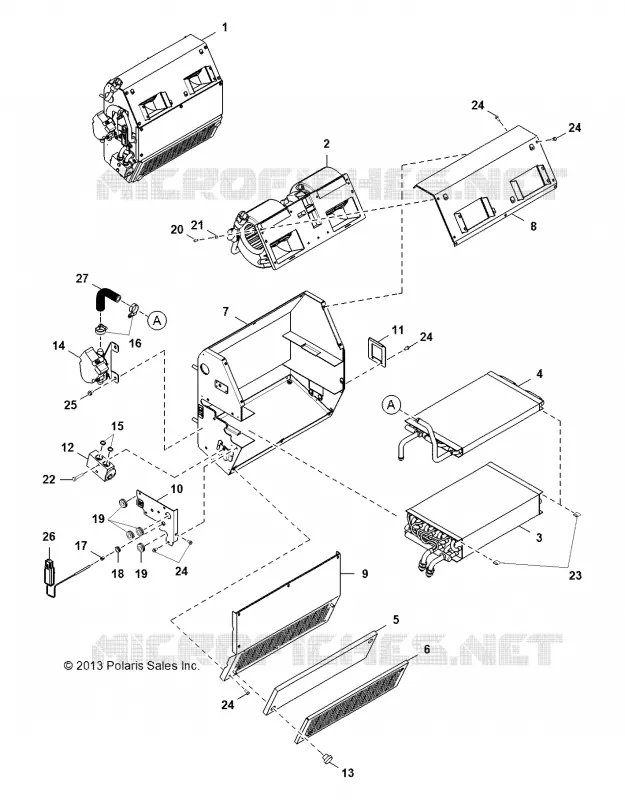

Find the detailed AIR CONDITIONING, INTERNALS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
