Engine displacement
570
2
Year
2016
3
Trim
SPORTSMAN 570 SP EPS QUAD
4
Parts Catalog
REAR CAB, SEAT AND FOOTWELLS
5
Parts Diagram
Parts Catalog
TORSION BAR
by
REAR RACK and HAND GRIPS
REAR CAB, SEAT AND FOOTWELLS
1
1
2
2
2
3
4
5
6
7
7
8
9
10
11
12
13
1
ASM-SEAT BLK
2686515070
Not Available
1
ASM-COVER SEAT WHITE DECAL
2686538
9999999
Not Available
2
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
3
FOOTWELL; LEFT SIDE; GLOSS BLACK
5450523070
Not Available
4
FOOTWELL; RIGHT SIDE; GLOSS BLACK
5450524070
Not Available
5
SCREW
7517230
$2,09 Unit Price incl. VAT
6
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
7
BUMPER SHORT RUBBER
5412067
$7,34 Unit Price incl. VAT
8
CAB RR MT TTNM MET SPORTSMAN 570 PREMIUM
5451305632
Not Available
9
BUMPER-SEAT
5412982
9999999
Not Available
10
SEAT LATCH GROMMET
5415539
$6,29 Unit Price incl. VAT
11
U-TYPE NUT; 1/4-20
7670145
9999999
Not Available
12
SCREW 1/4-20 X .75 TORX
7518280
$2,09 Unit Price incl. VAT
13
TRIM-EDGE FOOTWELL EU
8360153
Not Available

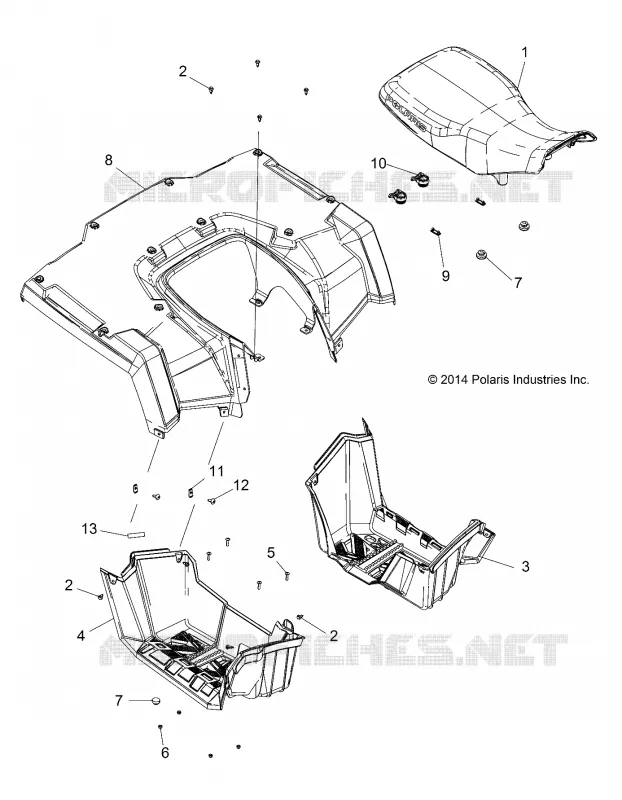

Find the detailed REAR CAB, SEAT AND FOOTWELLS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
