CARBURETOR for POLARIS SCRAMBLER 400 - A99BG38CA from 1999

CARBURETOR

1

TOP ASSEMBLY; MIXING CHAMBER

3130184

$68,24 Unit Price incl. VAT

2

THROTTLE SPRING

3130496

9999999

Not Available

3

THROTTLE PLATE

3130027

$19,94 Unit Price incl. VAT

4

NEEDLE JET

3130476

9999999

Not Available

5

WASHER

3130355

9999999

Not Available

6

VALVE THROTTLE (1.5) Substituted by 3130494 (1.5)

3130751

Not Available

7

GUIDE HOLDER

3130199

$52,49 Unit Price incl. VAT

8

SPRING PLUNGER

3130006

3131764

$18,89 Unit Price incl. VAT

9

PLUNGER ASSEMBLY

3130328

$68,24 Unit Price incl. VAT

10

SPRING THROT.ADJ.

3130436

9999999

Not Available

11

WASHER

3130447

9999999

Not Available

12

SCREW THROTTLE STOP

3130009

9999999

Not Available

13

AIR SCREW

3130011

$36,74 Unit Price incl. VAT

14

SPRING AIR ADJUST

3130012

9999999

Not Available

15

JET PILOT #35(10)

3130066

9999999

Not Available

16

ASM. SCREW & WASHER(10)

3130025

$6,29 Unit Price incl. VAT

17

GUIDE SCREW

3130432

9999999

Not Available

18

O-RING

3130239

9999999

Not Available

19

HEX HEAD MAIN JET

3130126

9999999

Not Available

20

BOWL FLOAT (350)

3130443

9999999

Not Available

21

FLOAT ASSEMBLY

3130430

$73,49 Unit Price incl. VAT

22

CAP

3130237

$8,39 Unit Price incl. VAT

23

FLOAT CHAMBER GASKET

3130020

$31,49 Unit Price incl. VAT

24

NEEDLE VALVE ASM.(2.5)

3130495

9999999

Not Available

25

ARM FLOAT

3130018

$52,49 Unit Price incl. VAT

26

FLOAT PIN

3130361

$18,89 Unit Price incl. VAT

27

WASHER

3130047

$9,44 Unit Price incl. VAT

28

CARBURETOR

3130709

9999999

Not Available

29

RING MAIN JET

3130596

9999999

Not Available

30

NEEDLE JET ASSEMBLY

3130429

9999999

Not Available

31

E RING

3130003

3130508

$12,59 Unit Price incl. VAT

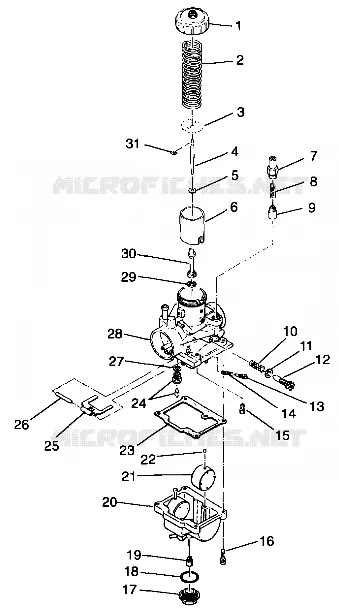

Find the detailed CARBURETOR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
