FRONT SUSPENSION HUB for POLARIS RANGER XP 1000 NORTHSTAR ULTIMATE TRAIL BOSS from 2022

FRONT SUSPENSION CONTROL ARMS

SUSPENSION, FRONT SHOCK MOUNTING

FRONT SUSPENSION HUB

1

FRONT HUB; MEDIUM GLOSS BLACK

5141046067

Not Available

2

ROTOR-BRAKE

5269708

$152,24 Unit Price incl. VAT

3

BOLT FRONT LEFT 10 MM X 1.5 MM X 20 MM

7518978

$7,34 Unit Price incl. VAT

4

WHEEL STUD

7519753

$9,44 Unit Price incl. VAT

5

BALL BEARING; SEALED; 44 X 72 X 33.1

3515090

$108,14 Unit Price incl. VAT

5

SEALED BALL BEARING; 44 X 72 X 33.1

3514924

$73,49 Unit Price incl. VAT

6

CARRIER-BEARING FRONT LH

5143401

$188,99 Unit Price incl. VAT

7

CARRIER-BEARING FRONT RH

5143402

$188,99 Unit Price incl. VAT

8

CASTLE NUT; 18 MM X 1.5 MM

7547337

$3,66 Unit Price incl. VAT

9

AXLE WASHER; M18; 42 X 4.5

7557134

$14,69 Unit Price incl. VAT

10

COTTER PIN

7661404

$9,44 Unit Price incl. VAT

11

INTERNAL RETAINING RING

7710780

$17,84 Unit Price incl. VAT

12

HIGH MISALIGNED BALL JOINT

7082422

7082892

$89,24 Unit Price incl. VAT

13

FLANGE SCREW

7519306

$10,49 Unit Price incl. VAT

14

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

15

BALL-JOINT

7082557

$89,24 Unit Price incl. VAT

16

NUT 12MM X 1.5MM

7547334

$9,44 Unit Price incl. VAT

17

RETAINING RING

7710716

$15,74 Unit Price incl. VAT

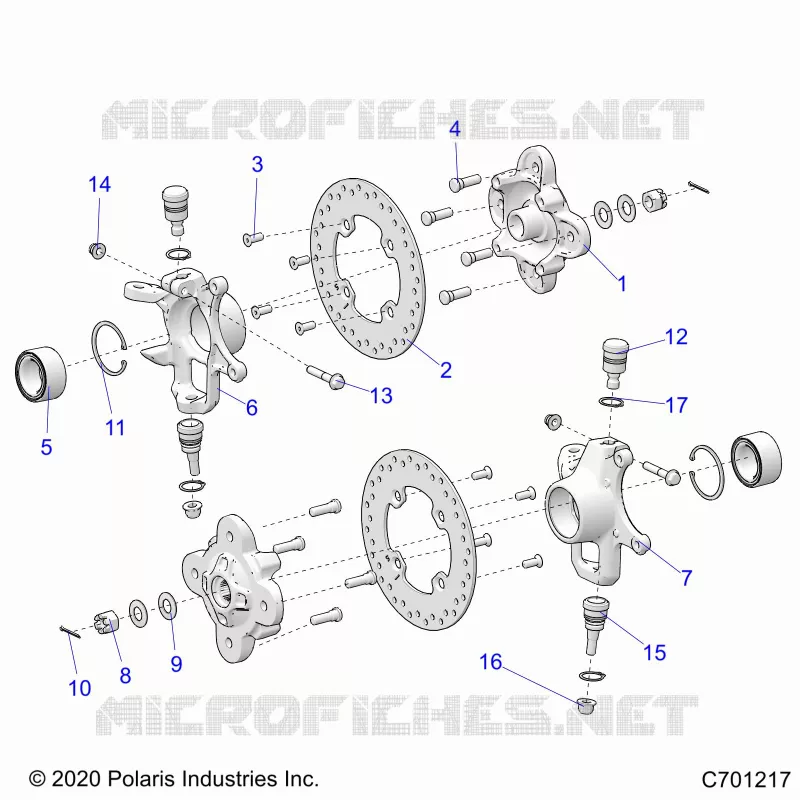

Find the detailed FRONT SUSPENSION HUB POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
