1
Engine displacement
440
2
Year
1993
3
Trim
440 SKS - 0930560
4
Parts Catalog
COOLING SYSTEM 440 / 0930760 AND 440 SKS / 0930560 (4922932293013A)
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION AND SKI 440 / 0930760 AND 440 SKS / 0930560 (4922932293011A)
by
SUSPENSION ASSEMBLY 440 / 0930760 (4922932293019A)
COOLING SYSTEM 440 / 0930760 AND 440 SKS / 0930560 (4922932293013A)
1
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
2
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
3
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
4
PLUG
5431096
$3,66 Unit Price incl. VAT
5
GASKET
5810279
$4,19 Unit Price incl. VAT
6
BOLT
7512240
9999999
Not Available
7
BOTTLE; OVERFLOW
5431054
9999999
Not Available
8
RIVET; (MONOBOLT)
7661620
7661637
$2,09 Unit Price incl. VAT
9
CENTER COOLING EXTERNAL
2511187
9999999
Not Available
10
CLAMP-HOSE
7080225
9999999
Not Available
11
CLAMP; HOSE
7080498
9999999
Not Available
12
RIVET
7661625
7661638
$2,09 Unit Price incl. VAT
13
EXT. LH COOLING
2511209
Not Available
14
GUARD COOLING EXT
5240101
9999999
Not Available
15
HOSE-CROSSOVER
5410350
9999999
Not Available
16
CLAMP-HOSE;
7080233
9999999
Not Available
17
BRACKET
5223985
Not Available
18
HOSE
5410398
Not Available
19
EDGE TRIM; 6 FT; BLACK
5521131
9999999
Not Available
20
HOSE-INLET
5410323
9999999
Not Available
21
HOSE-CROSSOVER
5410324
9999999
Not Available
22
HOSE RETAINER SPRING
7041079
9999999
Not Available
23
CLAMP-HOSE
7080134
9999999
Not Available
24
TAPEFOIL1.50 X 7.50
5810831
9999999
Not Available
25
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
26
CHECK VALVE
7052038
$20,99 Unit Price incl. VAT
27
FILTER WATER LINE
2530010
9999999
Not Available
28
EXT. RH COOLING
2511210
Not Available
29
GROMMET RUBBER
5410021
9999999
Not Available
30
FUEL LINE-50FT.PKG.
2870563
8450003-1525
$136,49 Unit Price incl. VAT
31
FITTING OUTLET
7052042
$13,64 Unit Price incl. VAT
32
ROSEBUD CLIP
4020139
$9,44 Unit Price incl. VAT

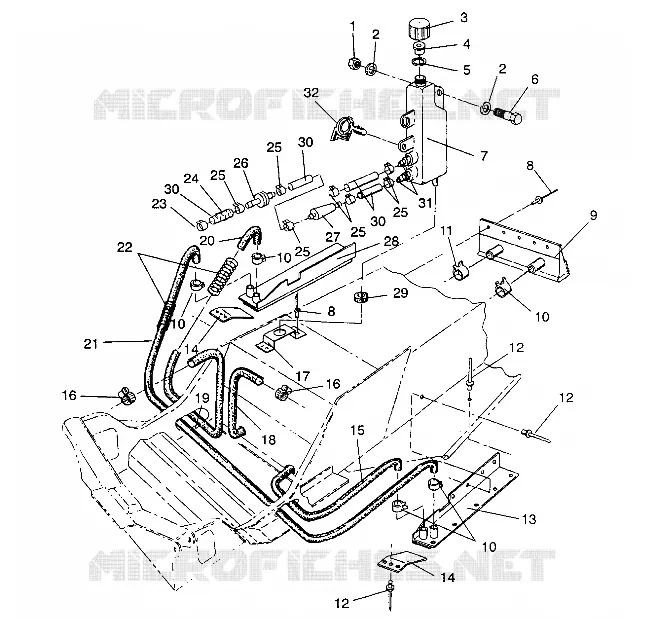

Find the detailed COOLING SYSTEM 440 / 0930760 AND 440 SKS / 0930560 (4922932293013A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
