Engine displacement
500
2
Year
2001
3
Trim
SPORTSMAN 500 DUSE - A01CH50AD
4
Parts Catalog
MAGNETO
5
Parts Diagram
Parts Catalog
OIL FILTER
by
STARTING MOTOR
MAGNETO
1
1
2
3
4
5
6
6
6
6
7
8
9
9
10
10
11
12
13
14
15
16
16
17
18
19
20
20
1
COIL IGNITION
3085228
9999999
Not Available
1
IGNITION COIL
3085227
9999999
Not Available
2
SPARKPLUG CAP
3084980
9999999
Not Available
3
SPARK PLUG
3070175
$7,34 Unit Price incl. VAT
4
O-RING
3084978
9999999
Not Available
5
BEARING; METAL
3084972
9999999
Not Available
6
PLATEASM.
3086820
9999999
Not Available
6
PLATE
3085560
9999999
Not Available
6
PLATE
3086981
9999999
Not Available
6
ASM-PLATE
3086980
9999999
Not Available
7
BOLT AND WASHER ASSEMBLY
3081657
9999999
Not Available
8
OIL SEAL
3084973
9999999
Not Available
9
STATOR
3086821
9999999
Not Available
9
STATOR
3086984
9999999
Not Available
10
ASM. SCREW AND WASHER
3086985
9999999
Not Available
10
SCREW&WASHER ASM.
3085563
9999999
Not Available
11
BAND PULSE
3085554
9999999
Not Available
12
SCREW&WASHER ASM.
3084976
9999999
Not Available
13
COIL PULSER
3085360
9999999
Not Available
14
CLAMP
3084977
9999999
Not Available
15
SCREW&WASHER ASM(10)
3081256
9999999
Not Available
16
CDI-SYSTEM
3086982
9999999
Not Available
16
CDI SYSTEM
3085639
9999999
Not Available
17
NUT
3083073
9999999
Not Available
18
WASHER SPRING(10)
3080077
9999999
Not Available
19
SOLENOID
3085521
4011335
$115,49 Unit Price incl. VAT
20
FLYWHEEL-W/RING GEAR
3086819
9999999
Not Available
20
FLYWHEEL-W/RING GEAR
3086983
9999999
Not Available

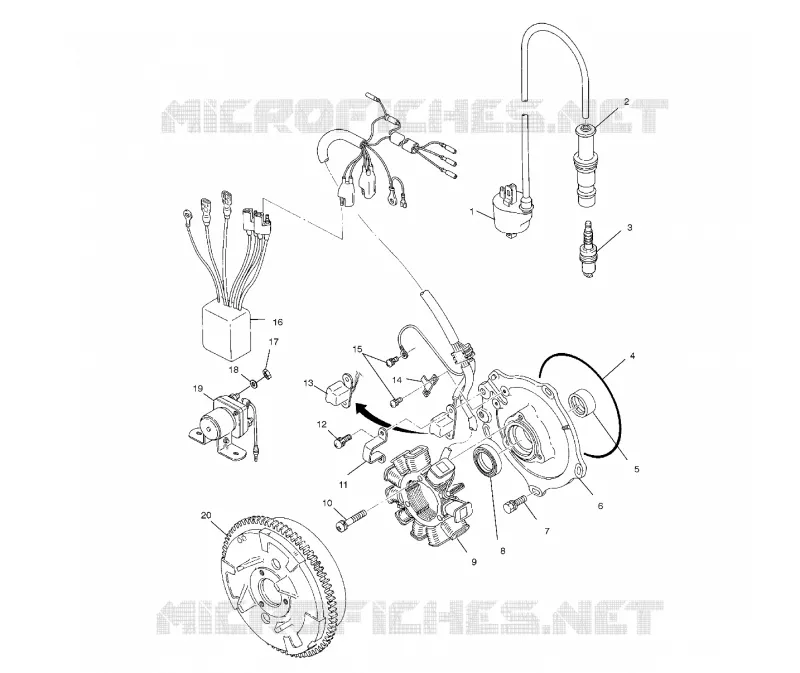

Find the detailed MAGNETO POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
