SWITCHES AND CONTROLS for POLARIS 750 TURBO LX from 2010

SWITCHES AND CONTROLS

1

KIT-SVC H-BRIDGE CONTROLLER

2203639

9999999

Not Available

2

WASHER

7555746

7555904

$1,56 Unit Price incl. VAT

2

SCREW HX/SEMS

7517263

9999999

Not Available

2

NUT NYLOK 10-24 Y

7541925

$1,56 Unit Price incl. VAT

3

SWITCH-AUX SHUT-OFF/POWER

4011280

9999999

Not Available

4

NYLOK NUT

7542122

$2,09 Unit Price incl. VAT

5

ECU-CALIBRATION FST

4012259

9999999

Not Available

6

CAP W/KEY

5410611

9990000

Not Available

7

NUT IGNITION

7547035

$15,74 Unit Price incl. VAT

8

KIT IGN.SWITCH

2200358

2205055

$141,74 Unit Price incl. VAT

9

SCREW .75

7517441

$4,19 Unit Price incl. VAT

10

BUTTON SWITCH HI/LO LH CONTROL

5433291

5438874

$52,49 Unit Price incl. VAT

11

ASM-CONTROL LH MFG

2010290

2010370

$152,24 Unit Price incl. VAT

12

SCREW 1.12

7512078

$2,09 Unit Price incl. VAT

13

SCREW 1.50

7517566

$7,34 Unit Price incl. VAT

14

POD RECEPTACLE MOUNT; 12 VOLT

4010638

$52,49 Unit Price incl. VAT

15

HEATER GRIP; LO/MED/HI; SHORT

2410836

9999999

Not Available

16

ASM-RCA PWR PLUG;W/COVER;DC

2411596

9999999

Not Available

17

BRKT-REV ACT MNT NYLON 66

5436152

9999999

Not Available

18

COUPLER-REVERSE ACTUATOR

5436807

9999999

Not Available

19

ACTUATOR ASSEMBLY

1332477

9999999

Not Available

20

WASHER (10)

7555727

9999999

Not Available

21

SCR-#8X1 PN-PH H/L-Y

7518046

9999999

Not Available

22

SCREW

7512024

$9,44 Unit Price incl. VAT

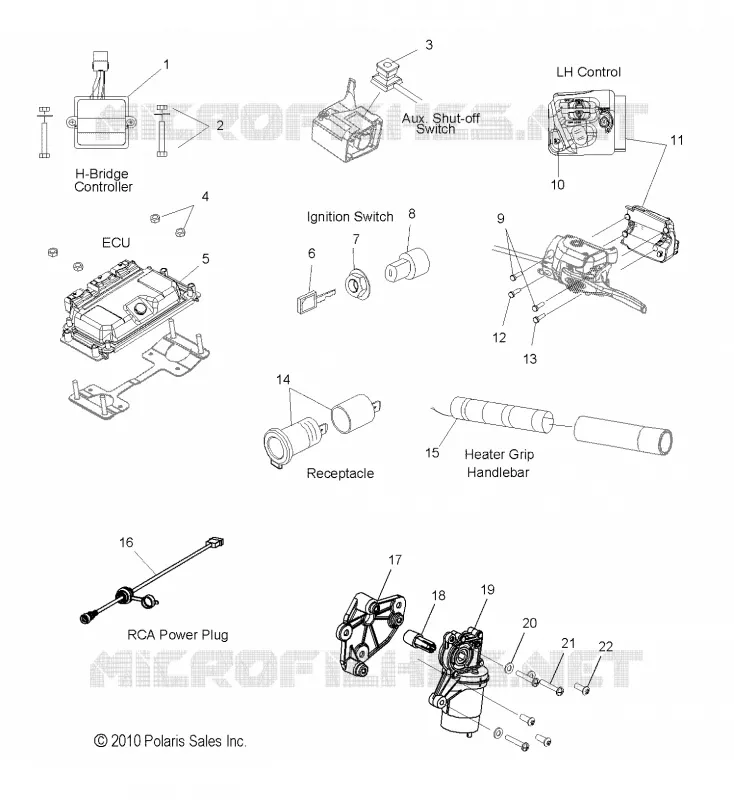

Find the detailed SWITCHES AND CONTROLS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
