DRIVE TRAIN, CLUTCH COVER AND DUCTING for POLARIS RANGER CREW 1000 NORTHSTAR FACTORY CHOICE 49S & 50S from 2020

DRIVE TRAIN, FRONT GEARCASE

DRIVE TRAIN, CLUTCH COVER AND DUCTING

1

CLUTCH COVER SEAL; OUTER

5416207

$68,24 Unit Price incl. VAT

2

BOLT-M6X1.0X20 PH/TX-OLIVE D

7518616

$2,09 Unit Price incl. VAT

3

SCREEN BRACKET; BELT

5264258

$52,49 Unit Price incl. VAT

4

INNER CLUTCH COVER

5142591

$414,74 Unit Price incl. VAT

5

TRANSJOINT BRACKET; MAG; MACHINED

5139822

5144809

$89,24 Unit Price incl. VAT

6

INLET CLUTCH DUCT

5416355

5418049

$167,99 Unit Price incl. VAT

7

DUCT OUTLET CLUTCH

5416141

5418050

$167,99 Unit Price incl. VAT

8

HOSE ADAPTOR BOOT

5454194

$47,24 Unit Price incl. VAT

9

INLET CLUTCH DUCT SEAL PLATE

5633909

$68,24 Unit Price incl. VAT

10

CLUTCH COVER ASSEMBLY; OUTER

2637066

$351,74 Unit Price incl. VAT

10

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

11

O-RING SEAL; .128 X 7.895

5415647

$3,14 Unit Price incl. VAT

12

DRAIN PLUG; 9/16-18

5454915

$10,49 Unit Price incl. VAT

13

O-RING; 2.25 X 2.625 X .21; FKM

5416417

$25,19 Unit Price incl. VAT

14

WELD-OUTLET DUCT;MOUNT

5634529

5634514

$52,49 Unit Price incl. VAT

15

DECAL-BELT CAUTION/CHECK

7177469

Not Available

16

JOINT HOSE

5416135

$83,99 Unit Price incl. VAT

17

CLUTCH INLET TO TUNNEL HOSE

5416170

$115,49 Unit Price incl. VAT

18

CLAMP-HOSE SLOTTED;75-90 DIA

7082314

$19,94 Unit Price incl. VAT

19

CLAMP-HOSE SLOTTED;89-100 DIA

7081969

$19,94 Unit Price incl. VAT

20

SCREW 6 MM X 1.0 MM X 25 MM

7519754

$7,34 Unit Price incl. VAT

21

HEX HEAD FLANGE BOLT; 10 MM X 45 MM

7518531

$9,44 Unit Price incl. VAT

22

SCR-TXBH-M12X1.75X110 8.8 SPC

7520945

$14,69 Unit Price incl. VAT

23

SCR-TXBH-M12X1.75X245 8.8 SPC

7520946

$25,19 Unit Price incl. VAT

24

SCR-TXBH-M10X1.5X45 8.8ZOD P30

7520323

$10,49 Unit Price incl. VAT

25

HEX FLANGE NUT; 12 MM X 1.75 MM

7547441

$9,44 Unit Price incl. VAT

26

WSHR FLAT INN DIA 10.5 OUT DIA

7556155

$9,44 Unit Price incl. VAT

27

O-RING 0.489 X 0.629 X 0.070

5416606

$6,81 Unit Price incl. VAT

28

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

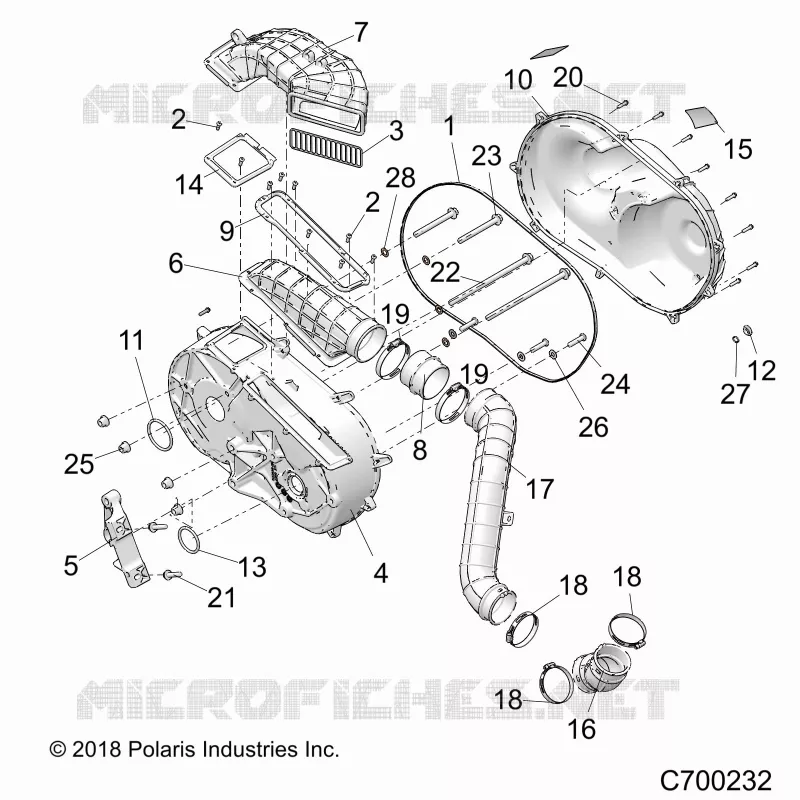

Find the detailed DRIVE TRAIN, CLUTCH COVER AND DUCTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
