FLOOR FENDERS for POLARIS RANGER 4X4 800 EFI CREW - R10WH76AG/AH/AR/AV/WY76AW/AZ from 2010

FLOOR FENDERS

1

SCREW

7517685

$3,14 Unit Price incl. VAT

2

DEFLECTOR-HEAT LOWER BLK

5438367070

Not Available

3

MAIN FLOOR ASSEMBLY; ; GLOSS BLACK

2633828070

Not Available

4

FOIL-FLOOR

5813563

9999999

Not Available

5

FOAM FLOOR

5813350

9999999

Not Available

6

FOAM-FLOOR BACK;LH

5813398

9999999

Not Available

7

FOAM-FLOOR BACK;RH

5813399

$104,99 Unit Price incl. VAT

8

FLOOR-REAR RANGER BLK

5437571070

Not Available

9

FLOOR; REAR; FRONT; GLOSS BLACK; CREW

5438097070

Not Available

10

TUFLOK RIVET

7661855

$2,09 Unit Price incl. VAT

11

BOX-STORAGE BLK

5438174070

Not Available

12

COMPARTMENT PLUG

5412981

5418084

$6,29 Unit Price incl. VAT

13

FENDER REAR LEFT GLOSS BLAC

5438175070

Not Available

14

SKID PLATE; GLOSS BLACK

5438572070

Not Available

15

PANEL-WHEEL WELL;RH;BLK

5437691070

Not Available

16

DRIVE SHAFT COVER; GLOSS BLACK

5437657070

Not Available

17

SKID PLATE WASHER

7556065

$8,39 Unit Price incl. VAT

18

SCREW

7517386

$2,09 Unit Price incl. VAT

19

SKID PLATE GLOSS BLACK

5438073070

Not Available

20

FENDER; FRONT; RIGHT; GLOSS BLACK; CREW

5438057070

Not Available

21

PANEL-WHEEL WELL;LH;BLK

5437690070

Not Available

22

FENDER W/ ROCKER FRONT LEFT GLOSS BLACK

5438056070

Not Available

23

SPEED NUT

7670057

$2,09 Unit Price incl. VAT

24

FENDER REAR RIGHT GLOSS BLA

5438176070

Not Available

25

FLOOR; REAR; GLOSS BLACK; CREW

5438055070

Not Available

26

STORAGE BOX; GLOSS BLACK

5437629070

Not Available

27

DEFLECTOR-HEAT UPPER BLK

5438368070

Not Available

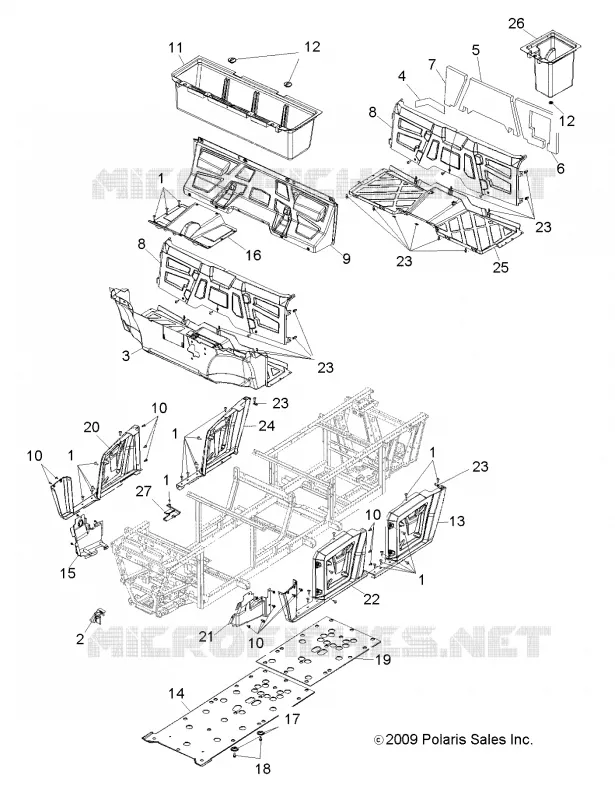

Find the detailed FLOOR FENDERS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
