SUSPENSION, SHOCK MOUNTING, REAR SUSP. for POLARIS 850 INDY VR1 129 from 2023

SUSPENSION, SHOCK MOUNTING, REAR SUSP.

1

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

2

BUSHING 10 MM X 17.5 MM X 30

5137360

$7,34 Unit Price incl. VAT

3

SCR-M10X1.5X50 8.8 HX/FL ZOD

7518971

$12,59 Unit Price incl. VAT

4

SHAFT-SHOCK

5335719

$26,24 Unit Price incl. VAT

5

SCR-M10X1.5X65 8.8 HX/FL ZOD

7518960

$6,29 Unit Price incl. VAT

6

HEX NUT; 8 MM X 1.25 MM

7547480

$4,19 Unit Price incl. VAT

7

PULL ROD BUSHING

5142128

$15,74 Unit Price incl. VAT

8

HEX FLANGE SCREW; 8 MM X 1.25 MM X 80 MM

7519217

$3,14 Unit Price incl. VAT

9

BUSHING-M16ODX8.4IDX24.1 LONG

5142331

$11,54 Unit Price incl. VAT

10

SCR-M8X1.25X40 10.9 HX/FL ZOD

7518954

$10,49 Unit Price incl. VAT

11

WASHER-FL 8.4X16.0X.91 HRD ZOD

7557059

$6,29 Unit Price incl. VAT

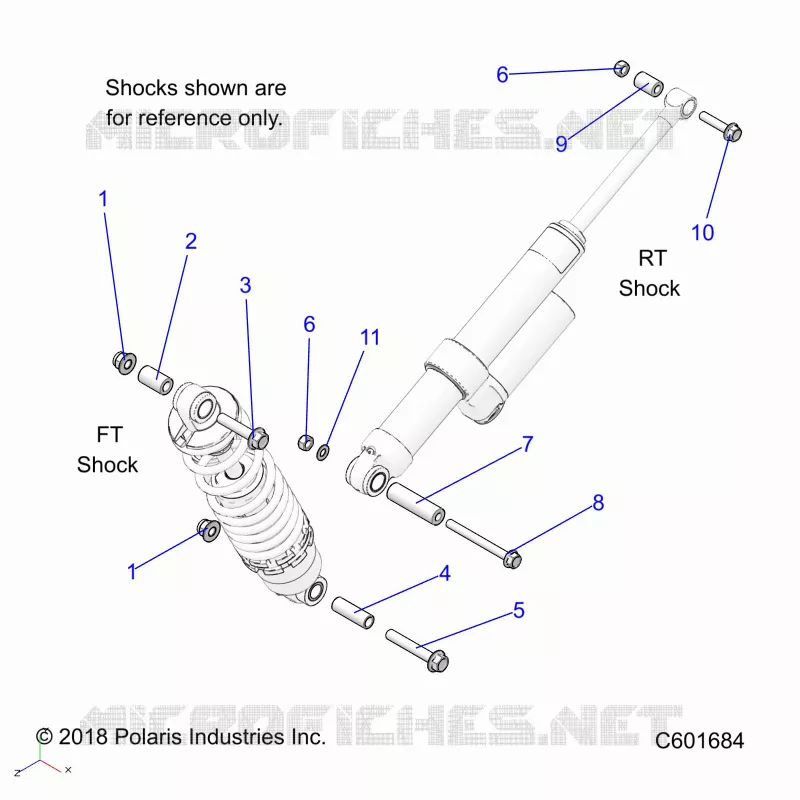

Find the detailed SUSPENSION, SHOCK MOUNTING, REAR SUSP. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
