FRONT SUSPENSION AND SKI for POLARIS XLT TOURING

RIVET

7661637

$2,09 Unit Price incl. VAT

BRACE BLKHD/STRG BLK.

5211589067

Not Available

STRAP SPACER TOP

5211344

$13,64 Unit Price incl. VAT

STRAP SPACER BOTTOM

5211345

9999999

Not Available

BOLT

7512582

9999999

Not Available

BOLT

7512684

9999999

Not Available

NUT; NYLOC

7542453

7542439

$2,09 Unit Price incl. VAT

BOLT(10)

7515515

9999999

Not Available

BAR SWAY 5/8(X-12)BLK

5224748067

Not Available

BUSHING SWAYBAR 5/8

5432885

9999999

Not Available

RIVET

7621433

$2,09 Unit Price incl. VAT

ARM STRG BLK

5241560067

Not Available

NUT; FLEXLOC B

7542456

9999999

Not Available

RIVET(50)

7661643

7661130

$2,09 Unit Price incl. VAT

SWAYBAR SLIDE; 5/8

5432331

9999999

Not Available

WASHER

7555721

$2,09 Unit Price incl. VAT

BUSHING TUBE

5010310

9999999

Not Available

RUBBER PIVOT

5410872

9999999

Not Available

BOLT

7512557

9999999

Not Available

ARM;TRLG;LH

1822384

9999999

Not Available

ARM;TRLG;RH

1822386

9999999

Not Available

STOP LH STRG BLK.

5241569067

Not Available

STOP RH STRG BLK.

5241570067

Not Available

FLANGE BUSHING

3573909

$4,19 Unit Price incl. VAT

BUSHING

7556509

$3,14 Unit Price incl. VAT

FLANGED BUSHING

3574208

$6,29 Unit Price incl. VAT

FITTING LUBE.W/BALL CK.(10)

7080306

$5,76 Unit Price incl. VAT

SPINDLE SHAFT; MEDIUM GLOSS BLACK

6230102067

Not Available

SUPPORT SKI RUBBER MEDIUM GLOSS BLACK

5241912067

Not Available

FLANGE NUT

7542321

$2,09 Unit Price incl. VAT

SKI ASMCOMP(PLASTIC)

1820506

9999999

Not Available

SKAG CARBIDE 3"OF120 DEGREE

2871815

9999999

Not Available

SCREW

7512596

9999999

Not Available

WASHER

7555851

7555832

$4,19 Unit Price incl. VAT

BOLT

7515514

$13,64 Unit Price incl. VAT

WASHER

7555832

$4,19 Unit Price incl. VAT

BOLT

7515307

$7,34 Unit Price incl. VAT

TOE PLASTIC SKI

5432209

5434165-070

$73,49 Unit Price incl. VAT

NUT; FLEXLOC

7542452

7542411

$6,29 Unit Price incl. VAT

PIN; COTTER

7661209

7661205

$1,56 Unit Price incl. VAT

NUT; CASTLE

7542457

7542438

$3,14 Unit Price incl. VAT

STOP RUBBER

5411094

5412018

$47,24 Unit Price incl. VAT

SHOCK GAS IFS SELECT

7041503

9999999

Not Available

RETAINER SPRING BODY THREADED

1500063

9999999

Not Available

ADJUSTABLE PRELOAD SPRING RING

5431734

$104,99 Unit Price incl. VAT

SPRING-COMP IFS 10.75/100 BLK

7041551067

Not Available

RETAINER SPRING SLOTTED CAST

5630580

5020618

$36,74 Unit Price incl. VAT

BUSHING PIVOT

5010158

$27,29 Unit Price incl. VAT

FITTING LUBRICATION THREADED(1

7080433

$2,09 Unit Price incl. VAT

BOLT

7515491

7515433

$3,14 Unit Price incl. VAT

BUSH; RADIUS ROD PIVOT; OUT

5431486

9999999

Not Available

RADIUS ROD BUSHING

5010127

$12,59 Unit Price incl. VAT

ROD RAD LOWER BLK.

1822383067

Not Available

NUT-JAM(10)

7542711

$4,19 Unit Price incl. VAT

ROD END

7060162

7061052

$99,74 Unit Price incl. VAT

BRKT PANSUPPORT BLK.

5222866067

Not Available

WASHER

7555904

$1,56 Unit Price incl. VAT

RIVET

7621467

$2,09 Unit Price incl. VAT

NUT FLEXOC;

7542703

9999999

Not Available

NUT FLEXLOCK

7542503

9999999

Not Available

PIVOT BUSHING

5411095

$27,29 Unit Price incl. VAT

ROD RAD UPPER FIXED

1822510

9999999

Not Available

RADIUS ROD PIVOT BUSHING; 3/8

5411099

9999999

Not Available

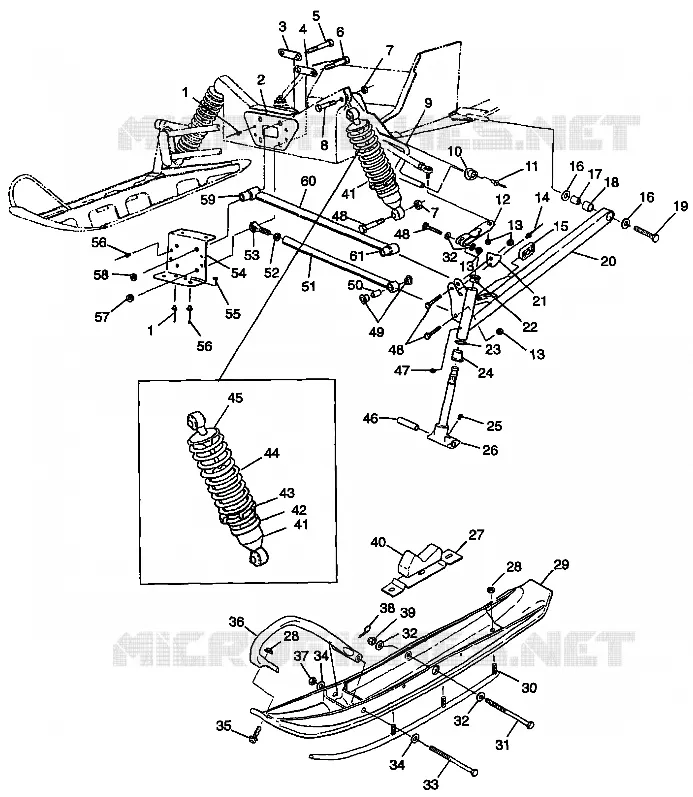

Find the detailed FRONT SUSPENSION AND SKI POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
