Engine displacement
900
2
Year
2017
3
Trim
RANGER XP 900 ALL OPTIONS
4
Parts Catalog
ENGINE, COOLING SYSTEM
5
Parts Diagram
Parts Catalog
ENGINE, BREATHER
by
ENGINE, VALVE COVER
ENGINE, COOLING SYSTEM
1
2
3
4
5
6
7
7
17
9
10
11
12
13
14
15
15
15
15
15
15
16
16
17
18
19
20
21
22
23
24
25
26
1
RADIATOR MOUNT BRACKET; LEFT; BLACK
5256596329
Not Available
2
RADIATOR ASSEMBLY
1240663
$1 244,24 Unit Price incl. VAT
3
CORE RADIATOR ASSEMBLY
1240664
$876,74 Unit Price incl. VAT
4
CAP
1240694
$73,49 Unit Price incl. VAT
5
FAN ASSEMBLY
2411816
$645,74 Unit Price incl. VAT
6
BOLT 6 MM X 15 MM
7519585
$17,84 Unit Price incl. VAT
7
GROMMET
7052028
$11,54 Unit Price incl. VAT
8
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
9
FUEL LINE; 1/4 ID
84500031525
Not Available
10
COOLANT TUBE; 1 IN
5137818
$68,24 Unit Price incl. VAT
11
HOSE-UPPER RAD
5414289
$167,99 Unit Price incl. VAT
12
RADIUS HOSE; LOWER
5414290
$83,99 Unit Price incl. VAT
13
ENGINE HOSE; INNER
5414291
$83,99 Unit Price incl. VAT
14
ENGINE HOSE; OUT
5414292
$141,74 Unit Price incl. VAT
15
SPRINGBAND CLAMP; 35/12
7080844
$19,94 Unit Price incl. VAT
16
HOSE CLAMP; 25-40 MM
7081192
$14,69 Unit Price incl. VAT
17
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
18
CLIP
7670102
$4,19 Unit Price incl. VAT
19
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
20
CAP PLUG9X(GRN) FLEX TEMP(10)
5433774
$10,49 Unit Price incl. VAT
21
GASKET
5810279
$4,19 Unit Price incl. VAT
22
SCREW #14 X 1 HI/LO
7518158
$9,44 Unit Price incl. VAT
23
RADIATOR SHROUD; FRONT; GLOSS BLACK
5454760070
Not Available
24
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
25
SURGE TANK
5439202
$178,49 Unit Price incl. VAT
26
RADIATOR MOUNT BRACKET; RIGHT; BLACK
5256597329
Not Available

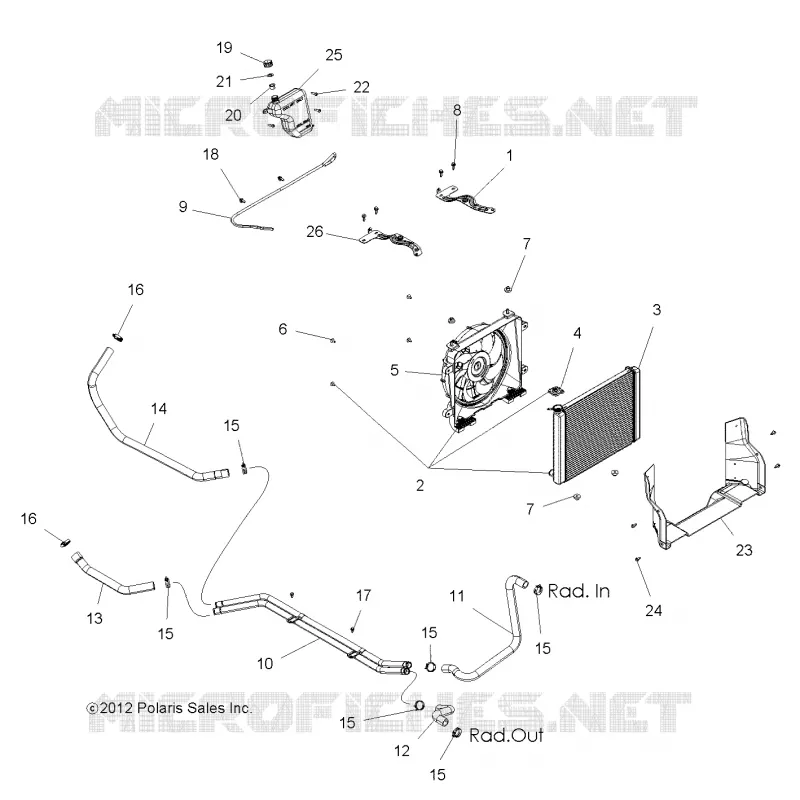

Find the detailed ENGINE, COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
